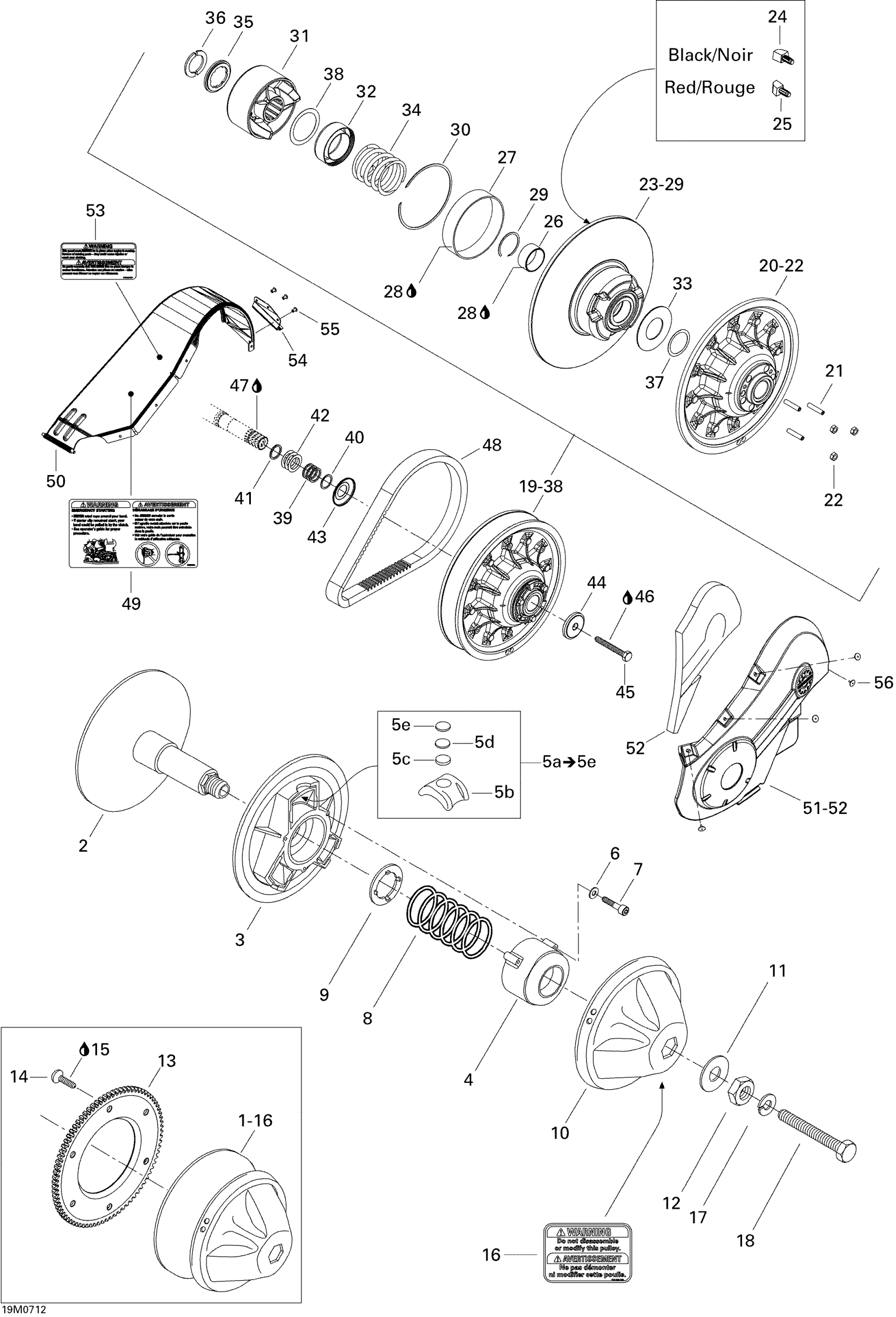

Ski-Doo Expedition Sport 550F, 2007 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INNER FLANGE - Call your local BRP dealership

415128975

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

4

SPRING COVER - Call your local BRP dealership

415128602

Unavailable

5a

Unit | Includes 5 to 8, CDN, USA

415129219

Unavailable

5b

CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA

417118100

Unavailable

5c

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417120400

Unavailable

5d

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417114400

Unavailable

5e

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

Unavailable

6

WASHER - Call your local BRP dealership

420245370

Unavailable

7

SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership

415128606

Unavailable

8

Spring, Violet-Yellow-Green

415129220

Unavailable

9

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

10

Cap

415128609

Unavailable

11

WASHER - Call your local BRP dealership

415128610

Unavailable

12

NUT - Call your local BRP dealership

417118300

Unavailable

13

Ring Gear

417222833

Unavailable

14

Hex. Screw M8 X 16

236281684

Unavailable

15

Loctite 271, 10 ml

293800005

Unavailable

16

Security Label

516001726

Unavailable

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

FIXED FLANGED ASS'Y - Call your local BRP dealership | Includes 22 to 32

417127024

Unavailable

21

Screw Socket Set DIN.913 S.Grip

250000408

Unavailable

22

Hex. Flange Nut M6

233061414

Unavailable

23

Sliding Flange Ass'y

417127026

Unavailable

24

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

25

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

Unavailable

26

BUSHING - Call your local BRP dealership

417126901

Unavailable

27

BUSHING - Call your local BRP dealership

417126902

Unavailable

28

Loctite, Black Max, 3 ml

413408300

$24.58

29

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

30

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

31

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

32

GUARD - Call your local BRP dealership

417126381

Unavailable

33

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

34

Spring

417127061

$45.35

35

SPACER - Call your local BRP dealership

417126733

Unavailable

36

HALF KEY - Call your local BRP dealership

417126734

Unavailable

37

SHIM - Call your local BRP dealership

504112300

Unavailable

38

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

39

Spacer

417300252

$5.17

40

Spacer

417300265

$2.12

41

Spacer

417300252

$5.17

42

Shim

504112000

$6.05

43

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

44

Strength Washer

517302322

$11.09

45

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

46

Loctite 243, 10 ml

293800060

$20.77

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Drive Belt

415060600

Unavailable

49

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

50

BELT GUARD - Call your local BRP dealership

417300269

Unavailable

51

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

52

Foam

417300246

Unavailable

53

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

54

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

55

Avex Rivet

390909200

Unavailable

56

Pop Rivet 3/16"

293150103

Unavailable
