- Expedition Sport 550F, 2007
Drive System

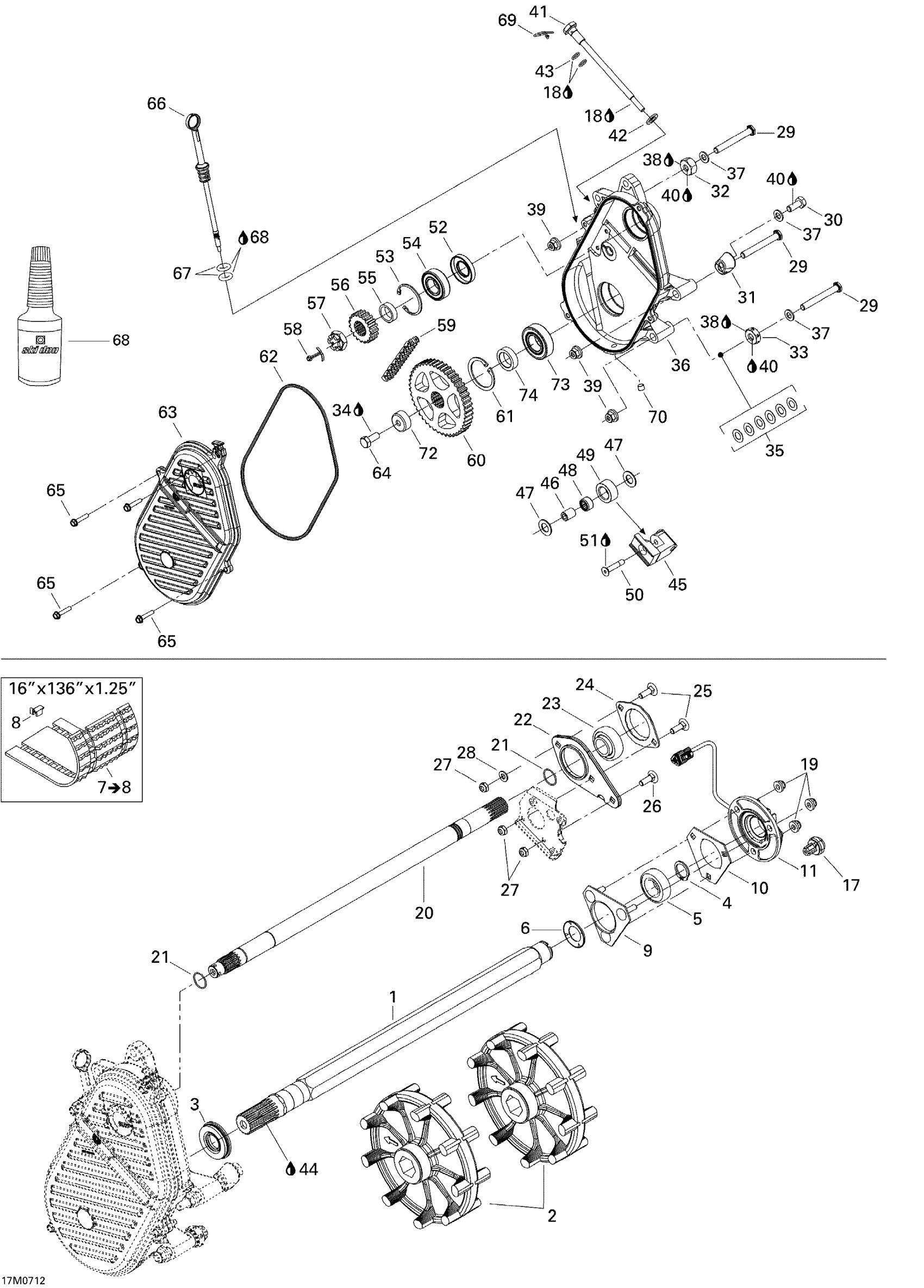

Ski-Doo Expedition Sport 550F, 2007 Drive System Diagram
#
2
SPROCKET, 9 TEETH - Call your local BRP dealership
504151781
Unavailable
3
Oil Seal Ass'y
504151918
Unavailable
4
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
5
Ball Bearing
293350060
Unavailable
6
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
7
Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9
504152456
Unavailable
9
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
10
FLANGE - Call your local BRP dealership
501025000
Unavailable
11
Rotation Sensor
504152345
Unavailable
17
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
18
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
COUNTER SHAFT - Call your local BRP dealership
504152292
Unavailable
21
Circlip
371910000
Unavailable
22
SPACER - Call your local BRP dealership
504151968
Unavailable
23
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
24
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
26
Carriage Bolt, M8 X 20
207782044
Unavailable
27
Hex. Elastic Stop Nut M8
232581414
Unavailable
28
Flat Washer 8 mm
234081410
Unavailable
29
HEX. SCREW M10 X 80 - Call your local BRP dealership
250000151
Unavailable
30
Hex. Screw M10 X 25
207102544
Unavailable
31
Spacer
504152252
Unavailable
32
Spacer
504083800
Unavailable
33
SPACER - Call your local BRP dealership
504152237
Unavailable
34
Loctite 271, 10 ml
293800005
Unavailable
35
WASHER - Call your local BRP dealership
504073700
Unavailable
36
CHAINCASE - Call your local BRP dealership
504152481
Unavailable
38
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
41
ADJUSTMENT SCREW - Call your local BRP dealership
732601314
Unavailable
42
Flat Washer 10 mm
234001410
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
Chain Tensioner
504151951
Unavailable
46
SPACER - Call your local BRP dealership
504080200
Unavailable
47
WASHER - Call your local BRP dealership
504080300
Unavailable
49
ROLLER - Call your local BRP dealership
414531300
Unavailable
50
SCREW - Call your local BRP dealership
732601144
Unavailable
51
Loctite 271, 10 ml
293800005
Unavailable
52
SEAL - Call your local BRP dealership
504151927
Unavailable
53
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
54
Ball Bearing
293350115
Unavailable
55
SHIM - Call your local BRP dealership
504147200
Unavailable
57
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
58
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
59
DRIVE CHAIN, 72 LINKS - Call your local BRP dealership
504151830
Unavailable
60
43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe
504148500
Unavailable
61
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
63
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
64
Hex. Screw M10 X 25
207102544
Unavailable
66
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
67
O-RING - Call your local BRP dealership
414969400
Unavailable
68
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
69
Hair Pin
414575600
Unavailable
70
Plug 1/8”-27
504151921
Unavailable
72
CAP - Call your local BRP dealership
504152460
Unavailable
73
Ball Bearing
504152005
Unavailable
74
SHIM - Call your local BRP dealership
504152649
Unavailable
