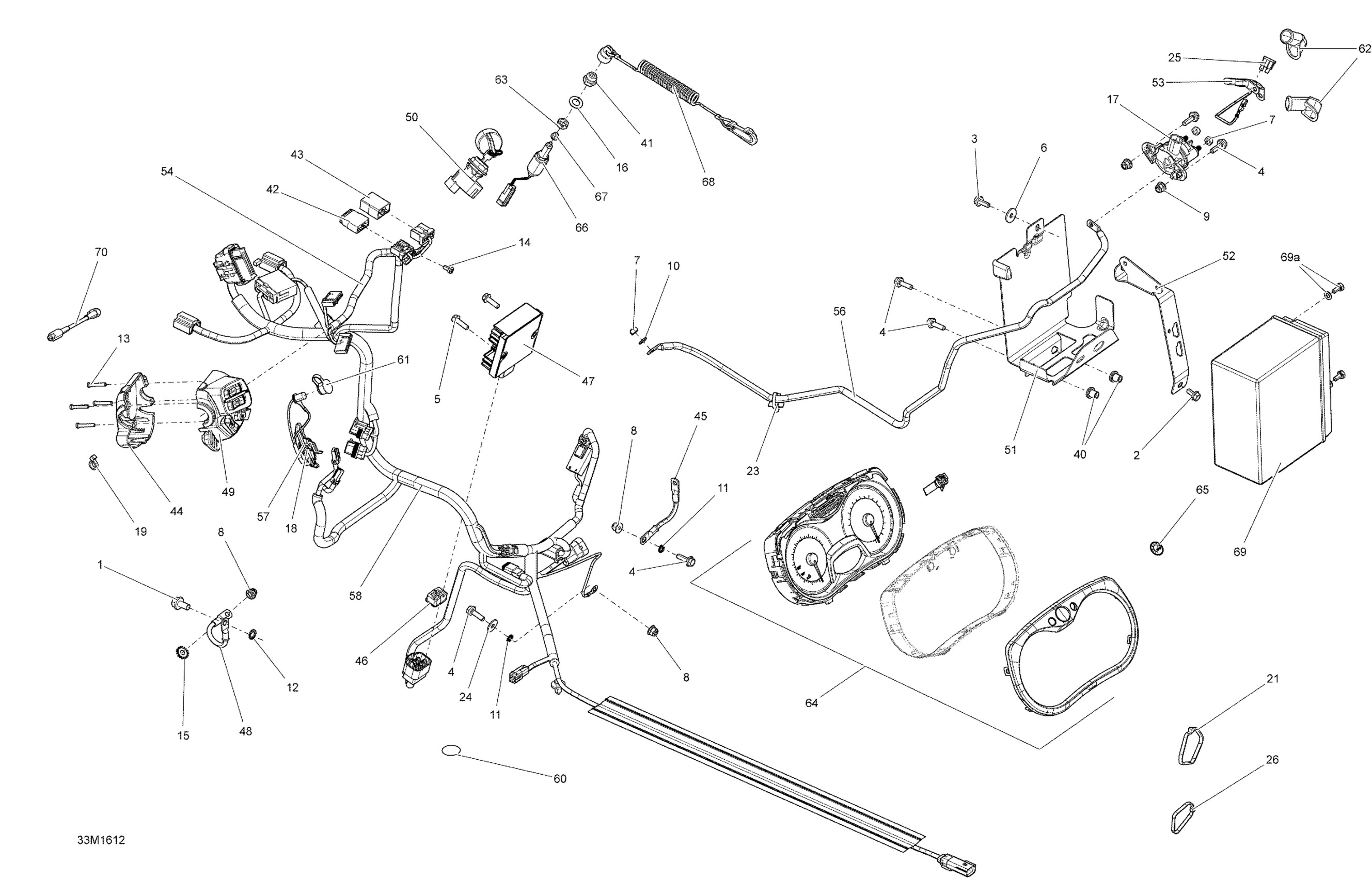

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Electrical System Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

2

Hex. Flange Screw M6 X 12

207661244

Unavailable

3

Hex. Flange Screw M6 X 16

207661644

Unavailable

4

Hex. Flange Screw M6 X 20

207662044

Unavailable

5

Hex. Flange Screw M6 X 20

210262040

Unavailable

6

Flat Washer

224061201

Unavailable

7

Elastic Stop Nut M6

232561434

$1.55

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

10

Flat Washer 6 mm

234061410

Unavailable

11

External Serrated Lock Washer 6 mm

234461608

Unavailable

12

Serrated Lock Washer 8 mm

234481608

Unavailable

13

Torx Screw #8-18

250000263

$1.02

14

Pan Screw Forming, 7500C

250000690

Unavailable

15

Lock Washer Serrated M6

250200041

Unavailable

16

Flat Washer

250200084

$2.76

17

Starter Relay

278003012

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$0.83

19

Tie Wrap 142 mm

293750002

Unavailable

21

Tie Wrap 368 mm

293750008

$0.85

23

Tie-Rap 173 mm

293750009

Unavailable

24

Flat Washer

250200082

Unavailable

25

Fuse, 30 Amperes

410917200

$3.22

26

Tie-Rap 180 mm

414115200

$0.09

40

Insert

293450275

Unavailable

42

Male Terminal Housing, 6 Circuits

515175662

Unavailable

43

Male Terminal Housing, 8 Circuits

515175817

Unavailable

44

Switch Housing Plate

515175926

Unavailable

45

Ground Wire

515176358

Unavailable

46

Lock

515176681

Unavailable

47

Voltage Regulator

515176699

Unavailable

48

Ground Wire

515176745

Unavailable

49

LH Housing

515177021

Unavailable

50

Ignition Swirch

515177063

Unavailable

51

Battery Support

515177264

Unavailable

52

Battery Strip

515177266

Unavailable

53

Fuse Battery Wire

515177576

Unavailable

54

Steering Wiring Harness

515177609

Unavailable

56

Battery/Starter Wire

515177730

Unavailable

57

Visor Harness

515177837

$32.28

58

Main Harness

515177979

Unavailable

60

Adhesive Patch

518325560

Unavailable

61

Cap

572103300

$9.65

62

Protector Cap

710000495

Unavailable

63

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

64

Speedometer Button | XTP

415129355

Unavailable

64

Lens | XTP

415129349

Unavailable

64

Indicator | Includes 10 to 10c

515177279

Unavailable

64

Gauge Ring

415129348

Unavailable

65

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

66

Brake Switch

515175653

$15.57

67

Plunger Cap

570151100

$10.14

68

Cap Ass'y

515178283

$37.66

69

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

69a

Battery Bolt Kit

250000282

$2.95
