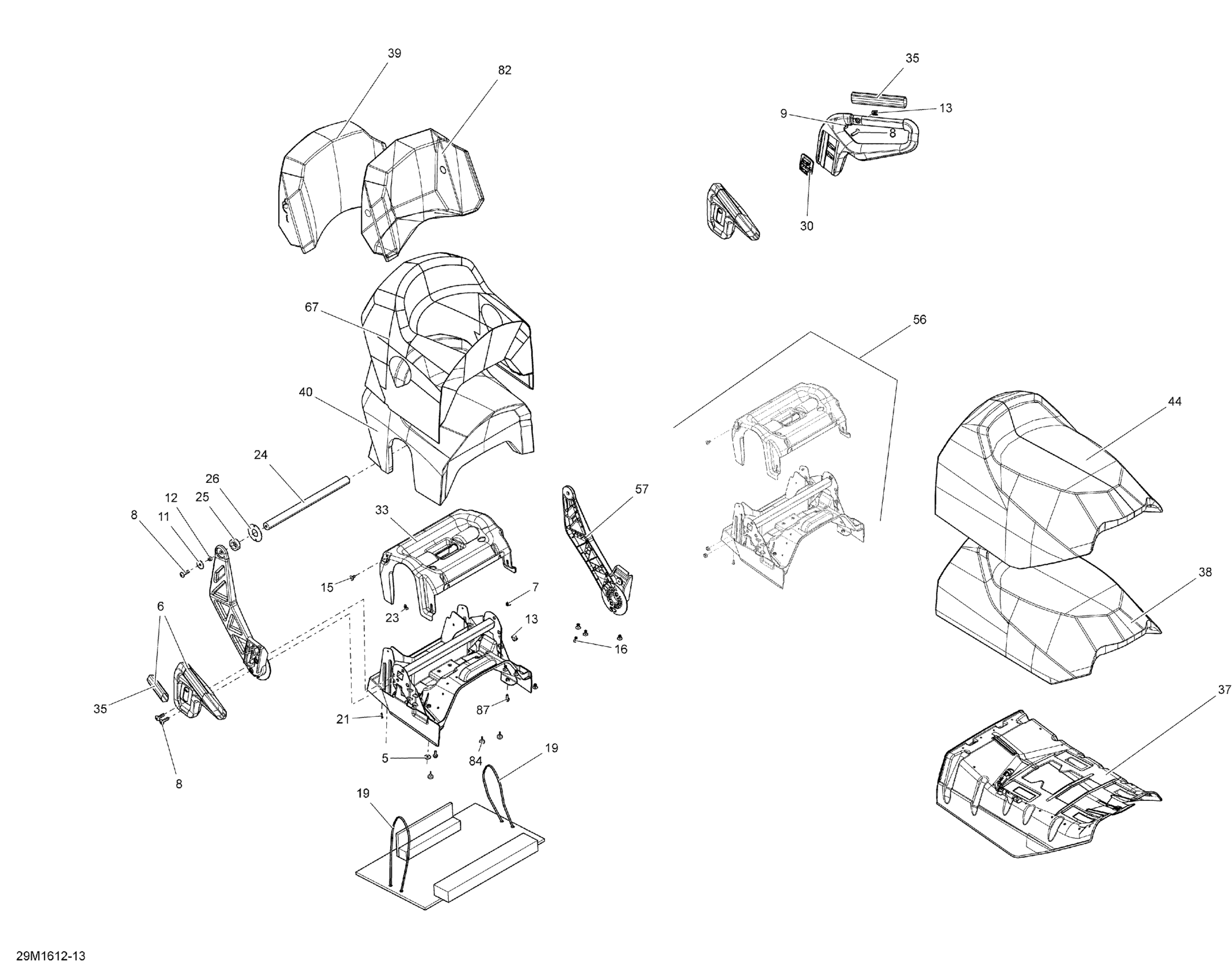

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Seat Diagram
#
Description
Price
5
Flat Washer
224061201
Unavailable
6
RH Handle Ass'y | Includes 140 to 140,02
510005851
Unavailable
6
LH Handle Ass'y | Includes 150a to 150a4
510006713
Unavailable
7
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
8
Hex Torx Truss M8 X30
250000745
Unavailable
8
Hex Torx Truss M8 X30
250000745
Unavailable
9
Torx Truss Screw M6 X 16
250000721
Unavailable
11
Flat Washer 8 mm
250200128
Unavailable
12
Spacer
271000558
Unavailable
13
Nut Welded, M6
293100003
Unavailable
21
Pop Rivet 3/16"
390402300
Unavailable
24
Upper Backrest Axle
510004377
Unavailable
25
Rubber Shim
510004378
Unavailable
26
Washer
510004379
Unavailable
33
Foam Support
510004423
Unavailable
35
Reinforcement Handle
510005814
Unavailable
35
Handle Grip
510004449
Unavailable
37
Front Seat Base
510004775
Unavailable
38
Front Seat Foam
510004777
Unavailable
39
Backrest Foam
510004782
Unavailable
40
Rear Seat Foam
510004791
Unavailable
44
Seat Cover
510005181
Unavailable
56
Seat Base Ass'y | Includes 20a to 20a3
510005535
Unavailable
57
LH Arm, Black
510005538
Unavailable
57
RH Arm, Black
510005539
Unavailable
67
Rear Seat Cover
510005399
Unavailable
82
Backrest Cover | Not Shown
510005309
Unavailable
84
Rubber Stopper
708000759
Unavailable
87
Hex. Screw M6 X 16, Scotch Grip | Europe
207361644
Unavailable
