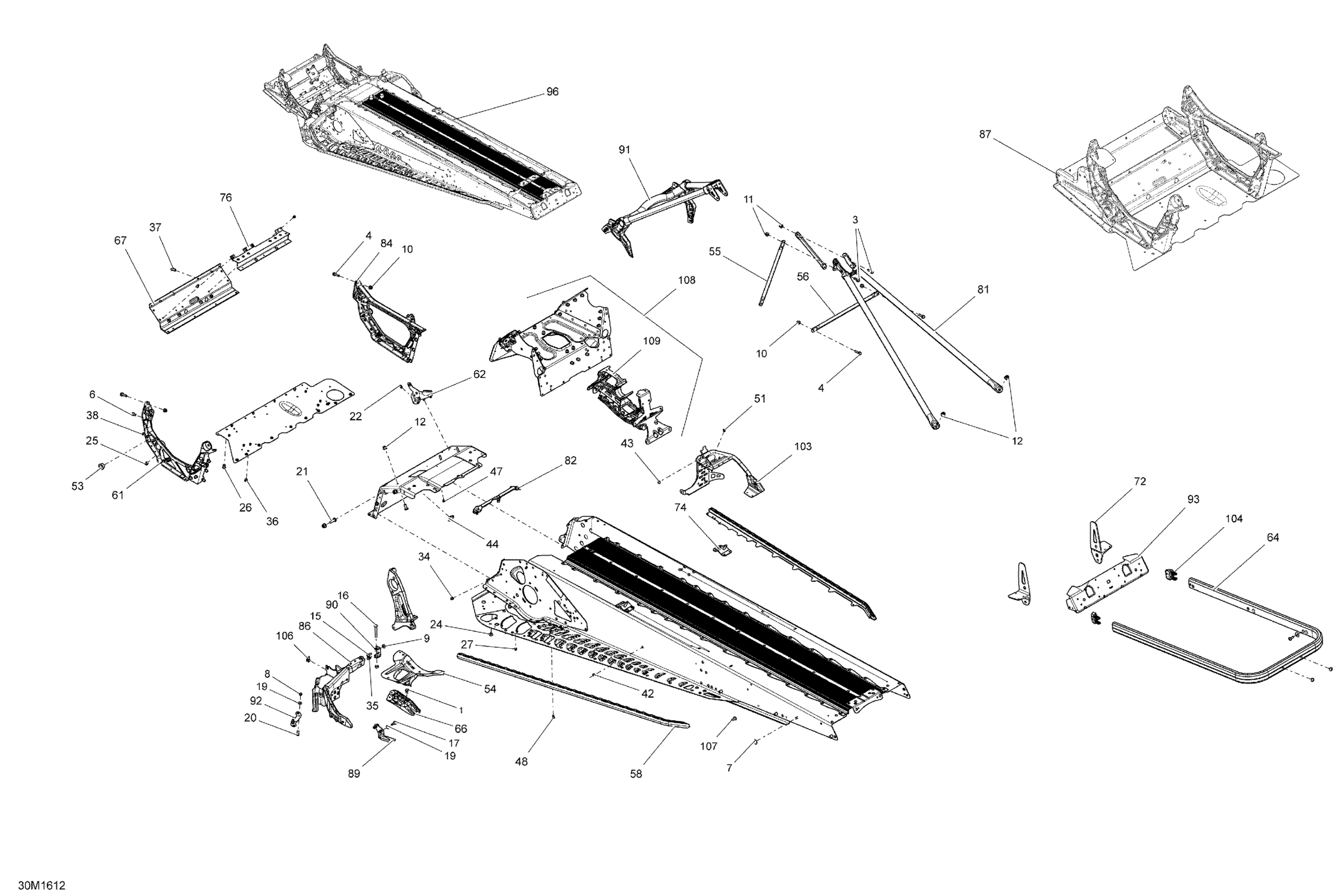

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Frame Diagram
#
1
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
3
Hex. Flange Screw M6 X 20
207662044
Unavailable
4
Hex. Flange Screw M6 X 25
207662544
Unavailable
7
Flat Washer
224061201
Unavailable
8
Elastic Stop Nut M6
232561414
Unavailable
9
Hex. Flange Nut M6
233061414
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Elastic Flange Nut M6 X 1.0
233261416
Unavailable
12
Hex. Flange Elastic Nut M8
233281414
Unavailable
15
Tork Screw M6 X 16
250000534
Unavailable
16
Torx Screw M8 X 55
250000535
Unavailable
17
Tork Screw M6 X 18
250000536
Unavailable
19
Flat Washer
250200039
Unavailable
21
Clinch Stud
250300038
Unavailable
27
Stavex Rivet
293150144
Unavailable
34
Henrob Rivet
293150146
Unavailable
35
Ornit Rivet 6,5 X 14.5
293150266
Unavailable
38
Monobolt Rivet, 4.8 mm
293150191
Unavailable
42
Black, Dart 8 mm
293730047
Unavailable
43
Full Moon Dart 5 mm
293730042
Unavailable
44
Black, Plug
293730052
Unavailable
47
Pop Rivet 3/16"
390402400
Unavailable
51
Avex Rivet
390909200
Unavailable
53
Leg Cushion
505073317
Unavailable
54
RH Reinforcement
518324874
Unavailable
54
LH Reinforcement
518324875
Unavailable
55
Upper Lateral Column Support
518325114
Unavailable
56
Center Column Support
518325115
Unavailable
58
RH ROLLER - Call your local BRP dealership
518325159
Unavailable
58
LH Roller | Includes 10bd to 10be
518325160
Unavailable
61
LH Member
518325558
Unavailable
62
RH Engine Support
518325559
Unavailable
64
Clear Rear Bumper
518325579
Unavailable
66
RH Deflector, Black Polypropylene
518325782
Unavailable
66
LH Deflector, Black Polypropylene
518325783
Unavailable
67
Front Member | Includes 10as to 10at
518325818
Unavailable
72
RH Slide Bracket
518325955
Unavailable
72
LH Slide Bracket
518325956
Unavailable
74
RH Rear Base
518325973
Unavailable
74
LH Rear Base | Includes 10v to 10x
518325974
Unavailable
76
ENGINE SUPPORT - Call your local BRP dealership
518326120
Unavailable
81
Rear Member
518326559
Unavailable
82
Seal
518326656
Unavailable
84
RH Member
518326795
Unavailable
86
LH Stirup
518326820
Unavailable
87
E Module | Includes 10ap to 10ay
518327568
Unavailable
89
Support
518326960
Unavailable
90
U-Attach
518326961
Unavailable
91
Front Member
518326975
Unavailable
92
Attach | Includes 10n to 10p
518326986
Unavailable
93
Rear Cap
518327105
Unavailable
94
Pulley Support
518328346
Unavailable
96
Frame | Includes 10 to 10bf
415130260
Unavailable
103
RH Stirup | Includes 10aa to 10ab
518328938
Unavailable
104
Full Moon RH Cap
520000711
Unavailable
105
Full Moon LH Cap
520000712
Unavailable
106
Panel Nut M5 X 0.8
250000958
Unavailable
107
Torx Screw M6 X 1.0 X 18, Scotch Grip
250000779
Unavailable
108
Cross Member S Module | Includes 300a to 300b
518328327
Unavailable
109
Front Suspension Support
518327487
Unavailable
