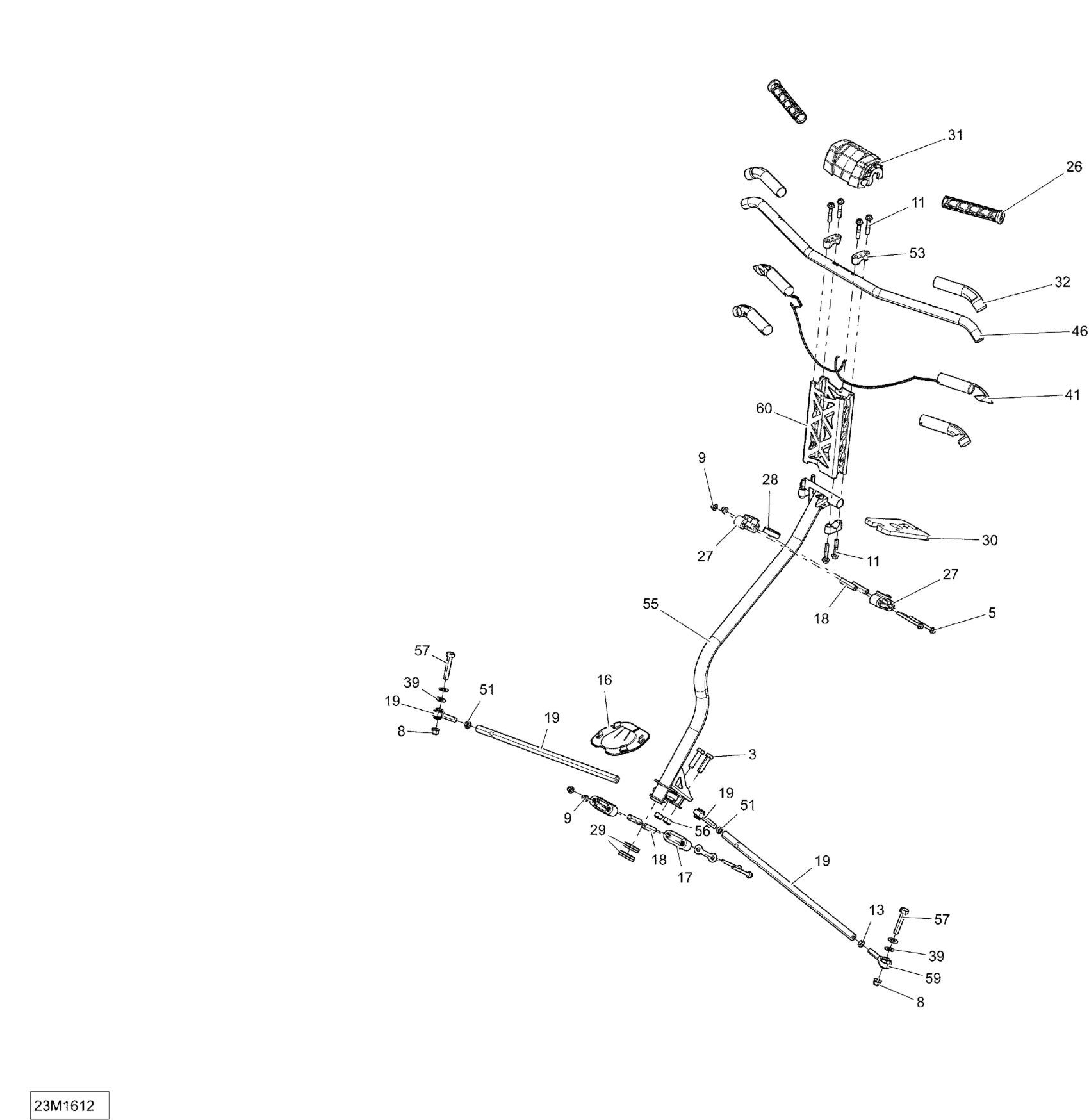

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Steering Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

9

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

11

Hex. Flange Screw M8 X 40

250000352

Unavailable

13

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

16

Plate

506152163

$10.23

17

Lower Half-Housing

506152217

$5.57

18

Housing Bushing

506152297

Unavailable

19

Tie-Rod

506152498

$36.89

26

Grip

506152486

$14.71

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

Unavailable

30

Bushing

506152521

$13.60

31

Deep Black, Steering Pad

506152541

$42.28

32

Isolant

506152611

$7.80

39

Washer

506152582

Unavailable

41

Heating Element 28 WATT This part replaces 506152602.

506152603

$43.82

41

HEATED FILM - Call your local BRP dealership

506152804

Unavailable

46

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

51

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

53

Steering Support | Includes 40 to 40a

506152751

$10.09

53

Steering Support | Model-Extreme

548873704

Unavailable

55

Steering Column

506152963

$285.35

56

Elastic Locking Nut M10

233601466

Unavailable

57

Hex Screw M10 X 1.5 X 55

207005554

$6.18

59

RH Threaded Ball Joint

506152019

$39.97

59

LH Thread Ball Joint

506152081

$39.97

60

Riser Kit

860200820

$86.99

60

Riser Kit

860200820

$86.99
