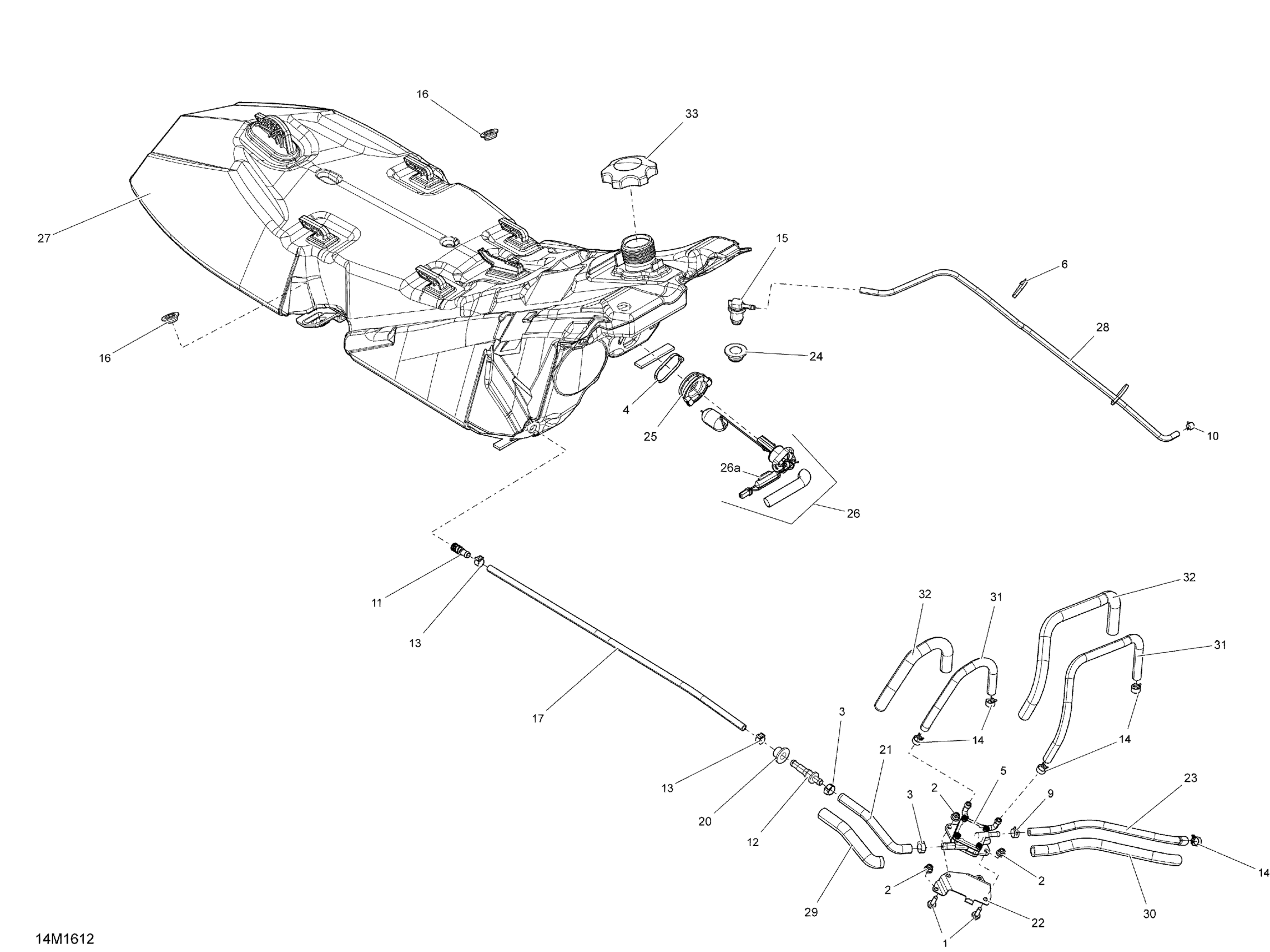

Ski-Doo EXPEDITION - SPORT 2-STROKE, 2016 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Crimp Clamp

293650053

$2.78

4

Tie Wrap 368 mm

293750008

$0.97

5

Fuel Pump

403901813

$84.99

6

Tie-Rap 180 mm

414115200

$0.10

9

Spring Clamp

414415200

$0.81

10

Spring Clamp

414554800

$0.81

11

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

12

Male Connector

414872700

Unavailable

13

Norma Spring Clamp

513033010

$8.42

14

Universal Spring Clamp

513033029

$4.96

15

Check Valve

513033842

$32.81

16

Shoulder Bushing

513033326

$12.24

17

Polyurethane Hose 1000Mm Long

219704391

Unavailable

20

Grommet

513033435

$4.28

21

Formed Hose

513033499

$28.33

22

Pump Bracket

513033543

$17.88

23

Formed Hose

513033553

$23.10

24

Grommet

513033596

$17.88

25

Grommet

513033606

$17.88

26

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

26a

Fuse, 0.5 Ampère

710001995

$7.25

27

Fuel Tank

513033695

$304.45

28

Polyurethane Hose 10000Mm Long

219704410

$52.96

29

Tubing 16 Mm 1000Mm Long

219704408

$7.15

31

Hose 3000Mm Long

219704612

$77.58

32

Tubing 16 Mm 1000Mm Long

219704408

$7.15

33

Fuel Tank Cap

513033969

$24.60
