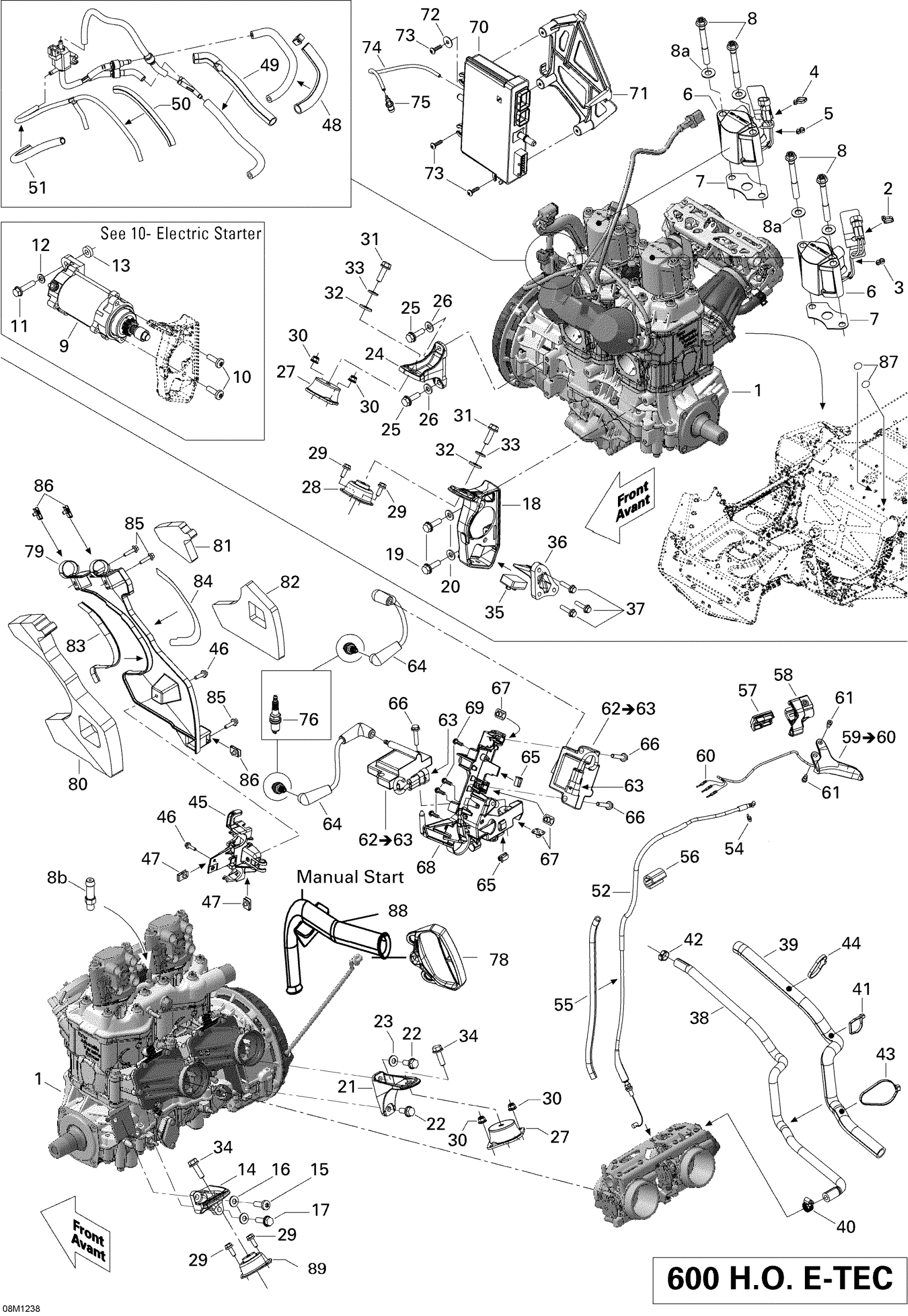

Ski-Doo Expedition SE 600HOETEC XU, 2012 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie Wrap 94 mm | 4X4

293750001

$0.83

3

Tie Wrap 142 mm

293750002

Unavailable

4

Tie Wrap 94 mm | 4X4

293750001

$0.83

5

Tie Wrap 142 mm

293750002

Unavailable

6

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

Unavailable

7

Gasket

420430930

$4.60

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

Unavailable

8a

Flat Washer 10 mm

234001410

Unavailable

8b

Hose Nipple

420924724

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Rear Support, PTO

512060478

$29.97

15

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

16

Conical Spring Washer M8

234281474

$1.25

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

18

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

19

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

20

Conical Spring Washer M8

234281474

$1.25

21

Rear Support, MAG

512060559

$29.97

22

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

23

Conical Spring Washer M8

234281474

$1.25

24

Front Support, MAG

512060469

$31.51

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Conical Spring Washer M8

234281474

$1.25

27

Rubber Mount

512060729

$69.97

28

Rubber Mount

512060387

$42.28

29

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

31

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

32

Yellow, Washer

503183200

Unavailable

33

Conical Spring Washer M8

234281474

$1.25

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

35

Stopper

512060627

$9.31

36

Stopper Support

512060576

$28.43

37

Hex. Flange Screw M6 X 25

207562544

$1.39

38

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

$39.97

39

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

40

Norma Clamp

293650084

Unavailable

41

Tie-Rap 180 mm

414115200

$0.09

42

Oetiker Clamp

293650046

Unavailable

43

Tie-Rap 180 mm

414115200

$0.09

44

Tie-Rap 180 mm

414115200

$0.09

45

Solenoid Support

512060298

$12.52

46

Hex.Flange Screw M5 X 20

207652044

$1.56

47

Panel Nut M5 X 0.8

250000958

Unavailable

48

Was 409901800 Tubing (13 mm)

219704400

Unavailable

49

Was 409901800 Tubing (13 mm)

219704400

Unavailable

50

Tubing 10 MM 1000MM Long

219704407

Unavailable

51

Tubing 10 MM 1000MM Long

219704407

Unavailable

52

Throttle Cable

512060633

$106.12

54

Circlip

414274500

Unavailable

55

Was 409901700 Tubing (9 mm)

219704399

Unavailable

56

Protector

512060313

$9.31

57

Upper Housing Ass'y

512060198

Unavailable

58

Lower Housing

512060860

Unavailable

59

Handle Ass'y

512061250

$117.66

60

Male Terminal

515175232

$1.49

61

Flange Screw

732601143

$4.02

62

Ignition Coil

512060953

$129.97

63

Housing

710000568

Unavailable

64

Ignition Cable, 177mm long

512061126

$27.66

65

Clip

710000992

$4.00

66

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

67

Nut Welded, M6

293100003

Unavailable

68

Ignition Coils Support

512060888

$10.52

69

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

70

Calibrated Module

512060780

$769.99

71

Calibrated Module Support

512060858

$12.52

72

Flat Washer

250200040

$1.82

73

Truss Head Torx Screw K50 X 20

250000297

$1.74

74

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

75

Male Connector

414814100

$2.18

76

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

78

Starter Grip

512060136

$14.54

79

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

80

Interior Noise Foam

512060343

Unavailable

81

Upper Exterior Noise Foam

512060344

Unavailable

82

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

83

Heat Shield

512060574

Unavailable

84

Heat Shield

512060575

Unavailable

85

Hex.Flange Screw M5 X 20

207652044

$1.56

86

Panel Nut M5 X 0.8

250000958

Unavailable

87

Adhesive Patch

518325560

Unavailable

88

Tubing

512060451

$44.58

89

Rubber Mount

512060448

$42.28
