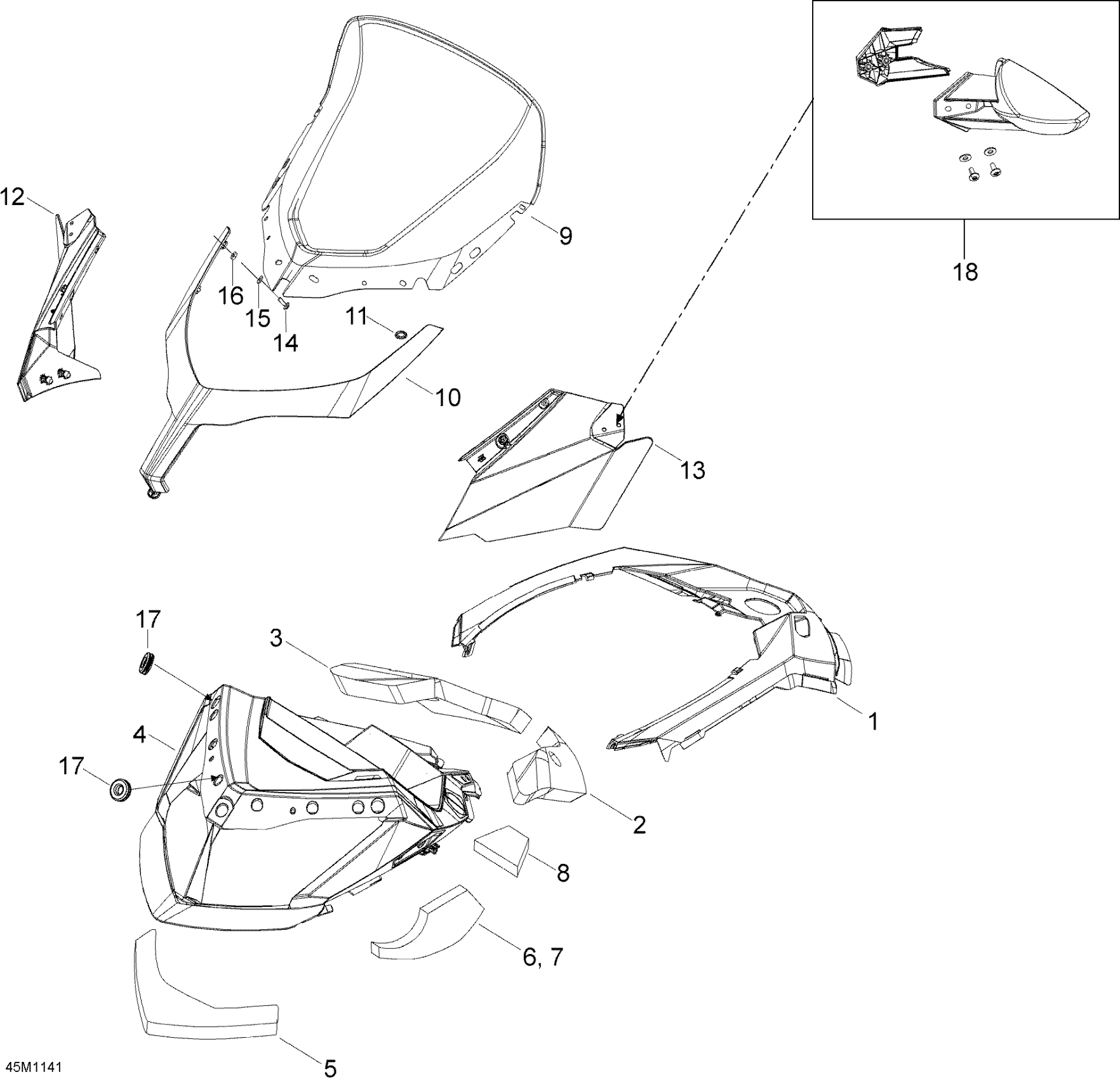

Ski-Doo Expedition SE 600HOETEC XU, 2011 Windshield And Console Diagram

#

Description
Price

1

Black, Console

517304820

$170.74

2

INSULATOR - Call your local BRP dealership

517304317

Unavailable

3

Insulator

517304318

$49.20

4

Indicator Support

517304272

$169.20

5

Insulator

517304314

$63.82

6

Insulator

517304315

$29.97

7

Insulator

517304316

$29.97

8

Insulator

517304319

$29.97

9

Windshield Ass'y

860201000

$213.82

10

Windshield Support Kit

860200230

$35.99

11

Push Nut

732610072

Unavailable

12

RH Console Air Deflector

517303745

$43.05

13

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

$35.35

14

Torx Screw K50 X 16

250000720

$1.39

15

Washer M5

250200025

Unavailable

16

Rubber Washer 5 mm

250200024

$1.77

17

Grommet

517303756

Unavailable

18

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51
