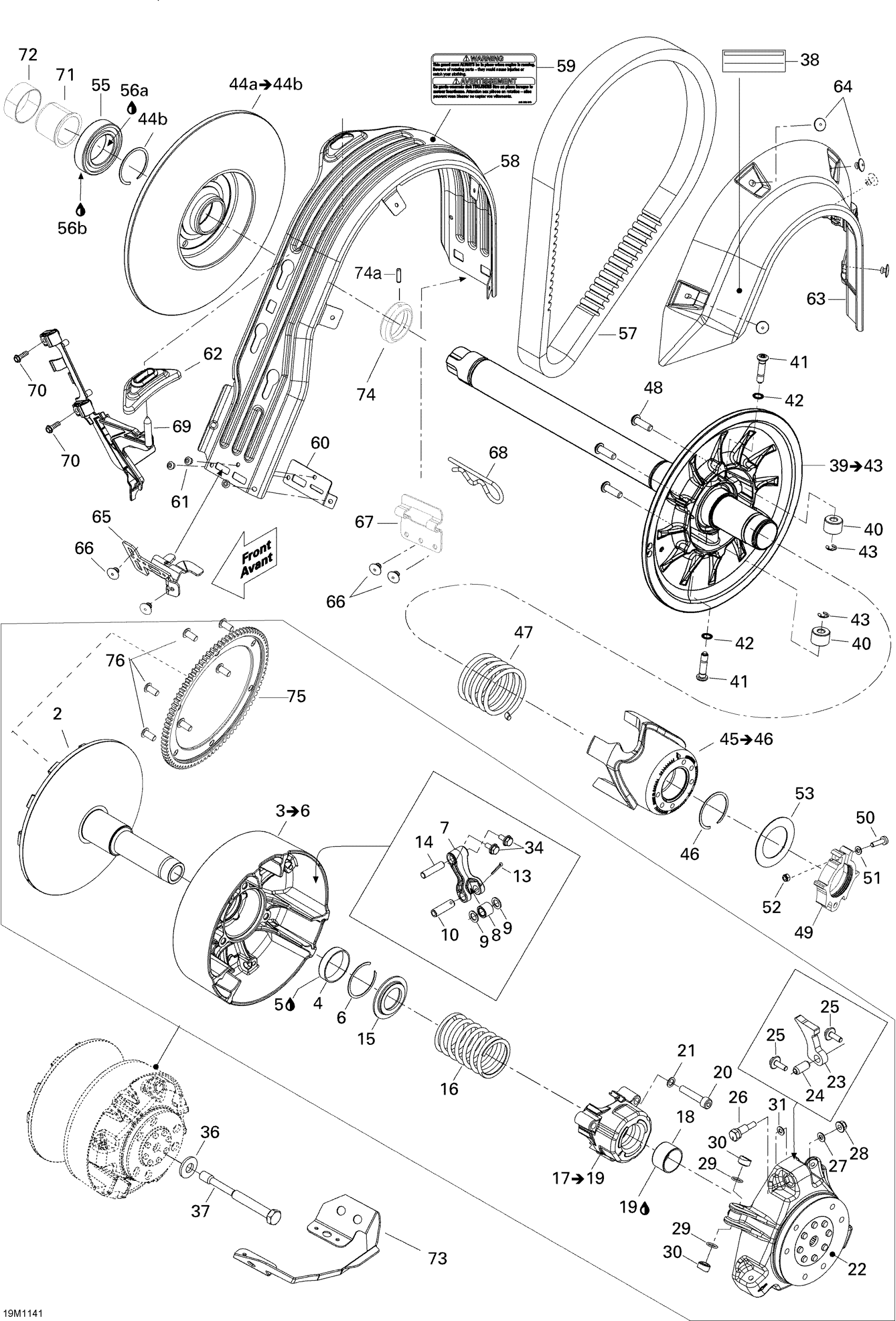

Ski-Doo Expedition SE 600HOETEC XU, 2011 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417223086

$33.82

5

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

5

Was 293800041 Loctite Primer 7649

219704458

$41.99

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Tra Spring

414993000

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

$2.06

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223441

Unavailable

23

Ramp 600

417222444

$32.28

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Flat Washer 6 mm

234061410

$1.04

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Washer

417005600

$3.86

34

Serrated Hex. Flange Bolt M6

250000416

$4.12

36

Spring Washer 14 mm

250200006

$5.80

37

Drive Pulley Bolt

417120000

$63.82

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$433.82

40

Roller

417127189

$44.58

41

Pivot Stud

417127259

$19.97

42

Lock Washer 8 mm

250200009

$2.06

43

Circlip

414753500

$0.59

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

44b

Circlip

293370049

$4.71

45

Cam Ass'y

417127411

$164.99

46

Circlip

293370049

$4.71

47

Spring, White

417127243

$42.28

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

49

Calibration Ass'y

415129604

$22.49

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

$0.44

52

Elastic Stop Nut M5

232551414

$0.72

53

Washer

417127155

$8.03

55

Ball Bearing

504152574

$34.58

56a

Loctite 609, 10 ml

413703100

$24.58

56b

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300551

$170.99

58

Belt Guard

417300382

$85.35

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

$0.29

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

$0.54

65

Belt Guard Bracket | Except Package SWT

417300363

$12.20

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

67

Belt Guard Bracket

417300373

$33.05

68

Hair Pin

114045200

$10.69

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

71

Protective Rubber

504153054

$16.12

72

PROTECTIVE RING - Call your local BRP dealership

504153034

Unavailable

73

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

74

RETAINER - Call your local BRP dealership

417300401

Unavailable

74a

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

75

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

76

Torx Screw M8 X 16

250000751

$4.64
