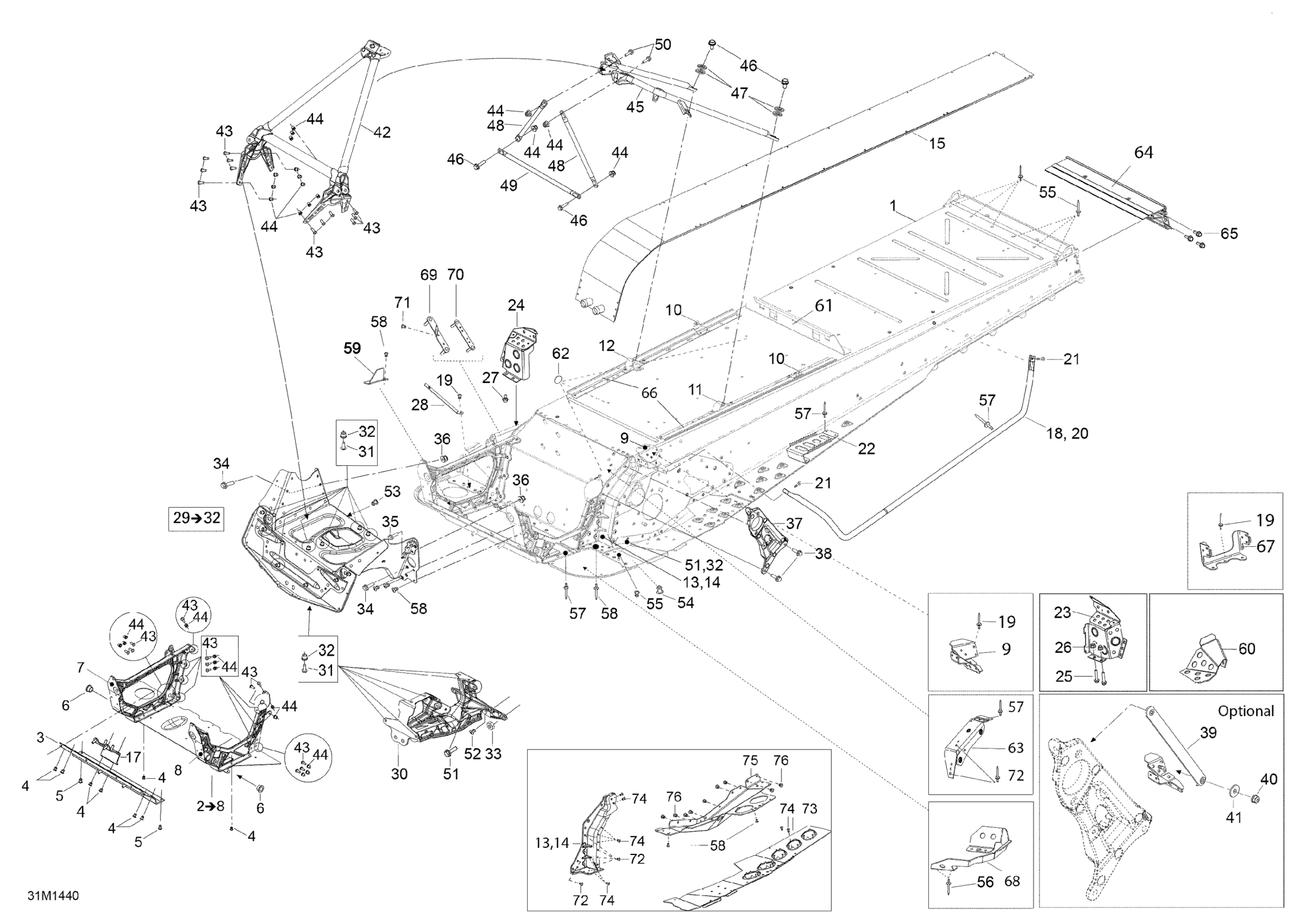

Ski-Doo EXPEDITION SE 600HOE, XU, 2014 Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Includes 1 To 30

518328203

Unavailable

2

Module E | Includes 2 To 12

518328186

$880.57

3

Front Member

518326198

$58.18

4

Hemlock Rivet, 6.5 mm

293150119

$3.88

5

Hemlock Rivet 6.5 mm

293150120

$7.01

6

Leg Bushing

505072690

$5.75

7

RH Member

518326795

$252.21

8

LH Member

518326796

$204.45

9

Fastening Bracket

605355235

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

12

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

13

LH Frame Corner

518325524

$50.72

14

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

15

Radiator

509000975

$779.07

17

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

18

LH Footboard Support Tube

518326963

$123.10

19

Avex Rivet

390909200

$0.28

20

RH Footboard Support Tube

518326964

$123.10

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Black Rear Footrest

520001208

$17.88

23

Toe hold L.H. | Package SE

518327375

Unavailable

24

Black RH Toe Hook

518327376

$38.78

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Torx Screw M6 X 20

250000722

$1.54

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member | Package LE

518328392

$586.54

30

Front Suspension Support

518327487

$259.67

31

Hex. Flange Screw M6 X 20

207662044

$1.91

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Hexagonal Head Screw

210262050

$2.00

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

PULLEY SUPPORT - Call your local BRP dealership

518327644

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

39

DRAFT BAR - Call your local BRP dealership | Optional

518326449

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

41

Flat Washer M8

234081430

$2.00

42

Front Member

518326970

$267.88

43

Hex. Flange Screw M6 X 20

207662044

$1.91

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

$20.12

49

Center Column Support

518325115

$20.12

50

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

52

Ornit Rivet 6,5 X 14.5

293150266

$1.88

53

Full Moon Dart 5 mm

293730042

$2.06

54

Black, Dart

414644300

$0.90

55

Avex Rivet

390909200

$0.28

56

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

57

Avex Rivet

390909100

$0.28

58

Rivet Hucklok

293150163

$2.73

59

Muffler support plate

518326642

Unavailable

60

Brake Hose Cover | Except Package SWT

518325626

$27.58

61

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

62

Adhesive Patch

518325560

$4.21

63

Clinch Nut plate

518326430

$44.75

64

Rear Profile

518328748

$211.16

65

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

66

Fastening rail

518326107

$14.90

67

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

68

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

69

Gearbox Front Plate

518326123

Unavailable

70

Gearbox Rear Plate

518326124

$14.81

71

Pop Rivet 3/16"

390402200

$0.30

72

Rivet

293150183

$2.00

73

FOOTREST LH - Call your local BRP dealership

518326564

Unavailable

73

FOOTREST RH - Call your local BRP dealership

518326565

Unavailable

74

Avex Rivet

390909100

$0.28

75

LH Drive Axle Cover

518328016

$186.54

75

RH Drive Axle Cover

518328017

$186.54

76

Hemlock Rivet, 6.5 mm

293150119

$3.88
