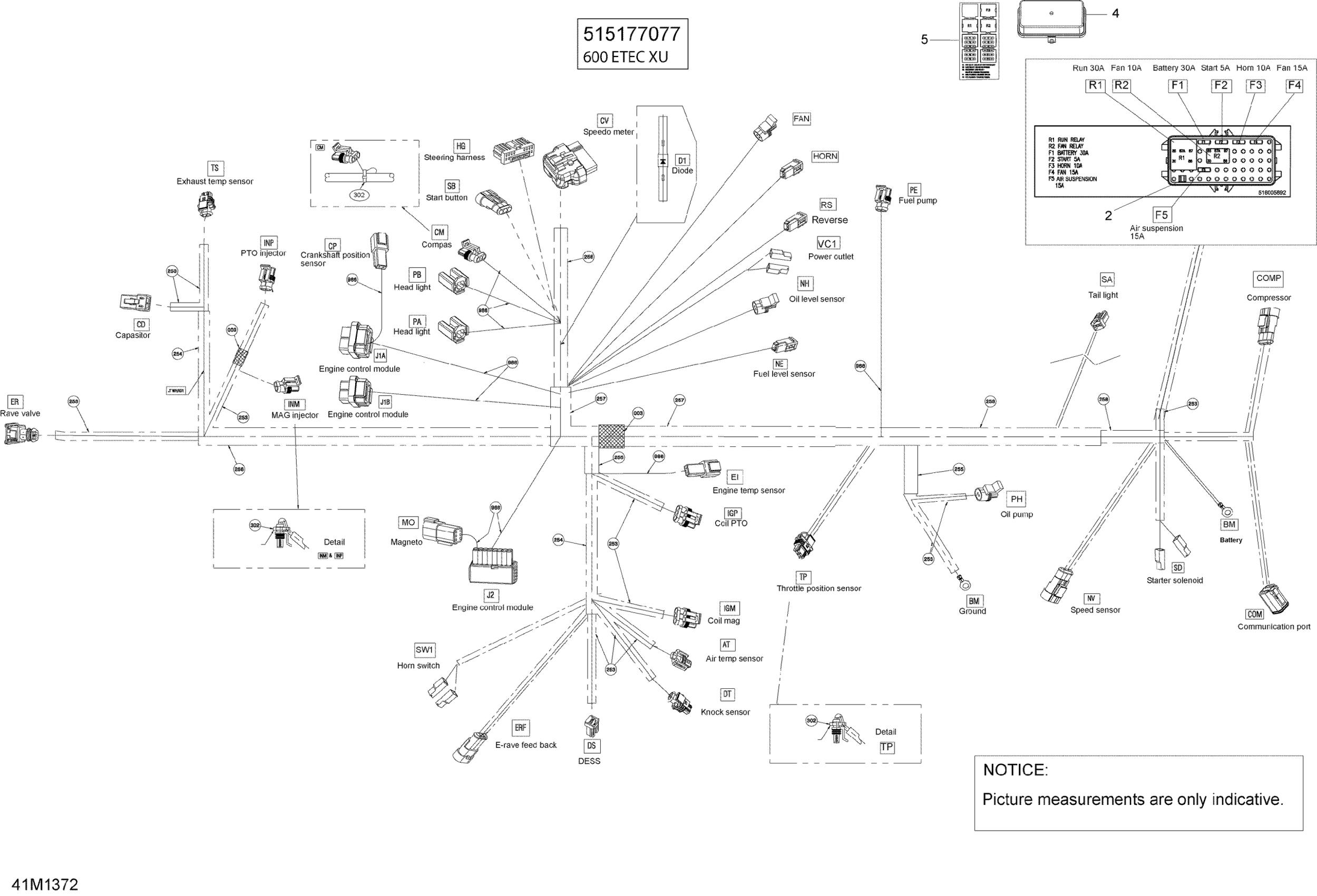

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177077

Unavailable

2

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Fuse Cover

710001026

$17.52

5

FUSE DECAL ETEC - Call your local BRP dealership

516005892

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

257

Was 409901600 Tubing 19mm

219704398

Unavailable

258

Tubing 10 MM 1000MM Long

219704407

Unavailable

302

Tie Wrap 142 mm

293750002

Unavailable

966

Not Available As Spare Part - Friction Washer

Unavailable

AT

Wire Seal

710001163

Unavailable

AT

Female Terminal

710001164

Unavailable

AT

Female Terminal Housing

515176890

$11.14

BM

Open Barrel

278000992

$1.79

CD

Female Terminal

515175567

$6.03

CD

Female Terminal Housing, 2 Circuits

278001673

$23.05

CD

Female Lock, 2 Circuits

278001671

$3.22

CM

Female Housing, 3 Circuits

409209600

Unavailable

CM

Tie Wrap 142 mm

293750002

Unavailable

CM

Wire Seal

515176621

Unavailable

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

Unavailable

COMP

Housing

710000568

Unavailable

COMP

Male Terminal

515176164

Unavailable

COMP

Clip

710000992

$4.00

COMP

Wire Seal

515176621

Unavailable

CP

Male Terminal

278000631

$4.12

CP

Male Lock, 2 Circuits

409207500

$3.02

CP

Male Terminal Housing, 2 Circuits

515175665

$8.02

CV

Plug

515175812

Unavailable

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Female Housing

710000399

Unavailable

CV

Female Terminal

710001131

Unavailable

D1

Diode

409012700

$10.83

DS

Female Terminal

515175231

Unavailable

DS

Female Housing, 3 Circuits

515175495

$15.35

DT

Female Terminal

278000998

$3.48

DT

Male Housing, 2 Circuits

278001005

$15.57

DT

Seal

415128501

Unavailable

EI

Male Terminal

278000631

$4.12

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

ER

Female Terminal

278000998

$3.48

ER

Female Terminal Housing, 2 Circuits

415128500

$6.31

ER

Seal

415128501

Unavailable

ERF

Housing

710000568

Unavailable

ERF

Male Terminal

515176164

Unavailable

ERF

Wire Seal

515176621

Unavailable

F

Little Fuse, 5 Amperes

710000742

Unavailable

F

Little Fuse, 7.5 Amperes

710000743

$8.02

F

Little Fuse, 10 Amperes

710000744

Unavailable

F

Little Fuse, 15 Ampere

710000745

Unavailable

F

Little Fuse, 20 Amperes

710000746

Unavailable

F

Little Fuse, 30 Amperes

710000747

Unavailable

FAN

Housing

710000568

Unavailable

FAN

Male Terminal

515176164

Unavailable

FAN

Wire Seal

515176621

Unavailable

HG

Female Terminal

515175231

Unavailable

HG

Female Terminal

515175282

$6.43

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HORN

Female Terminal

515175231

Unavailable

HORN

Female Housing, 2 Circuits

515175658

Unavailable

IGM

Female Terminal

278001014

Unavailable

IGM

Female Housing, 3 Circuits

409209600

Unavailable

IGM

Wire Seal

278001013

Unavailable

IGP

Female Terminal

278001014

Unavailable

IGP

Female Housing, 3 Circuits

409209600

Unavailable

IGP

Wire Seal

278001013

Unavailable

INM

Female Terminal

278001014

Unavailable

INM

Female Housing, 2 Circuits

409209500

$13.48

INM

Wire Seal

278001013

Unavailable

INM

Tie Wrap 94 mm | 4X4

293750001

$0.83

INM

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

INP

Female Terminal

278001014

Unavailable

INP

Female Housing, 2 Circuits

409209500

$13.48

INP

Wire Seal

278001013

Unavailable

INP

Tie Wrap 94 mm | 4X4

293750001

$0.83

INP

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.74

J1A

Plug

515176345

$20.74

J1A

Female Terminal

515176348

$6.03

J1A

Female Terminal

515176541

$4.42

J1B

Female Terminal Housing, 26 Circuits

515176341

$28.43

J1B

Plug

515176345

$20.74

J1B

Female Terminal

515176348

$6.03

J1B

Female Terminal

515176541

$4.42

J2

Female Terminal

278000998

$3.48

J2

Female Terminal Housing, 16 Circuits

515176340

$13.94

J2

Seal

415128501

Unavailable

MO

Male Terminal

278000631

$4.12

MO

Female Lock, 6 Circuits

278000735

$3.02

MO

Male Terminal Housing, 6 Circuits

515175668

$14.02

NE

Male Terminal

515175232

$1.49

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NH

Male Connector, 2 Circuits

278001113

$12.65

NH

Female Terminal

710001119

Unavailable

NV

Housing

710000568

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

PE

Female Terminal

278001014

Unavailable

PE

Female Housing, 2 Circuits

409209500

$13.48

PE

Wire Seal

278001013

Unavailable

PH

Female Terminal

278001114

$2.55

PH

Male Connector, 2 Circuits

278001113

$12.65

R1

Relay, 50 AMP

515176775

$13.86

R2

Relay, 30 AMP

515176774

$19.20

RS

Female Housing, 3 Circuits

409209600

Unavailable

RS

Wire Seal

515176621

Unavailable

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

SB

Housing

710000568

Unavailable

SB

Male Terminal

515176164

Unavailable

SB

Wire Seal

515176621

Unavailable

SD

Female Terminal

409010100

$5.46

SD

Female Terminal Housing, 1 Circuit

409010400

$7.48

SD

Tie Wrap 94 mm | 4X4

293750001

$0.83

SW1

Female Terminal

409010100

$5.46

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

TP

Female Terminal

278000998

$3.48

TP

Male Housing, 3 Circuits

278000997

$15.57

TP

Seal

415128501

Unavailable

TS

Female Terminal

278000998

$3.48

TS

Male Housing, 2 Circuits

278001005

$15.57

TS

Seal

415128501

Unavailable

VC1

Female Terminal

409010100

$5.46

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.48
