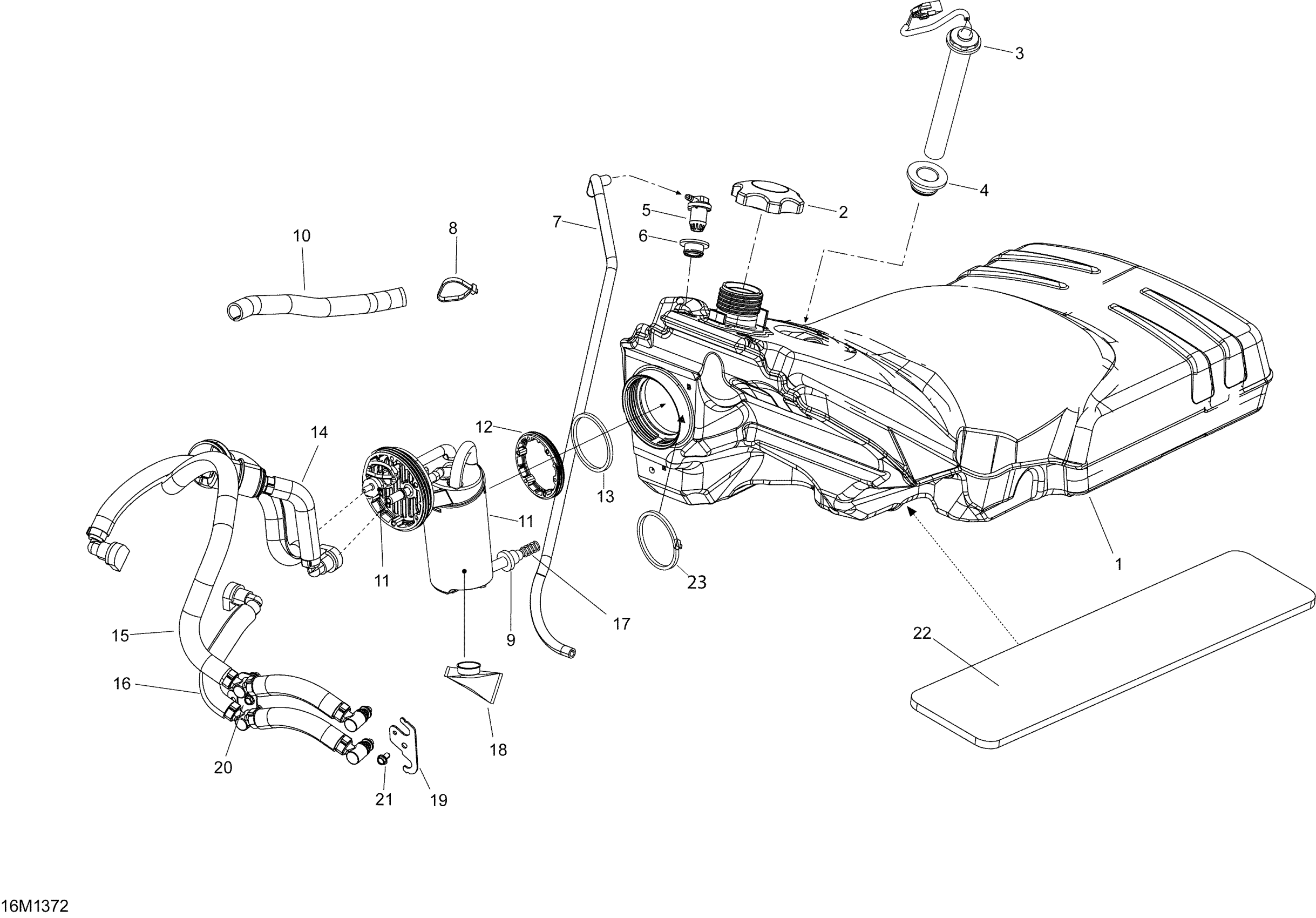

Ski-Doo EXPEDITION SE 600HOE, REV XU, 2013 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033025

$19.47

2

Fuel Tank Cap 91 Octane

513033722

$23.05

3

Fuel Sensor

513033538

$77.66

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Tie-Rap 180 mm

414115200

$0.09

9

Grommet

280000674

$4.42

10

Tubing 16 Mm 1000Mm Long

219704408

$6.23

11

Fuel Pump Ass'y | Includes 13 to 15

513033643

$257.66

12

Ring

513033180

$17.66

13

Gasket

513033334

$23.05

14

Hose Ass'y

513033589

$180.74

15

Hose Ass`Y

513033631

$312.28

16

Hose Ass'y | Includes 22 to 23

513033594

$81.51

17

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

18

Fuel Filter

415129451

$23.05

19

Bracket

513033593

$16.12

20

Bracket

513033542

$12.62

21

Hex. Flange Screw M5 X 10

207551044

$3.38

22

FOAM - Call your local BRP dealership

513033640

Unavailable

23

Clamp

513033628

$20.74
