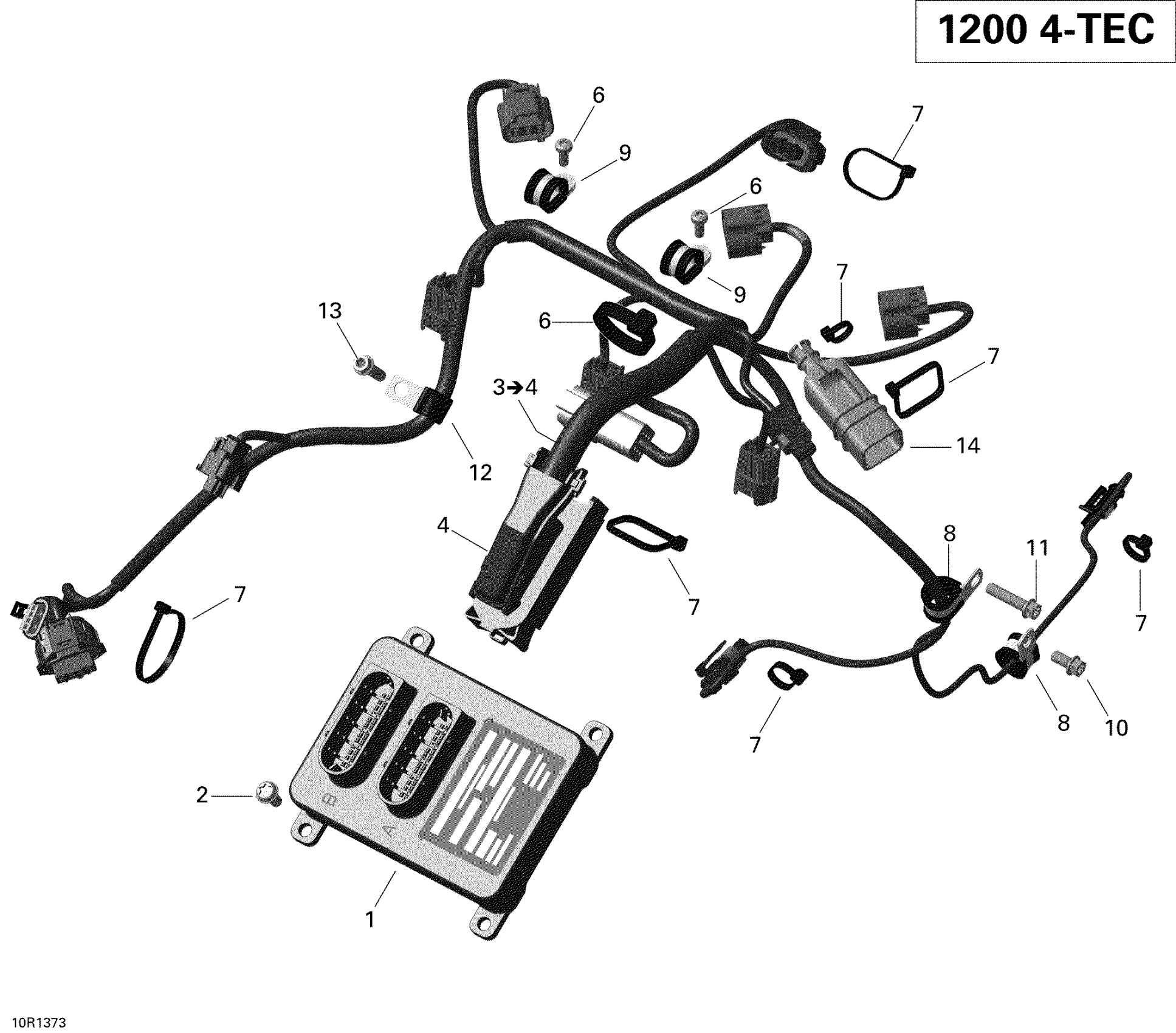

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 10_Engine Harness and Electric Module Diagram

#

Description

Price

1

ECM, Engine Control Module

420666128

$1,292.28

2

Torx Flange Screw M6 X 16

420641588

$1.74

3

Engine Wiring Harness Ass'y

420665638

$483.82

4

ECM Connector

420664450

$26.89

5

Torx Screw M5 X 12

420640086

$2.06

6

Tie-Rap

420866716

$1.56

7

CLAMP - Call your local BRP dealership

420866717

Unavailable

8

Cable Clamp

420851492

$13.58

9

CABLE CLAMP - Call your local BRP dealership

420851108

$7.43

10

Hex. Flange Screw M6 X 12

420440147

$1.97

11

Torx Flange Screw M6 X 25

420440234

$3.00

12

Cable Clamp

420251812

Unavailable

13

Torx Flange Screw M6 X 25

420440234

$3.00
