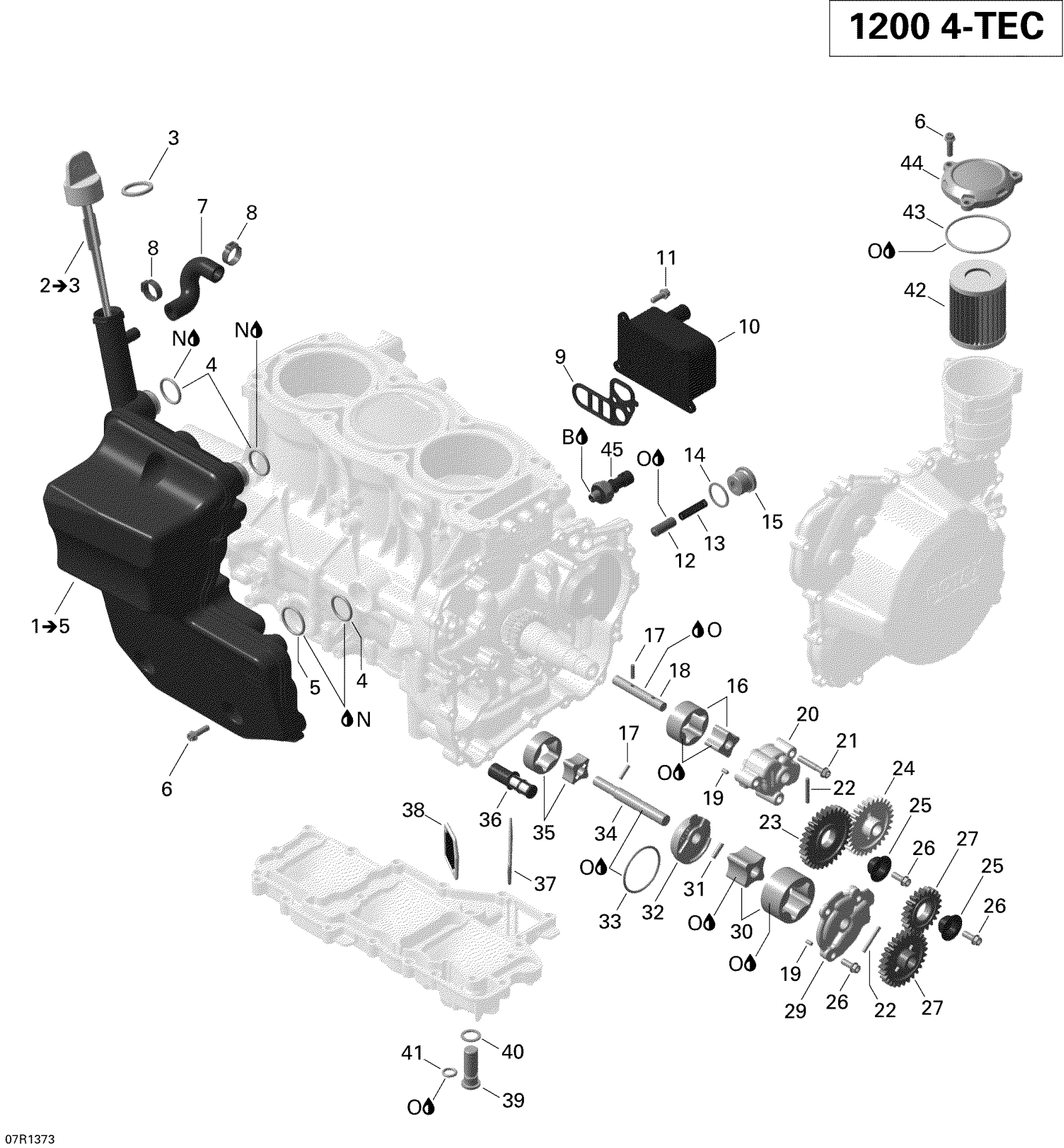

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 Engine Lubrication Diagram

#

Description
Price

1

Oil Tank Ass'y | Includes 1 to 5

420656386

$128.43

2

Oil Lever Tube Ass'y | Includes 2 to 3

420856661

$23.82

3

Gasket Ring

420431790

$7.05

4

O-Ring

420931634

$16.89

5

O-Ring

420430068

$16.89

6

Torx Flange Screw M6 X 20

420440207

$2.54

7

Air Vent Line

420460021

$16.89

8

Clamp

420951273

$5.22

9

Gasket

420431283

$23.05

10

Oil Radiator

420891914

$119.20

11

Torx Flange Screw M6 X 25

420440234

$3.00

12

Pressure Regulating Piston

420256510

$27.66

13

Spring

420239445

$10.58

14

Gasket Ring

420650465

$11.52

15

SCREW PLUG M22 X 1.5 - Call your local BRP dealership

420640278

Unavailable

16

Oil Pump Rotor, Suction

420256681

$34.58

17

Needle Pin

420232731

$1.56

18

OIL PUMP SHAFT - Call your local BRP dealership

420837911

$17.66

19

Needle Pin

420929075

$1.74

20

Oil Pump Housing

420611861

$40.74

21

Torx Flange Screw M6 X 35

420641258

$2.78

22

Needle Pin

420232431

$3.67

23

Idle Gear, 31 Teeth

420835055

$23.82

24

Oil Pump Gear, 29 Teeth

420834882

$8.89

25

Graduated Spacer This part replaces 420947390.

420947396

$26.89

26

Torx Flange Screw M6 X 16

420440162

$3.11

27

Idle Gear, 22 Teeth

420835051

$23.05

28

Oil Pump Gear, 28 Teeth

420834887

$8.89

29

Oil Pump Cover

420611980

$27.92

30

Oil Pump Rotor

420256831

$71.51

31

Needle Pin

420632221

$3.61

32

Oil Pump Cover

420611950

$46.12

33

O-Ring

420631830

$1.74

34

OIL PUMP SHAFT - Call your local BRP dealership

420837915

Unavailable

35

Oil Pump Rotor, Pressure

420256671

$32.28

36

OIL SIEVE - Call your local BRP dealership

420856658

Unavailable

37

Oil Sieve

420856650

$13.52

38

Oil Sieve

420856655

$13.52

39

Screw Plug M14 X 1.5

420941841

$23.82

40

Gasket Ring

420230500

$1.85

41

O-Ring

420430115

$1.91

42

Oil Filter

420956124

$16.87

43

O-Ring

420230923

$2.59

44

Oil Filter cover

420612135

$11.11

45

Oil Pressure Switch

420256915

$38.43

B

Loctite 243, 10 ml

293800060

$20.77

N

Dow Corning 111, 150 g

413707000

$57.82

O

SYNTHETIC OIL 4T 12X1 L. - Call your local BRP dealership

293600112

Unavailable
