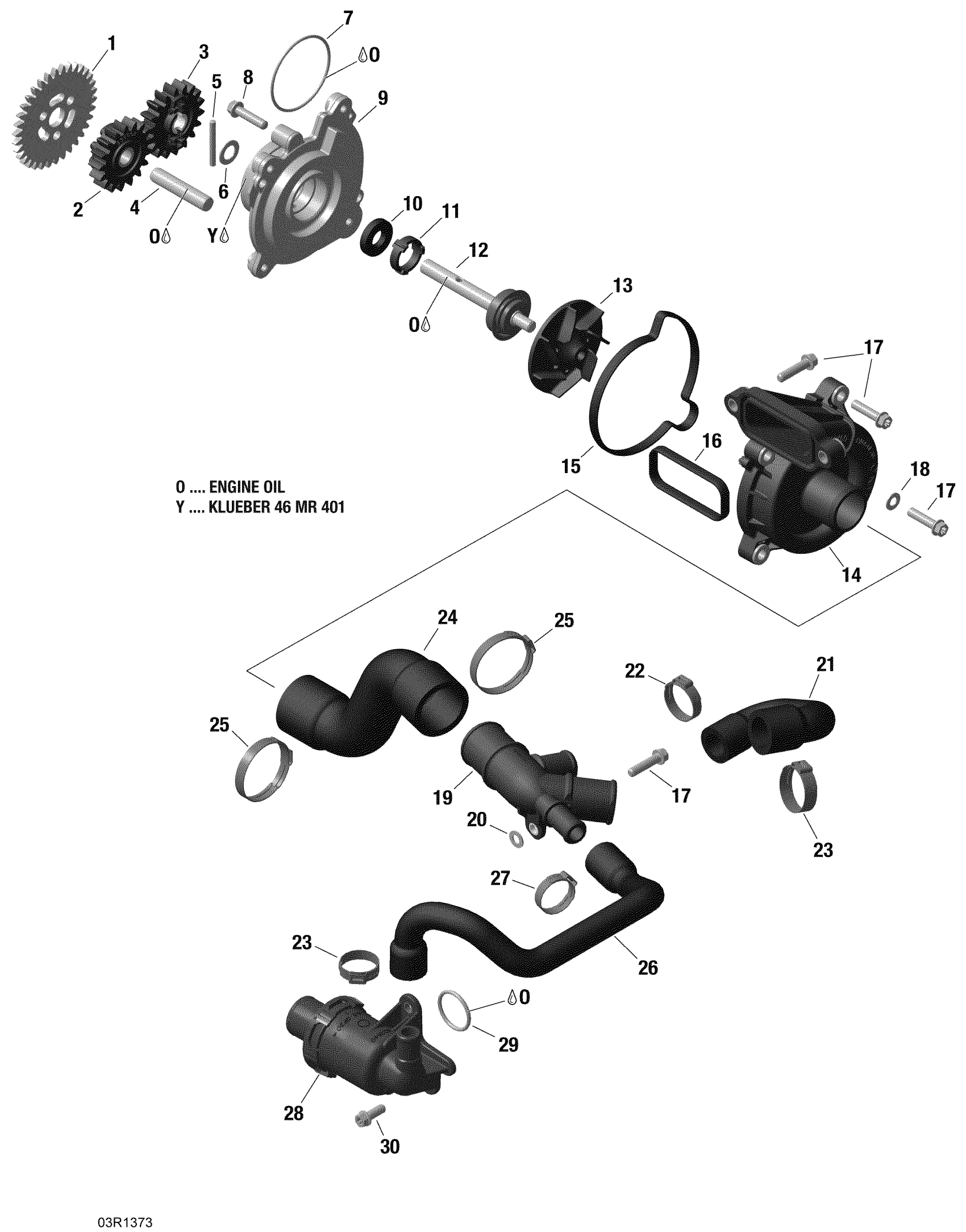

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 Engine Cooling Diagram

#

Description
Price

1

Idle Gear, 34 Teeth

420835065

$66.89

2

Idle Gear, 17 Teeth

420835062

$19.20

3

Water Pump Gear, 18 Teeth

420835070

$19.20

4

Location Pin 10 M6x50

420229302

$3.11

5

Needle Pin

420832660

Unavailable

6

Thrust Washer

420827590

$3.86

7

O-Ring

293300117

$4.28

8

Torx Flange Screw M6 X 25

420440234

Unavailable

9

Step Collar

420910230

$66.89

10

Oil Seal

420650315

$9.62

11

Spacer Ring

420947430

$2.06

12

Water Pump Shaft

420837921

$53.99

13

Water Impeller

420922805

$36.89

14

Water Pump Housing Ass'y | Includes 14 to 16 This part replaces 420822462.

420822463

Unavailable

15

Gasket

420430780

$13.58

16

Gasket

420431290

$13.58

17

Torx Flange Screw M6 X 25

420440234

Unavailable

18

Seal Washer

420230415

$1.77

19

Water Manifold

420922141

$38.43

20

Flat Washer

224061121

$0.44

21

MOLDED HOSE - Call your local BRP dealership

420922091

$16.12

22

Gear Clamp

420851673

$4.71

23

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

24

Molded Hose

420460461

$19.20

25

Gear Clamp

420951293

$8.34

26

Molded Hose

420922132

$29.97

27

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

28

Thermostat Housing Ass'y | Includes 30 to 31

420822541

$69.20

29

O-Ring

420631876

$10.52

30

Torx Flange Screw M6 X 16

420440162

$3.11

O

SYNTHETIC OIL 4T 12X1 L. - Call your local BRP dealership

293600112

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

Unavailable
