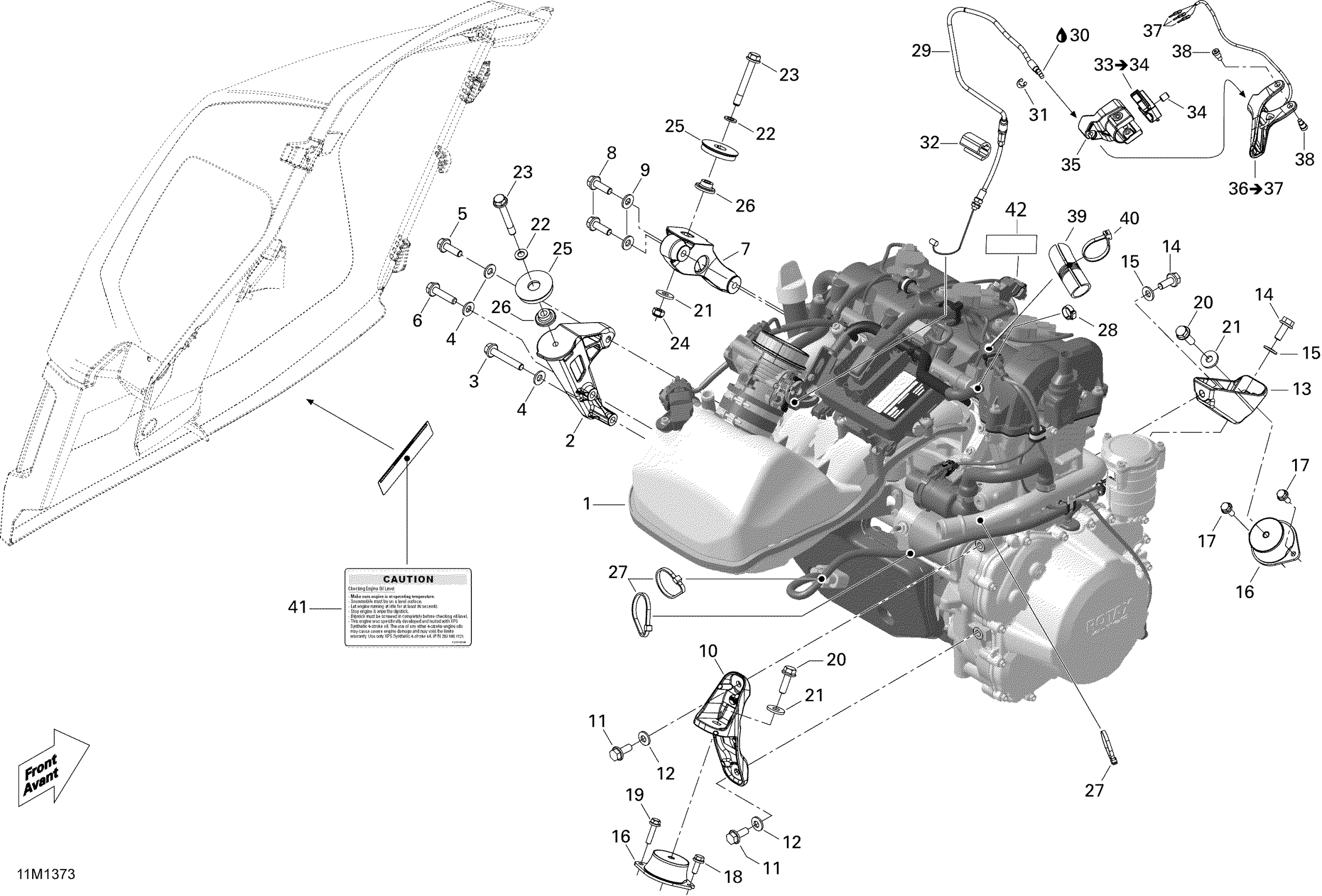

Ski-Doo EXPEDITION SE 12004TEC, REVXU, 2013 Engine And Engine Support Diagram

#

Description
Price

1

ENGINE 1203 LONG BLOCK - Call your local BRP dealership

300120303

Unavailable

2

Rear Support, PTO

512060591

$44.00

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.15

4

Conical Spring Washer M8

234281474

$1.43

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

6

Hex. Flange Screw M8 X 35

250000986

$2.00

7

Front Support, PTO

512060593

$27.58

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

9

Conical Spring Washer M8

234281474

$1.43

10

Rear Support, MAG

512060594

$29.07

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

12

Conical Spring Washer M8

234281474

$1.43

13

Front Support, MAG

512060596

$29.07

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

15

Conical Spring Washer M8

234281474

$1.43

16

Rubber Mount

512060729

$67.88

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.00

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

21

Yellow, Washer

503183200

$2.91

22

Flat Washer With Teflon 8 mm

250200008

$3.58

23

Cone Screw, M8 X 30

250000257

$1.67

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

Stopper This part replaces 512060244.

512061202

$17.88

26

Spacer

512060285

$17.13

27

Tie-Rap 180 mm

414115200

$0.10

28

Oetiker Clamp

293650046

$2.67

29

THROTTLE CABLE - Call your local BRP dealership

512060702

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

31

Circlip

414274500

$0.85

32

Protector

512060313

$9.03

33

Upper Housing

512060859

$8.13

34

Socket Set Screw M8 X 10

414440800

$3.88

35

Lower Housing

512060860

$16.39

36

Handle Ass'y

512061250

$114.15

37

Male Terminal

515175232

$1.45

38

Flange Screw

732601143

$3.90

39

Was 409901600 Tubing 19mm

219704398

$87.28

40

Tie-Rap 180 mm

414115200

$0.10

41

Caution Decal, Oil Level

516005521

Unavailable

42

Al-tubing

M39065

Unavailable
