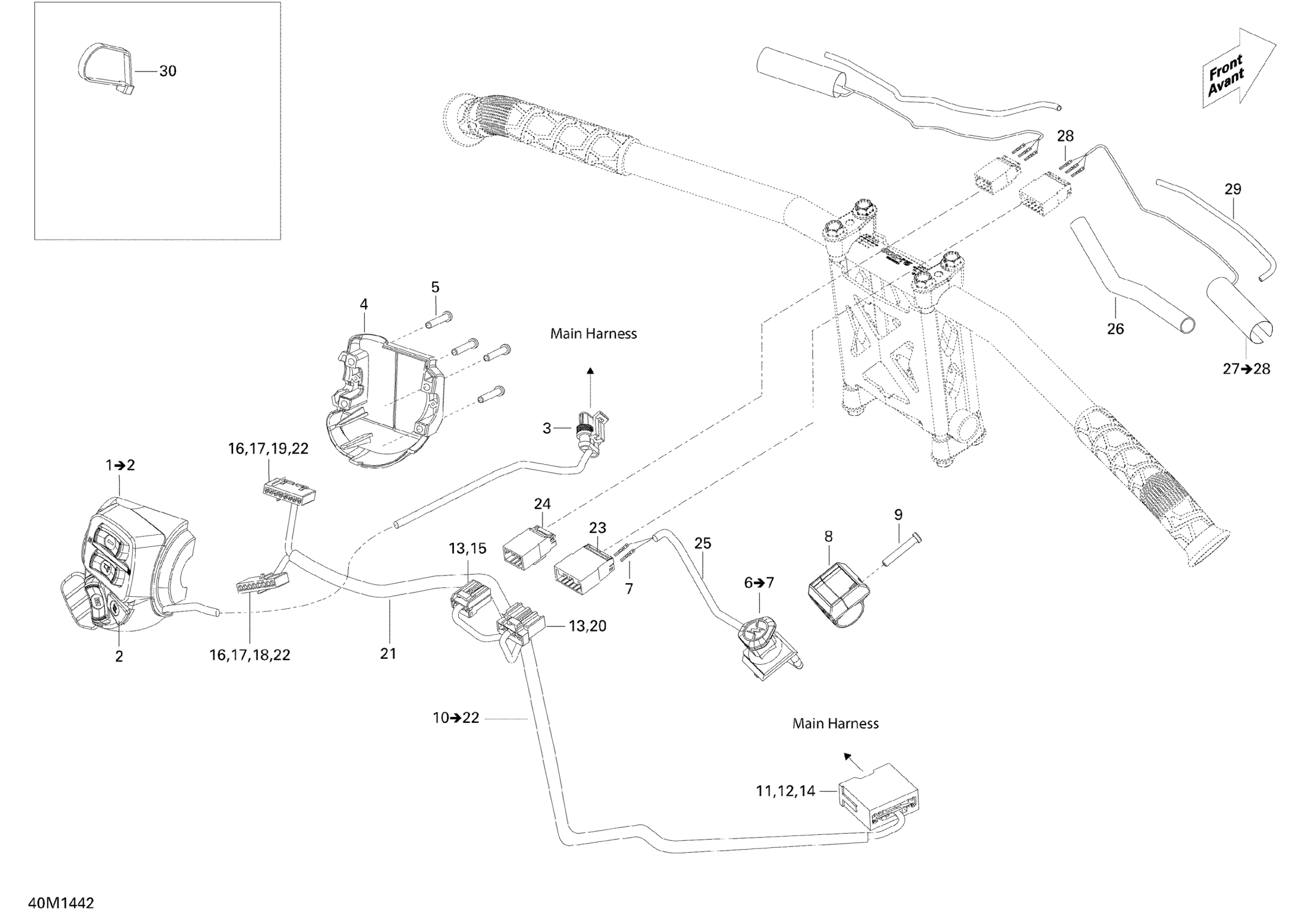

Ski-Doo EXPEDITION SE 1200 XU, 2014 Steering Wiring Harness Diagram

#

Description
Price

1

LH Switch Housing | Includes 1 to 2

515177509

$249.20

2

Start/RER Button

515176088

$18.43

3

Female Housing, 3 Circuits

409209600

$35.35

4

Switch Housing Plate

515175926

$17.66

5

Torx Screw #8-18

250000263

$1.02

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

7

Male Terminal

515175232

$1.49

8

Kill Switch Support

515176825

$8.60

9

Torx Screw #8-18

250000263

$1.02

10

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership

515176868

Unavailable

11

Male Terminal

515175232

$1.49

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

Female Terminal

515175231

$4.12

14

MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership

515175351

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

17

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

18

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

19

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

20

Female Terminal Housing, 6 Circuits

515175543

$8.57

21

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

22

Female Terminal

515175941

$2.48

23

Male Terminal Housing, 8 Circuits

515175817

$8.57

24

Male Terminal Housing, 6 Circuits

515175662

$8.57

25

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

26

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

27

Heated Film, 25W

506152428

$37.66

28

Male Terminal

515175232

$1.49

29

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

30

Tie-Rap 180 mm

414115200

$0.09
