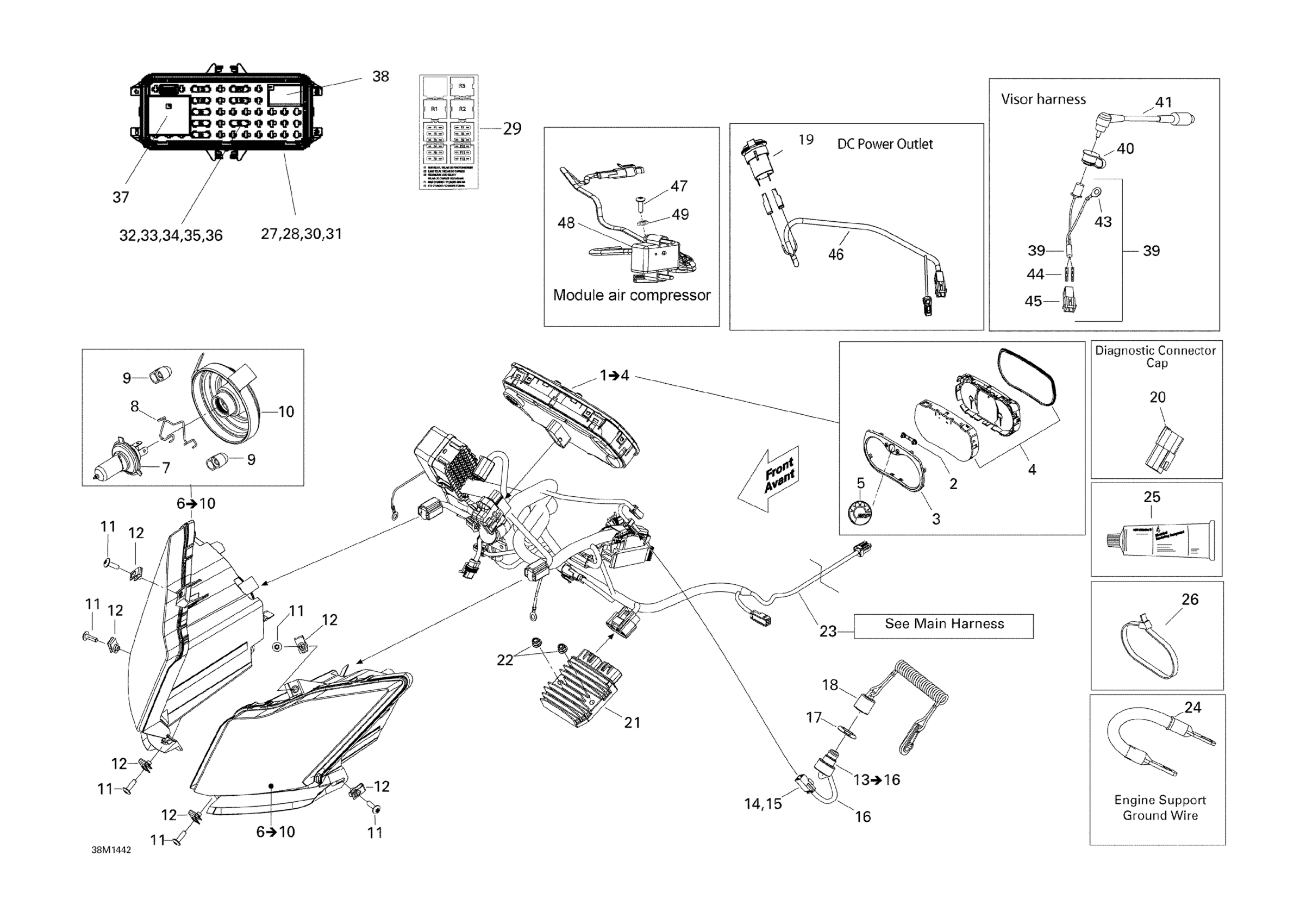

Ski-Doo EXPEDITION SE 1200 XU, 2014 Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$615.35

2

Speedometer Button | XTP

415129355

Unavailable

3

Gauge Ring

415129348

Unavailable

4

Lens | XTP

415129349

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

Unavailable

10

Rubber Cap Protector

219800280

Unavailable

11

Torx Screw M6 X 20

250000722

Unavailable

12

Lever Axle

417223164

$4.25

13

DESS Switch

515177249

Unavailable

14

Male Terminal

515175232

$1.49

15

Male Housing, 3 Circuits

515175494

$15.35

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$2.72

18

DESS

515178284

Unavailable

19

DC Outlet

710001248

$31.17

20

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

23

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177503

Unavailable

24

Ground Wire

515176883

$27.66

25

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

26

Tie Wrap 94 mm | 4X4

293750001

$0.83

26

Tie Wrap 142 mm

293750002

Unavailable

26

Tie-Rap 180 mm

414115200

$0.09

26

Tie Wrap 368 mm

293750008

$0.85

27

Fuse Puller

710000781

$8.29

28

Fuse Cover

710001026

$17.52

29

FUSE DECAL 1200 - Call your local BRP dealership

516004919

Unavailable

30

Foam

278002172

Unavailable

31

Fuse Box Base Ass´y

415129856

$41.57

32

Little Fuse, 5 Amperes

710000742

Unavailable

33

Little Fuse, 7.5 Amperes

710000743

$8.02

34

Little Fuse, 10 Amperes

710000744

Unavailable

35

Little Fuse, 15 Ampere

710000745

Unavailable

36

Little Fuse, 30 Amperes

710000747

Unavailable

37

Relay, 50 AMP

515176775

$13.86

38

Relay, 30 AMP

515176774

$19.20

39

Visor Harness

515177837

$32.28

40

Cap

572103300

$9.65

41

Extension

515175851

Unavailable

42

Male Terminal

515175232

$1.49

43

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

44

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

45

Male Terminal Housing, 2 Circuits

515175654

$7.48

46

Harness Accessories

515177188

$35.35

47

Hex. Flange Screw M6 X 35

207063544

$1.35

48

Compressor Module | With Air Suspension

515177125

$507.66

49

Flat Washer 6 mm

234061410

Unavailable
