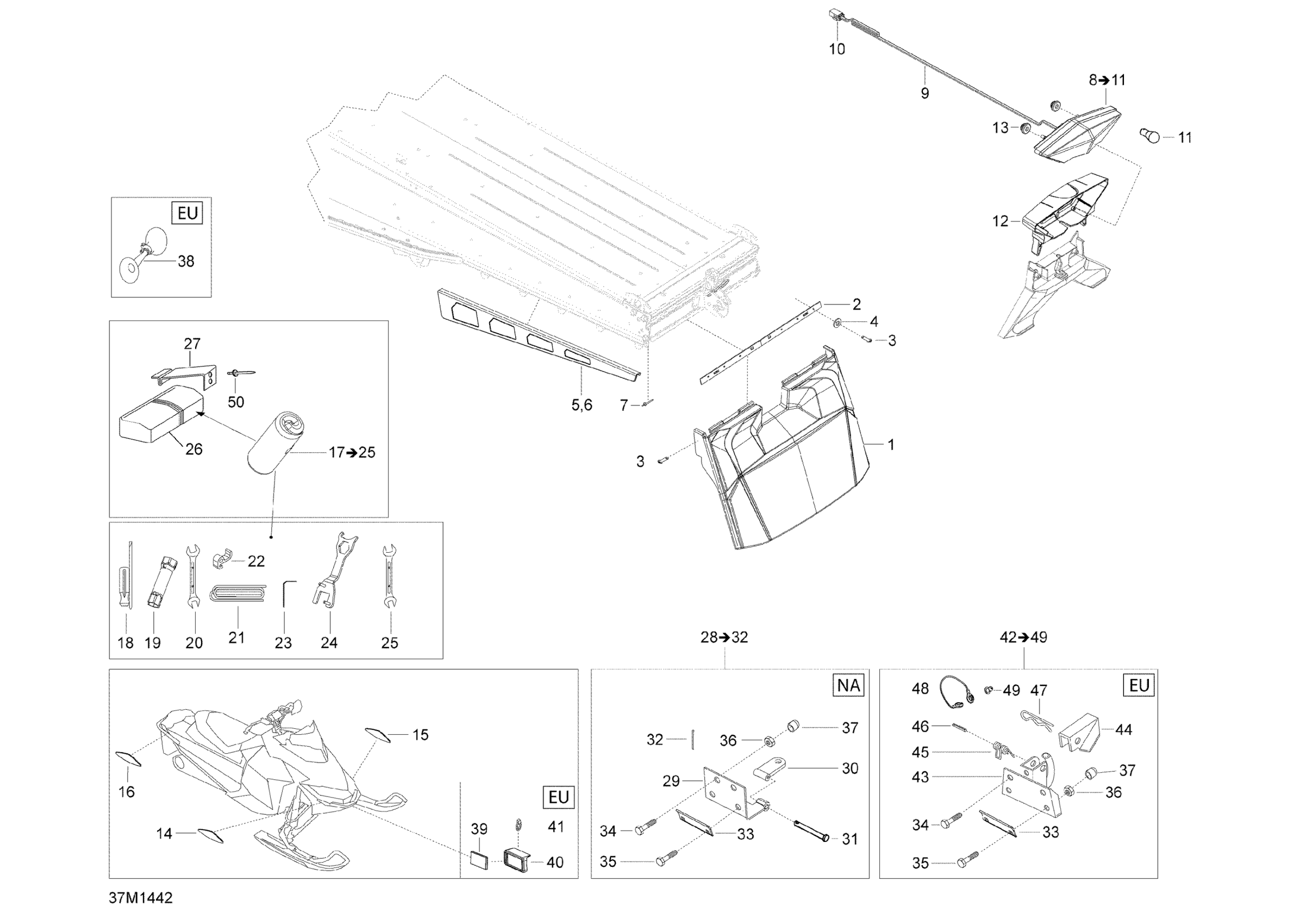

Ski-Doo EXPEDITION SE 1200 XU, 2014 Utilities Diagram

#

Description
Price

1

Snow Guard

520001406

$86.99

1

Black, Snow Guard Long

520001410

$109.99

2

Plate

520001021

$34.58

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

Unavailable

5

RH Protector

520000693

$53.99

6

LH Protector

520000694

$53.99

7

Rivet Hucklok

293150163

$2.82

8

Rear Light | Includes 200 to 200a

520000848

$96.12

9

Rear Wiring Harness

520000849

Unavailable

10

Male Housing, 3 Circuits

515175494

$15.35

11

Bulb

520000758

$7.49

12

Rear Light Cover

511000764

$36.12

13

Stopper Rubber

705014429

Unavailable

14

Yellow, RH Reflector

520001600

$31.51

15

Yellow, LH Reflector

520001601

$31.51

16

Red, Lateral Reflector

705003412

$13.28

16

Amber, Lateral Reflector

705002423

$13.28

17

Tool Kit | Includes 16 To 22

529000066

$46.99

18

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

19

Set Key, 16/21 mm

529000046

$14.49

20

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Spacing Tool

520001142

$10.99

24

WRENCH SUSPENSION - Call your local BRP dealership

520000988

$14.98

25

Wrench

34017

$3.99

26

Tool Kit Rack

5346728

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Hitch Ass'y | Includes 3600 to 3600a

520001398

$71.51

29

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

30

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

31

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

32

Cotter Pin

41031

$6.26

33

Plate

520000727

$33.82

34

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

35

Bolt Carriage M8 X 40

207784044

$1.09

36

Hex. Flange Elastic Nut M8

233281414

Unavailable

37

Cover | Model-T3

28056

$5.52

38

Horn

549011291

$35.35

39

Reflector (Bright)

21118

$26.89

40

Deep Black, Reflector Support

520000871

$5.29

41

TIE RAP - Call your local BRP dealership

27120

Unavailable

42

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.99

43

Not Available As Spare Part - Friction Washer

Unavailable

44

LOCKING PLATE - Call your local BRP dealership | Model- EUROPE

520001041

Unavailable

45

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

46

Pin

41012

$5.22

47

Hair pin

41029

$4.28

48

Retainer Cable

293750069

$13.77

49

Avex Rivet

390909100

$0.29

50

Rivet

36108

$1.85
