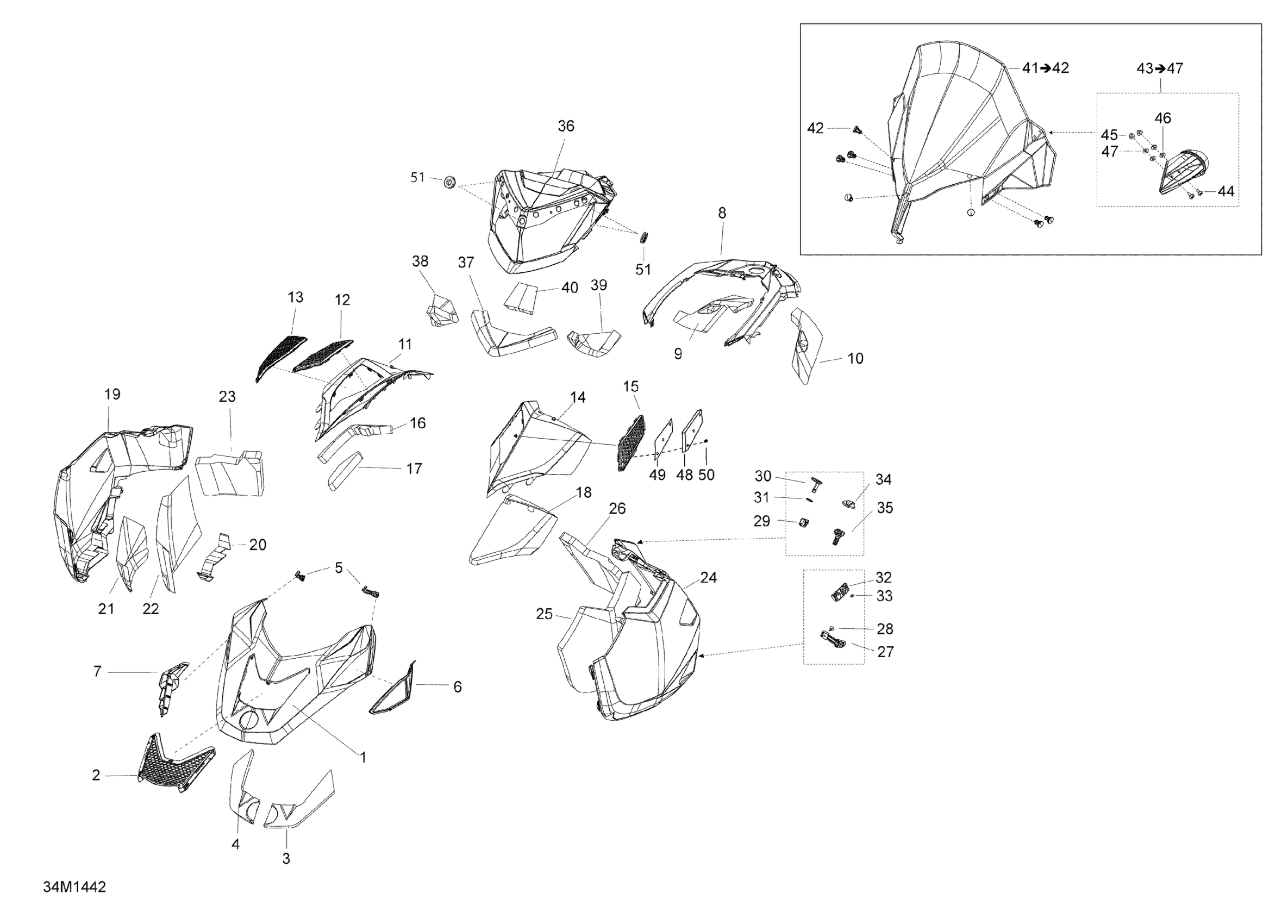

Ski-Doo EXPEDITION SE 1200 XU, 2014 Hood, Windshield And Console Diagram

#

Description
Price

1

White Hood

517304814

Unavailable

2

Hood Grille

517304843

$82.28

3

Insulator

517304330

$34.58

4

Insulator

517304214

$29.97

5

Latch Pannel

517304289

$9.91

6

Air Filter

508000609

$46.12

7

Scoop Grille

517306980

$34.58

8

Black, Console

517305220

$138.43

9

Insulator

517304318

$49.20

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

White, RH Side Access Panel

517304826

Unavailable

12

RH Access Panel Grille

517304015

$33.82

13

RH Lower Acces Grille

517304016

$29.20

14

White, LH Side Access Panel

517304837

Unavailable

15

LH Access Panel Grille

517303893

$33.82

16

Insulator

517304311

$63.05

17

Insulator

517304312

$29.97

18

Insulator

517304313

$63.05

19

Black, RH Side Panel

517306970

$235.35

20

Aluminium Foil

517304215

$18.43

21

Aluminium Foil

517304216

$20.74

22

Aluminium Foil

517304512

$26.89

23

RH Rear Foam

517304310

$62.28

24

Black, LH Side Panel

517306973

$207.66

25

LH Foam

517303891

$53.05

26

LH Rear Foam

517304309

$62.28

27

Latch-Panel

517304572

$9.48

28

Pop Rivet 3/16”

293150108

$1.23

29

Handle Fastener Quarter-Turn

517304297

$14.62

30

Quarter-Turn Handle

517304296

Unavailable

31

Locking Plate

517304538

$4.29

32

Side Panel Support | Except Package SWT

517304497

$18.43

33

Rivet

36005

Unavailable

34

Black Latch Kit | Includes 390 to 400

860200239

$16.12

35

Latch-Panel

517306057

$19.47

36

Indicator Support

517304272

$169.20

37

Insulator

517304314

$63.82

38

Insulator

517304315

$29.97

39

Insulator

517304316

$29.97

40

Insulator

517304319

$29.97

41

Windshield Ass'y

860201000

$213.82

42

Button

517304744

$1.90

43

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51

44

Torx Truss Screw M6 X 16

250000721

Unavailable

45

Domed Nut M6

232361493

$1.77

46

Rubber Washer 5 mm

250200024

$1.77

47

Washer

20117

$5.22

48

Insulator

517305311

$11.45

49

Grille plate

502007312

$29.20

50

Black, Dart

414644300

$0.78

51

Grommet

517303756

Unavailable
