Description

Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033969

$25.35

2

Fuel Tank Cap 95 Octane | Europe

513033723

$25.35

3

Fuel Sensor

513033538

$77.66

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

$46.12

8

Clip

414227300

$1.45

9

Protector Tube

504153074

$12.58

10

Grommet

280000674

$4.42

11

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$257.66

12

O-Ring

415129509

$18.43

13

Fuel Filter

415129510

$23.05

14

O-Ring

415129511

$16.89

15

Wave Washer

415129512

$18.43

16

Screw

415129513

$9.00

17

Cover

415129685

$29.97

18

Fuel Pump Ring

415129569

Unavailable

19

Fuel Filter

415129451

$23.05

20

Ring

513033180

$17.66

21

Gasket

513033334

$23.05

22

Clamp

513033628

$20.74

23

Hose Ass'y | Includes 27 to 28

513033583

$77.66

24

Locking Clip

513033135

$5.11

25

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

26

FOAM - Call your local BRP dealership

513033640

Unavailable

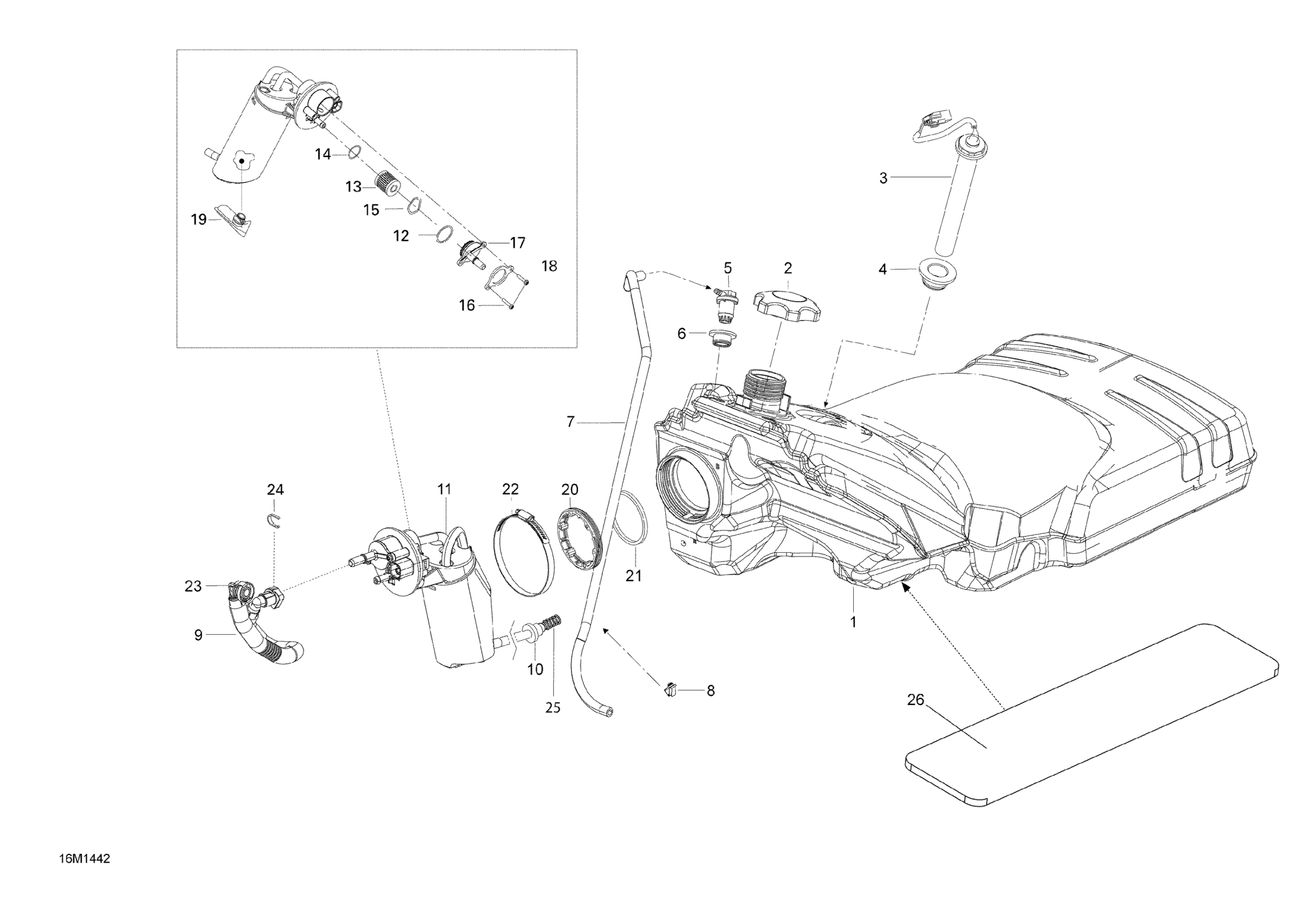

Ski-Doo EXPEDITION SE 1200 XU, 2014 Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Fuel Tank Cap

Fuel Tank Cap 95 Octane | Europe

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Clip

Protector Tube

Grommet

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

O-Ring

Fuel Filter

O-Ring

Wave Washer

Screw

Cover

Fuel Pump Ring

Fuel Filter

Ring

Gasket

Clamp

Hose Ass'y | Includes 27 to 28

Locking Clip

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

FOAM - Call your local BRP dealership
