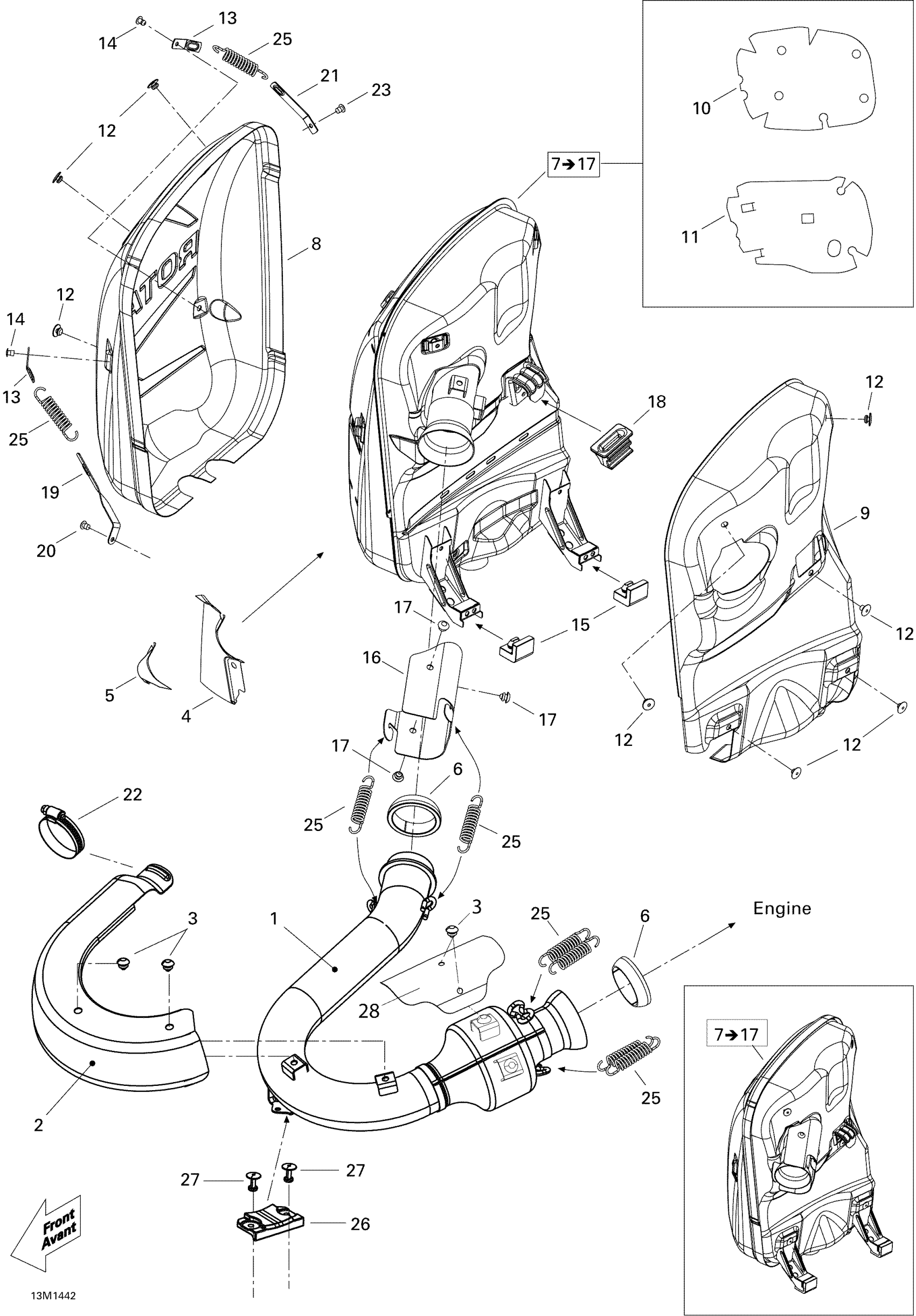

Ski-Doo EXPEDITION SE 1200 XU, 2014 Exhaust System Diagram

#

Description
Price

1

Short Tube Ass'y

514055076

$843.25

2

Exhaust Deflector

514054397

$42.51

3

Rivet 6,4 mm

293150173

$3.88

4

REFLECTIVE SHEET - Call your local BRP dealership

514054398

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

514054399

Unavailable

6

Exhaust Gasket

514054174

$26.84

7

Muffler Ass'y | Includes 400 to 400k

514054931

$698.48

8

RH HEAT SHIELD - Call your local BRP dealership

514054474

Unavailable

9

LH HEAT SHIELD - Call your local BRP dealership

514054369

Unavailable

10

INSULATING WOOL - Call your local BRP dealership

514054256

Unavailable

11

INSULATING WOOL - Call your local BRP dealership

514054257

Unavailable

12

Pop Rivet 3/16”

390910000

$0.55

13

Spring Bracket

514054522

$6.09

14

Avex Rivet

390909200

$0.28

15

Lower Stopper

514054529

$17.13

16

DEFLECTOR - Call your local BRP dealership

514054396

Unavailable

17

Rivet 6,4 mm

293150173

$3.88

18

Stopper

514054346

$17.88

19

Spring Bracket

514055030

$10.24

20

Avex Rivet

390909100

$0.28

21

SPRING BRACKET - Call your local BRP dealership

514054484

Unavailable

22

Tridon Clamp

293650036

$5.69

23

Avex Rivet

390909200

$0.28

25

Spring

514054226

$6.01

26

Bumper

514054275

$14.21

27

Not Available As Spare Part - Friction Washer

Unavailable

28

DEFLECTOR - Call your local BRP dealership

514054724

Unavailable
