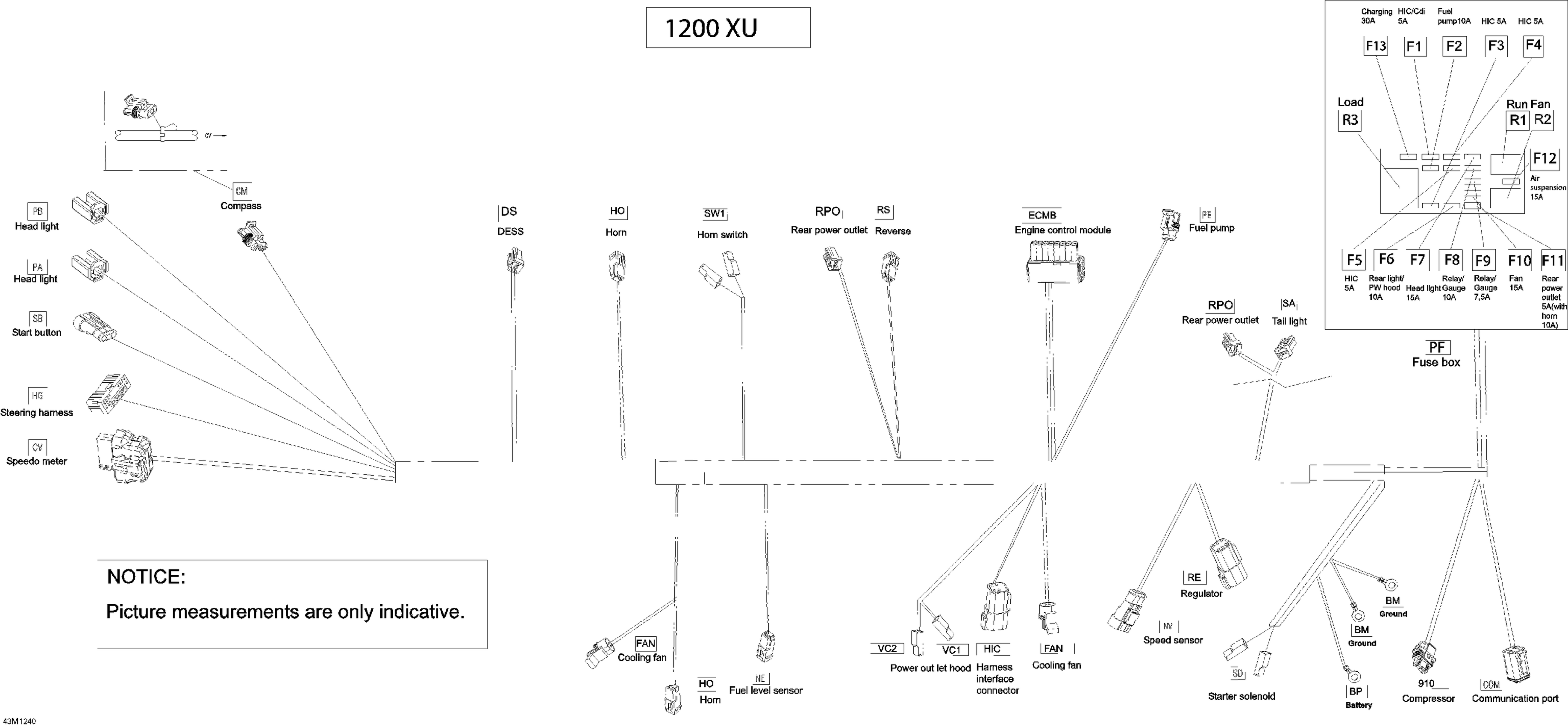

Ski-Doo Expedition SE 1200 XU, 2012 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177076

Unavailable

910

Female Housing, 3 Circuits

409209600

Unavailable

910

Tie Wrap 142 mm

293750002

Unavailable

910

Wire Seal

515176621

Unavailable

910

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

BM

Open Barrel

278000992

$1.79

BP

Open Barrel

278000992

$1.79

CM

Female Housing, 3 Circuits

409209600

Unavailable

CM

Tie Wrap 142 mm

293750002

Unavailable

CM

Wire Seal

515176621

Unavailable

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

Unavailable

COM

Sealing Cap

293000052

Unavailable

COM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

Unavailable

CV

Plug

515175812

Unavailable

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

Female Terminal

515175806

$0.81

CV

Female Housing

710000399

Unavailable

CV

Female Terminal

710001131

Unavailable

DS

Female Terminal

515175231

Unavailable

DS

Female Housing, 3 Circuits

515175495

$15.35

ECMB

ECM Connector

420664450

$26.89

ECMB

COVER - Call your local BRP dealership

515175885

$5.31

ECMB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

ECMB

LOCK - Call your local BRP dealership

515175884

Unavailable

ECMB

Latch

515175883

$7.48

ECMB

SEAL - Call your local BRP dealership

515175886

Unavailable

ECMB

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

F

Little Fuse, 5 Amperes

710000742

Unavailable

F

Little Fuse, 7.5 Amperes

710000743

$8.02

F

Little Fuse, 10 Amperes

710000744

Unavailable

F

Little Fuse, 15 Ampere

710000745

Unavailable

F

Little Fuse, 20 Amperes

710000746

Unavailable

F

Little Fuse, 30 Amperes

710000747

Unavailable

FAN

Housing

710000568

Unavailable

FAN

Male Terminal

515176164

Unavailable

FAN

Wire Seal

515176621

Unavailable

HG

Female Terminal

515175231

Unavailable

HG

Female Terminal

515175282

$6.43

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HIC

Male Connector, 4 Circuits | CE

278000739

$14.92

HIC

Male Lock, 4 Circuits | CE

278000738

$2.91

HIC

Sealing Cap

293000052

Unavailable

HIC

Female Terminal

278001665

Unavailable

HO

Female Terminal

515175231

Unavailable

HO

Female Housing, 2 Circuits

515175658

Unavailable

NE

Male Terminal

515175232

$1.49

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NV

Housing

710000568

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

PE

Female Terminal

278001014

Unavailable

PE

Female Housing, 2 Circuits

409209500

$13.48

PE

Wire Seal

278001013

Unavailable

PF

Fuse Puller

710000781

$8.29

PF

Fuse Cover

710001026

$17.52

PF

Foam

278002172

Unavailable

PF

Fuse Box Base Ass´y

415129856

$41.57

R

Relay, 50 AMP

515176775

$13.86

R

Relay, 30 AMP

515176774

$19.20

RE

Female Housing, 3 Circuits

710000879

Unavailable

RE

Cap

710000882

$9.19

RE

Seal

710000881

Unavailable

RE

Female Terminal

710000877

Unavailable

RPO

Male Housing, 3 Circuits

515175494

$15.35

RPO

Male Terminal

515175232

$1.49

RS

Female Housing, 3 Circuits

409209600

Unavailable

RS

Wire Seal

515176621

Unavailable

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

Unavailable

SA

Female Housing, 3 Circuits

515175495

$15.35

SB

Housing

710000568

Unavailable

SB

Male Terminal

515176164

Unavailable

SB

Wire Seal

515176621

Unavailable

SD

Female Terminal

409010100

$5.46

SD

Female Terminal Housing, 1 Circuit

409010400

$7.48

SD

Tie Wrap 94 mm | 4X4

293750001

$0.83

SW1

Female Terminal

409010100

$5.46

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC1

Female Terminal

409010100

$5.46

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.48
