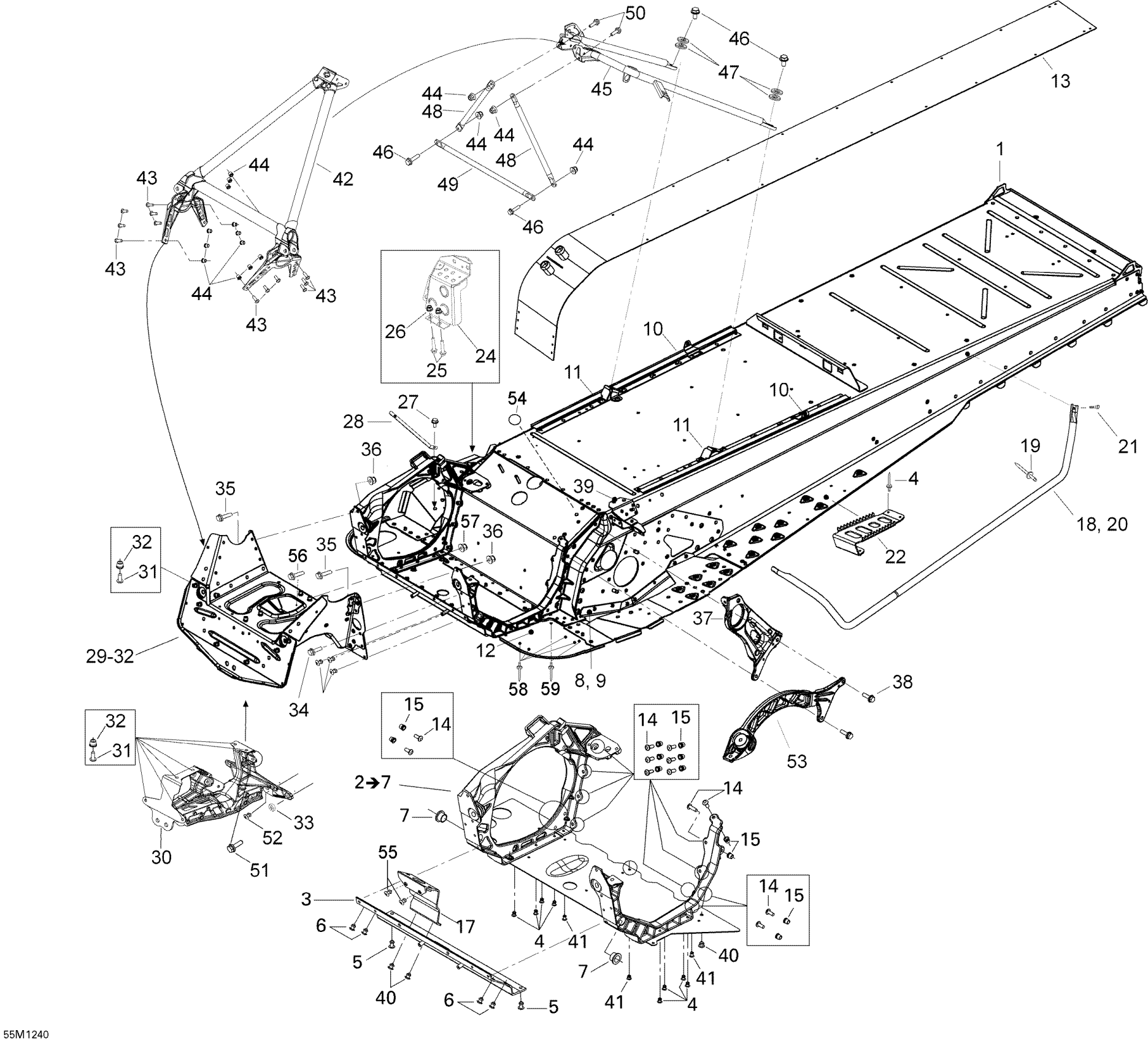

Ski-Doo Expedition SE 1200 XU, 2012 Frame and Components Diagram

#

Description
Price

1

Frame XU 4TEC SC-5

518326985

Unavailable

2

Module E | Engine 1200 4-TEC

518328187

$880.57

3

Front Member

518326198

$58.18

4

Stavex Rivet

293150144

$0.75

5

Hemlock Rivet 6.5 mm

293150120

$7.01

6

Hemlock Rivet, 6.5 mm

293150119

$3.88

7

Leg Bushing

505072690

$5.75

8

Drive Axle Cover LH

518326439

Unavailable

9

Drive Axle Cover RH

518326440

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

11

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

12

LH Frame Corner

518325524

$50.72

12

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

13

Radiator Tunnel

509000645

$730.57

14

Hex. Flange Screw M6 X 20

207662044

$1.91

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

MAG Engine Support

518325371

$73.10

18

LH Footboard Support Tube

518326963

$123.10

19

Rivet Hucklok

293150163

$2.73

20

RH Footboard Support Tube

518326964

$123.10

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$17.88

24

Toe Hook LH

518327024

Unavailable

24

TOE HOOK RH - Call your local BRP dealership

518326465

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Torx Screw M6 X 20

250000722

$1.54

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member | Package LE

518328392

$586.54

30

Front Suspension Support

518327487

$259.67

31

Hex. Flange Screw M6 X 20

207662044

$1.91

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Hexagonal Head Screw

210262050

$2.00

35

Hex Flange Screw M6 x 25

250000522

$4.15

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

39

Fastening Bracket

605355235

Unavailable

40

Hemlock Rivet, 6.4 mm

293150174

$6.24

41

Stavex Rivet

293150144

$0.75

42

Front Member

518326970

$267.88

43

Hex. Flange Screw M6 X 20

207662044

$1.91

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

$20.12

49

Center Column Support

518325115

$20.12

50

Hex Flange Screw M6 x 25

250000522

$4.15

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

52

Ornit Rivet 6,5 X 14.5

293150266

$1.88

53

Brace Ass'y | Includes 200 to 200a

518327392

$179.82

54

Adhesive Patch

518325560

$4.21

55

Hex. Flange Screw M6 X 16

207661644

$0.70

56

Hex Flange Screw M6 x 25

250000522

$4.15

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

58

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

59

Avex Rivet

390909200

$0.28
