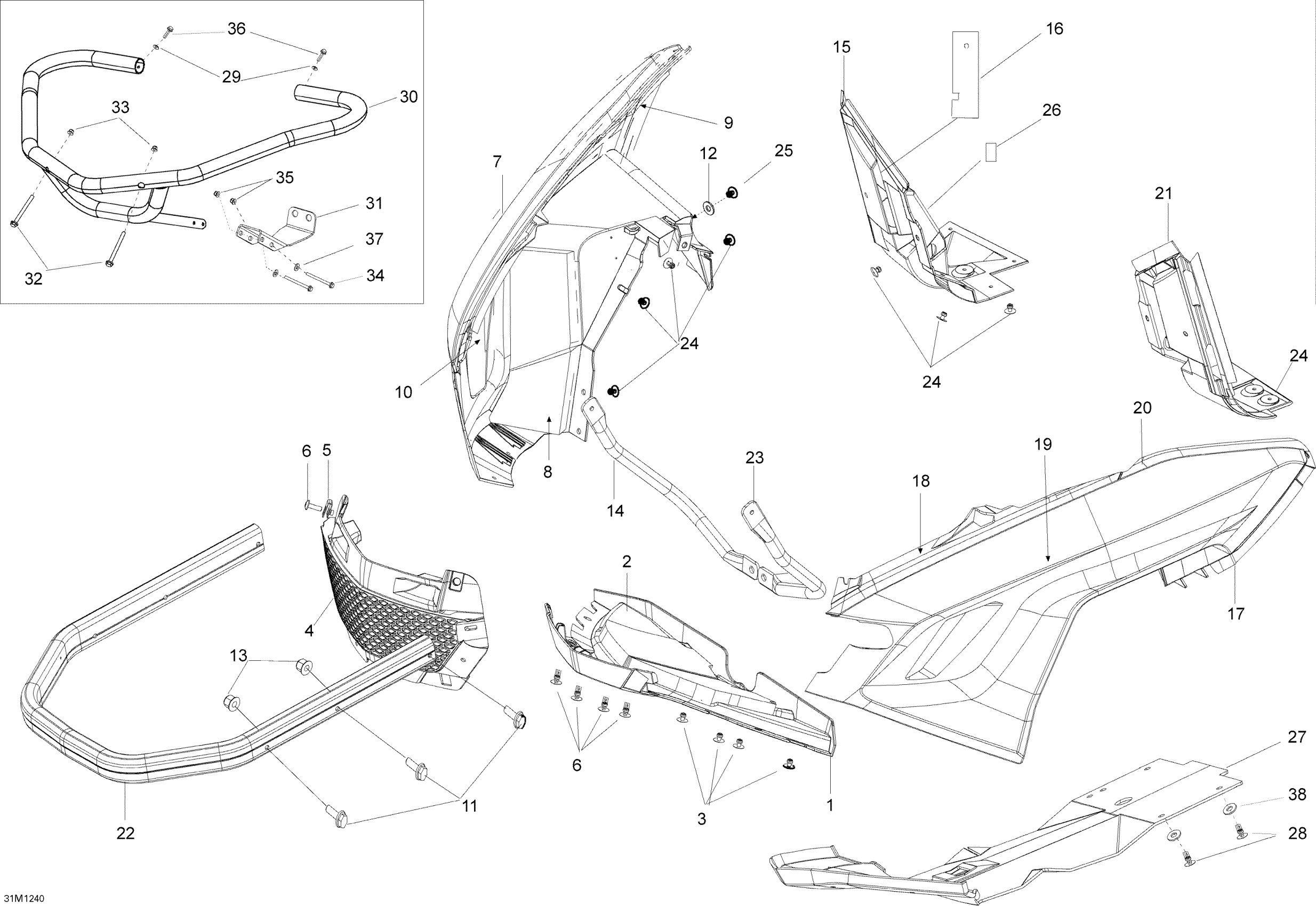

Ski-Doo Expedition SE 1200 XU, 2012 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$136.89

2

Insulator

502007002

$27.66

3

Pop Rivet 3/16"

293150103

Unavailable

4

Grille

502007145

$52.28

5

Panel Nut M6 X 1.0

250100198

Unavailable

6

Torx Screw M6 X 20

250000722

Unavailable

7

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$155.35

8

Insulator | Model LE, SE

502007006

$27.66

9

Insulator | Model LE, SE

502007008

Unavailable

10

Insulator | Except Package EXTREME

502007009

$17.66

11

Hex. Flange Screw M6 X 40

207664044

$2.18

12

WASHER M5 - Call your local BRP dealership

234052490

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

RH Bumper Support

502007015

$94.58

15

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$93.05

16

Aluminium Foil

502007038

$16.12

17

Deep Black, LH Bottom Pan | Package SE

502008002

$179.97

18

Insulator

502007003

$27.66

19

INSULATOR - Call your local BRP dealership

502007004

Unavailable

20

INSULATOR - Call your local BRP dealership

502007005

Unavailable

21

LH Rear Bottom Pan

502008012

$103.05

22

Black Bumper

502007229

$129.20

23

LH Bumper Support

502007014

$94.58

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

25

Pop Rivet 3/16"

390402200

$0.26

26

REFLECTIVE SHEET - Call your local BRP dealership

M44110

Unavailable

27

Black Skid Plate Front Xu Aa

502007164

Unavailable

28

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

29

Washer

20117

$5.22

30

BUMPER F KIT - Call your local BRP dealership

860200350

Unavailable

31

Lower Fastening Plate

502007022

$33.82

32

Socket Head Screw M8 X 45

205084544

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

Hex. Screw M6 X 60

207066044

$0.56

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

37

Flat Washer 6 mm

234061410

Unavailable

38

Flat Washer 8 mm

234082410

$1.11
