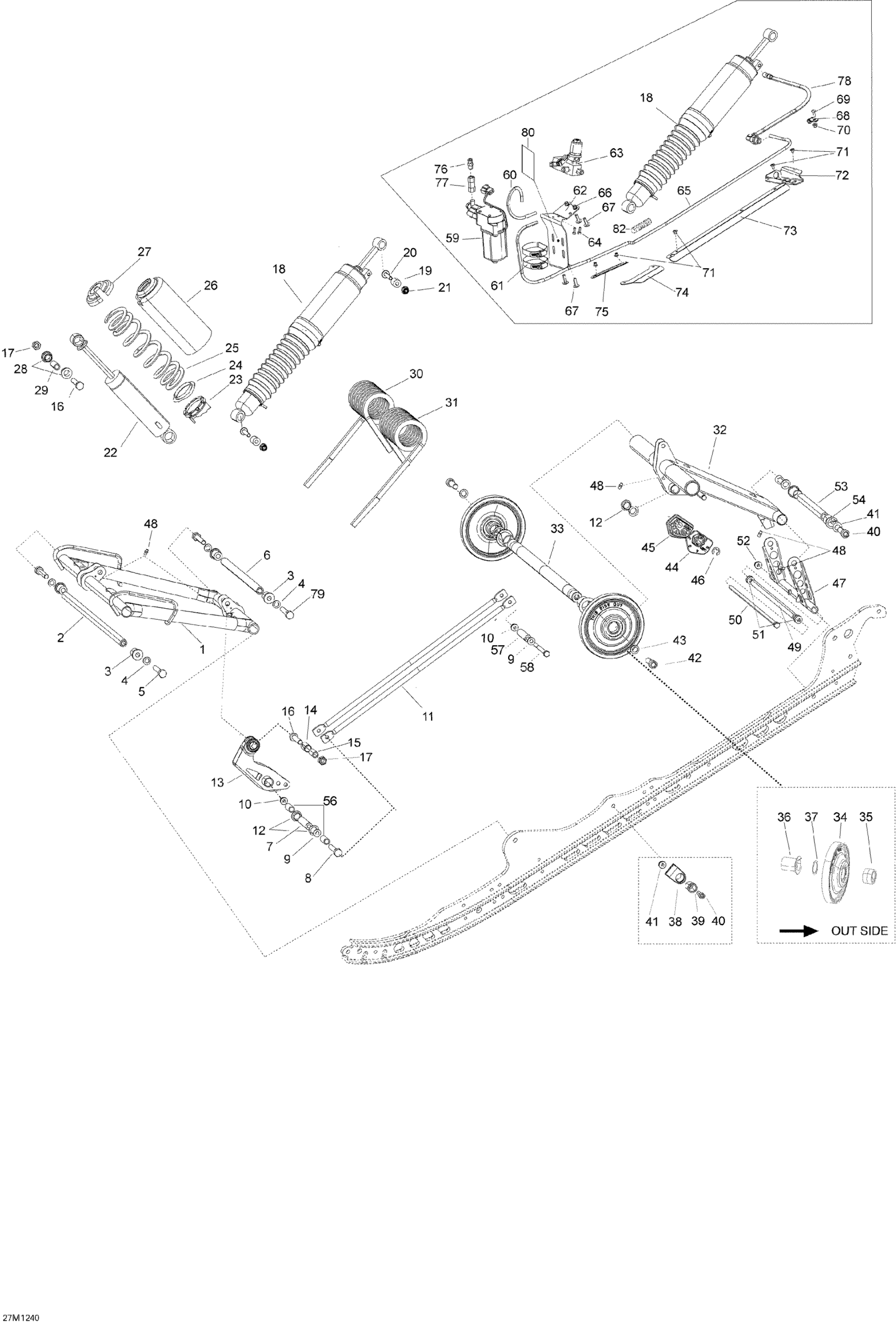

Ski-Doo Expedition SE 1200 XU, 2012 Front Arm Diagram

#

Description
Price

1

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$212.28

2

Upper Shaft

503191391

$34.58

3

Bushing

503189324

$11.17

4

Washer

503189564

Unavailable

5

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

6

Lower Shaft

503191390

Unavailable

7

Bar Axle (Short)

503190113

$37.66

8

Hex. Screw M8 X 130

230083044

Unavailable

9

Washer

503189157

$3.20

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Link Rod

503193026

Unavailable

12

Swivel Bushing

503191555

Unavailable

13

Rocker

503192211

$78.43

14

Bushing

503193037

$15.35

15

Bushing | Includes 240d to 240d1

503189282

Unavailable

16

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

17

Elastic Locking Nut M10 X 1.5

233601416

$1.68

18

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

19

Bushing

414936000

Unavailable

20

Hex. Flange Screw M8 X 40

207684044

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

Center Shock

503192266

Unavailable

23

Adjustment Cam

505073625

Unavailable

24

Spring Guide

503191872

Unavailable

25

Black, Spring

503189686

$66.89

26

Protector

503193663

Unavailable

27

Spring Stopper

706200881

$10.30

28

Urethane Bushing

503189117

Unavailable

29

Bushing | Includes 240d to 240d1

503189282

Unavailable

30

Black RH Square Spring

503192377

$109.20

31

Black LH Square Spring

503192378

Unavailable

32

Rear Arm

503191398

$258.43

33

Upper Shaft

503191405

$89.20

34

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

Unavailable

35

Retaining Ring

503191099

$5.85

36

Cushion

503191451

Unavailable

37

Washer

503190328

$11.34

38

Spring Support Kit

861805547

Unavailable

39

Spring Support Kit

861805547

Unavailable

40

Socket Head Screw M8 X 25

205082544

Unavailable

41

Hex. Flange Elastic Nut M8

233281414

Unavailable

42

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

43

Washer

503189276

Unavailable

44

LH Cam Adjuster

503191565

Unavailable

45

RH Cam Adjuster

503191566

Unavailable

46

E-Circlip

293370013

Unavailable

47

Pivot Arm | Includes 3000j to 3000j3

503195154

Unavailable

48

Grease Fitting

408200700

Unavailable

49

Axle Pivot

503191396

Unavailable

50

Bolt 369MM

503195156

Unavailable

51

Washer

503189157

$3.20

52

Hex. Flange Elastic Nut M8

233281414

Unavailable

53

Lower Shaft

503192330

$46.12

54

Cushion

503191640

$5.71

56

Spacer

503190114

$15.35

57

Axle Bar (Long)

503190643

$15.35

58

Hex. Screw M8 X 90

207089044

$2.82

59

Compressor

706001349

$436.89

60

Hose 4.32Mm 3000Mm Long

219704415

$44.17

61

Norma Gear Clamp

293650090

$4.38

62

Bracket

503192955

Unavailable

63

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership

503193492

Unavailable

64

Socket Head Screw M4 X 12

205041254

Unavailable

65

HOSE 4.32MM - 1165MM - Call your local BRP dealership

706001097

Unavailable

66

Clinch Nut M6 Hexsert

605636003

$4.12

67

Torx Screw M6 X 20

250000722

Unavailable

68

Clamp

293650256

Unavailable

69

Torx Screw M5 X 14

235551494

$7.31

70

Hex. Flange Elastic Nut M5

233251414

Unavailable

71

Rivet 3/16"

293150102

$0.71

72

BRACKET - Call your local BRP dealership

503193004

Unavailable

73

Hose Protector

503193006

Unavailable

74

Hose Protector

503193007

Unavailable

75

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

76

Connector

706000869

$33.05

77

Check Valve

706000940

$35.35

78

Pneumatic Hose Ass'y

503192649

$123.82

79

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

80

Rubber Damper

503191940

$8.72

82

Tubing 6 Mm 3000Mm Long

219704425

$13.14
