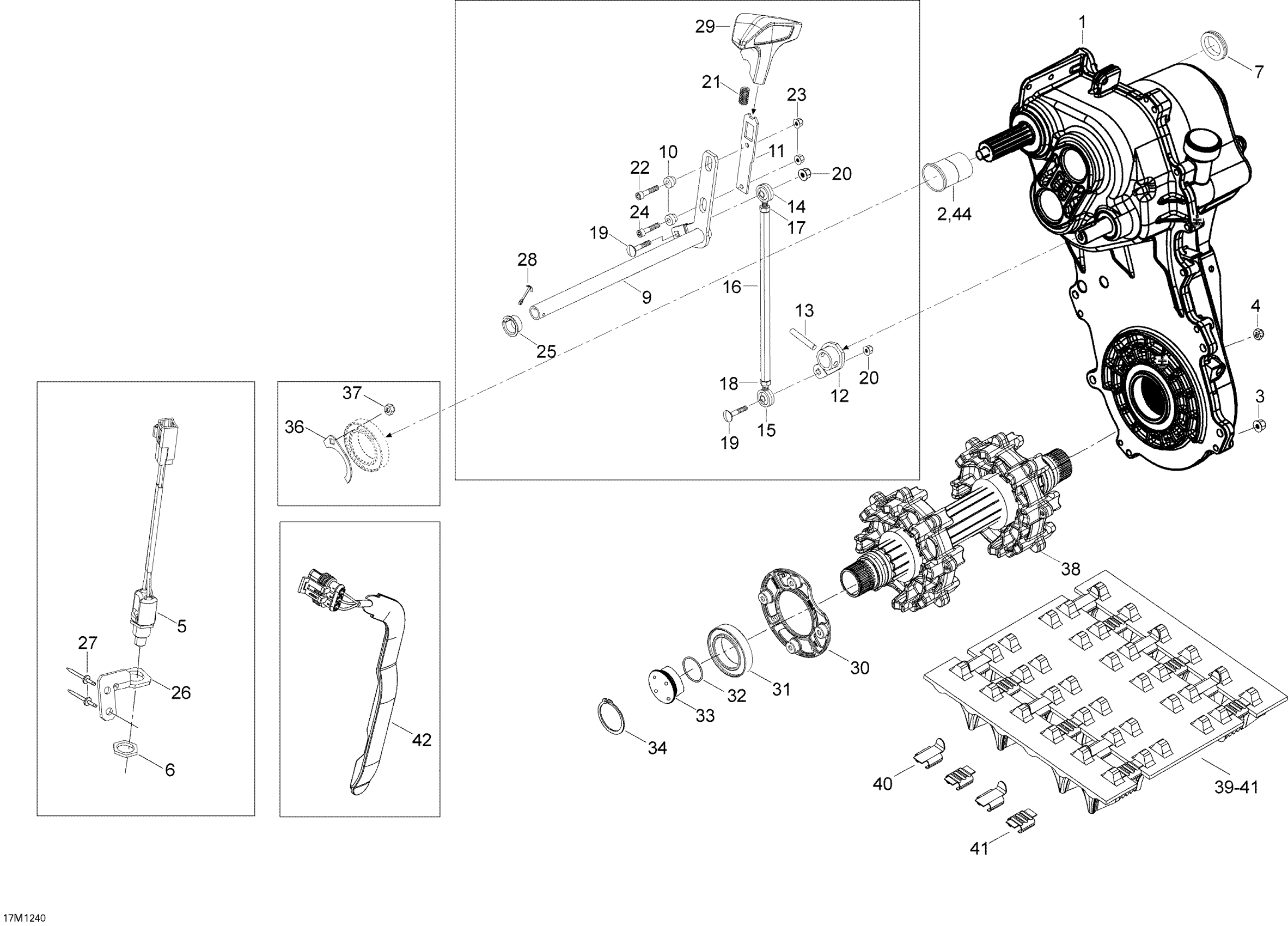

Ski-Doo Expedition SE 1200 XU, 2012 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2,089.99

2

Protective Rubber

504153054

$17.49

3

Hex. Flange Elastic Nut M8

233281414

$1.49

4

Hex. Elastic Stop Nut M8

232581414

$1.49

5

Switch Ass'y

515176472

$74.99

6

Brass Nut

250000373

$7.69

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

9

Lever Shifter

504153288

$159.99

10

Sleeve

504152787

$28.49

11

Shifter Arm

504153287

$52.99

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$6.49

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$1.49

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.59

20

Elastic Stop Nut M6

232561414

$1.78

21

Spring

504152882

$6.99

22

Socket Screw M5 X 25

205052544

$1.69

23

Flange Elastic Nut M5

233251434

$2.09

24

Forming Screw M5 x 16

250000676

$1.49

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$18.49

27

Rivet Hucklok

293150163

$3.09

28

Cotter Pin

250400035

$2.19

29

Handle

504152837

$82.99

30

Retaining Ring

504153886

$21.99

31

Ball Bearing

293350059

$30.99

32

O-Ring

293300122

$2.19

33

Magnetic Cap

504152619

$24.49

34

Circlip

504152572

$7.09

36

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.49

37

Hex. Elastic Stop Nut M8

232581414

$1.49

38

Drive Axle Ass'y | With Gear Box 1.98

504153976

$529.99

39

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1,179.99

40

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Rotation Sensor

504152896

$38.99

44

PROTECTIVE RING - Call your local BRP dealership

504153034

Unavailable
