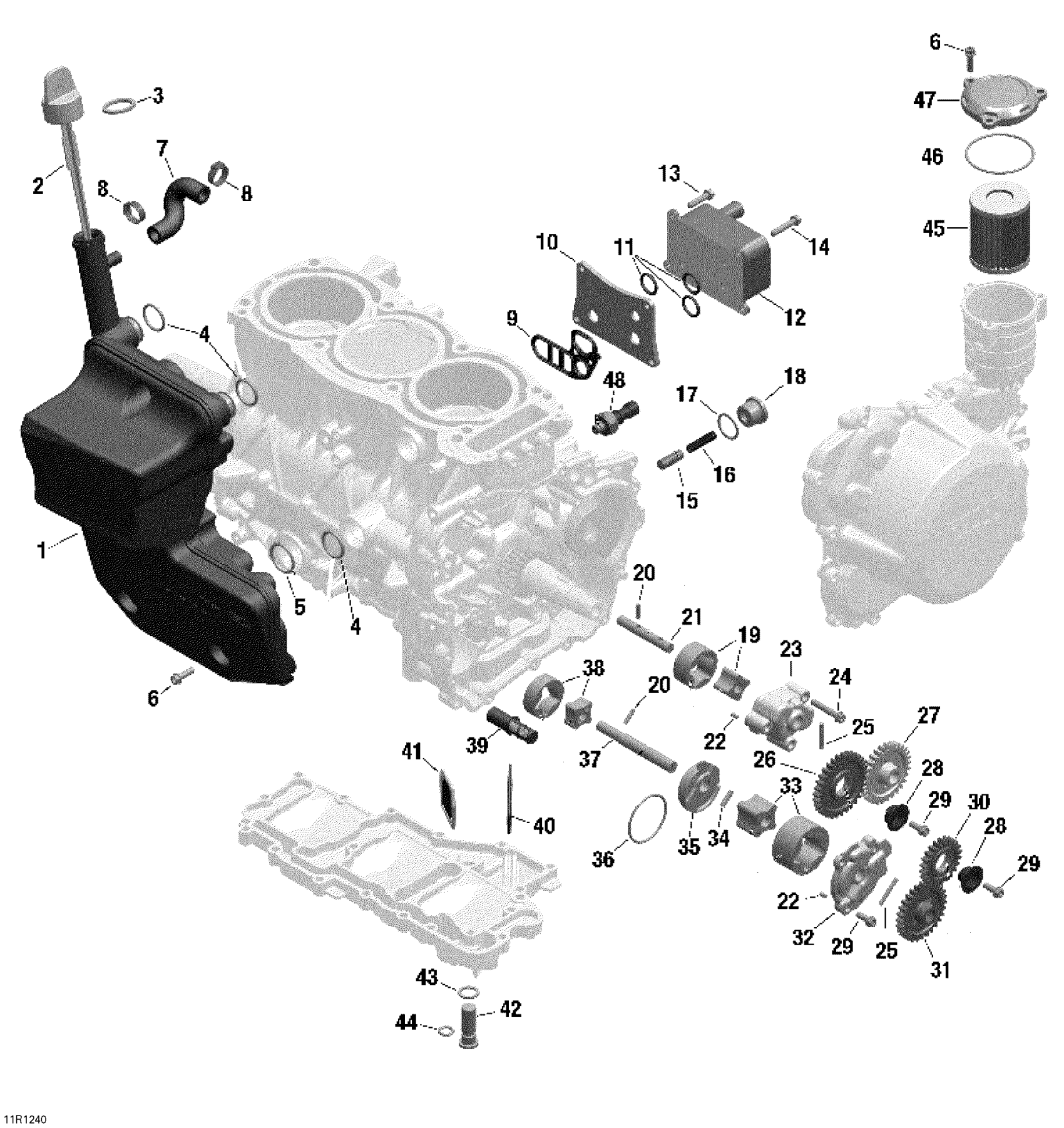

Ski-Doo Expedition SE 1200 XU, 2012 Engine Lubrication Diagram

#

Description
Price

1

Oil Tank Ass'y | Includes 1 to 5

420656386

$144.99

2

Oil Lever Tube Ass'y | Includes 2 to 3

420856661

$24.99

3

Gasket Ring

420431790

$8.79

4

O-Ring

420931634

$16.99

5

O-Ring

420430068

$17.49

6

Torx Flange Screw M6 X 20

420440207

$3.09

7

Air Vent Line

420460021

$17.49

8

Clamp

420951273

$6.49

9

Gasket

420431283

$26.99

10

PLATE - Call your local BRP dealership

420951460

$33.99

11

O-RING - Call your local BRP dealership

420630400

$1.49

12

Oil Radiator

420891914

$124.99

13

Torx Flange Screw M6 X 25

420440234

$3.09

14

Torx Flange Screw M6 X 30

420440647

$2.09

15

Pressure Regulating Piston

420256513

Unavailable

16

Spring

420239445

$14.49

17

Gasket Ring

420650465

$13.49

18

SCREW PLUG M22 X 1.5 - Call your local BRP dealership

420640278

Unavailable

19

Oil Pump Rotor, Suction

420256681

$36.99

20

Needle Pin

420232731

$4.09

21

OIL PUMP SHAFT - Call your local BRP dealership

420837911

$19.49

22

Needle Pin

420929075

$2.19

23

Oil Pump Housing

420611861

$41.99

24

Torx Flange Screw M6 X 35

420641258

$3.49

25

Needle Pin

420232431

$4.49

26

Idle Gear, 31 Teeth

420835055

$24.99

27

Oil Pump Gear, 29 Teeth

420834882

$11.49

28

Graduated Spacer This part replaces 420947390.

420947396

$28.99

29

Torx Flange Screw M6 X 16

420440162

$3.29

30

Idle Gear, 22 Teeth

420835051

$24.49

31

Oil Pump Gear, 28 Teeth

420834887

$11.49

32

Oil Pump Cover

420611980

$37.99

33

Oil Pump Rotor

420256831

$77.99

34

Needle Pin

420632221

$4.49

35

Oil Pump Cover

420611950

$57.99

36

O-Ring

420631830

$2.19

37

OIL PUMP SHAFT - Call your local BRP dealership

420837915

Unavailable

38

Oil Pump Rotor, Pressure

420256671

$34.99

39

OIL SIEVE - Call your local BRP dealership

420856658

Unavailable

40

Oil Sieve

420856650

$15.28

41

Oil Sieve

420856655

$15.28

42

Screw Plug M14 X 1.5

420941841

$24.99

43

Gasket Ring

420230500

$1.99

44

O-Ring

420430115

$2.39

45

Oil Filter

420956124

$20.99

46

O-Ring

420230923

$3.29

47

Oil Filter cover

420612135

$11.99

48

Oil Pressure Switch

420256915

$41.99
