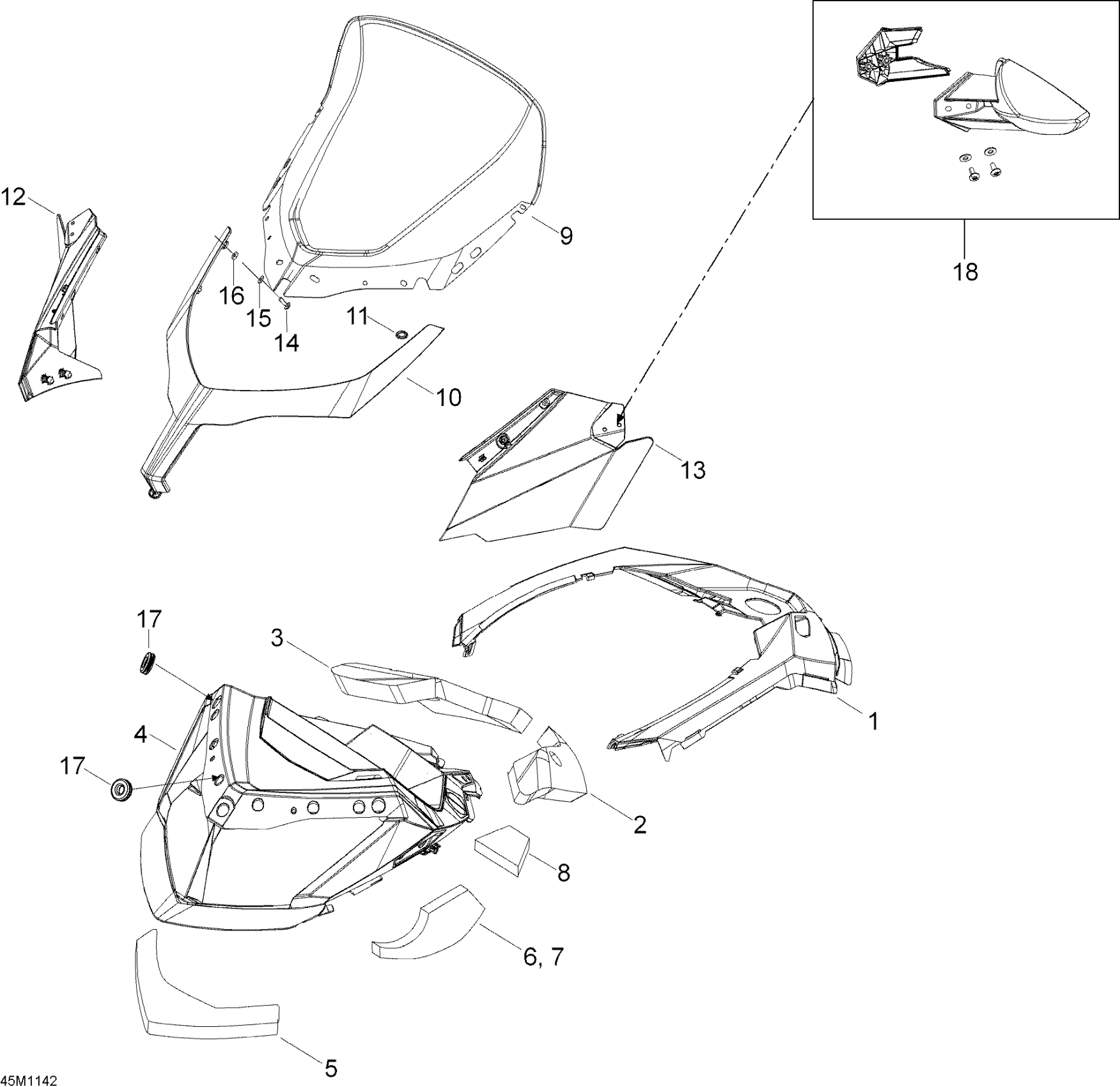

Ski-Doo Expedition SE 1200 XU, 2011 Windshield And Console Diagram

#

Description
Price

1

Black, Console

517304820

$184.99

2

INSULATOR - Call your local BRP dealership

517304317

Unavailable

3

Insulator

517304318

$47.73

4

Indicator Support

517304272

$164.15

5

Insulator

517304314

$61.91

6

Insulator

517304315

$29.07

7

Insulator

517304316

$29.07

8

Insulator

517304319

$29.07

9

Windshield Ass'y

860201000

$207.43

10

Windshield Support Kit

860200230

$35.79

11

Push Nut

732610072

$1.97

12

RH Console Air Deflector

517303745

$41.76

13

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303746

Unavailable

14

Torx Screw K50 X 16

250000720

$1.60

15

Washer M5

250200025

$0.70

16

Rubber Washer 5 mm

250200024

$2.03

17

Grommet

517303756

$3.61

18

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$69.37
