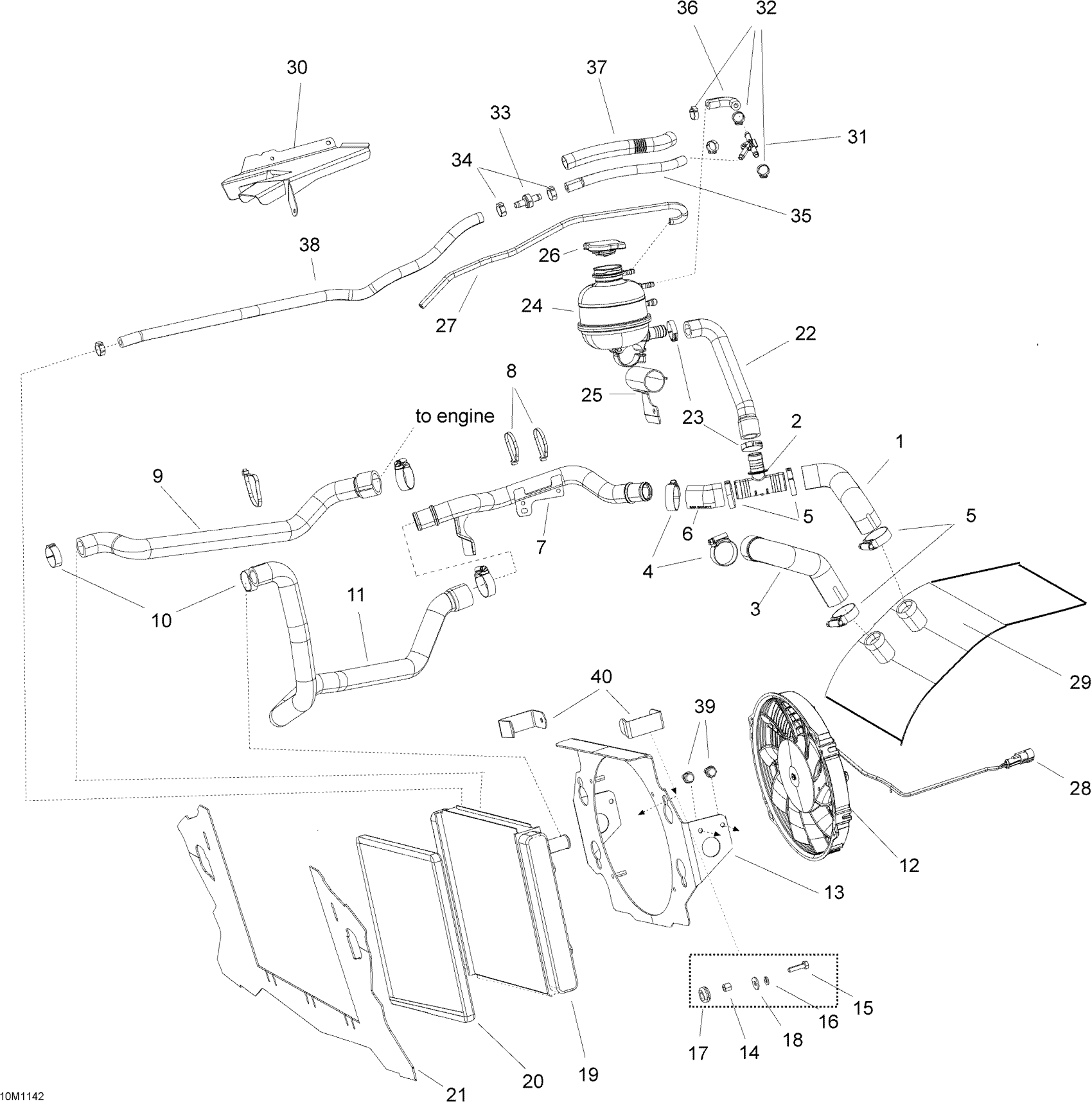

Ski-Doo Expedition SE 1200 XU, 2011 Cooling System Diagram

#

Description
Price

1

HOSE, T-FITTING->FRONT RADIATOR - Call your local BRP dealership

509000779

Unavailable

2

T-Fitting

509000372

$9.03

3

HOSE, THERMOSTAT (RADIATOR) - Call your local BRP dealership

509000592

Unavailable

4

Aba Gear Clamp, 26-38 MM

509000443

$5.64

5

Oetiker Gear Clamp

509000181

$4.15

6

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

7

Water Pipe Aluminum

509000724

$147.73

8

Tie-Rap 180 mm

414115200

$0.10

9

Hose, Front Radiator ( Air Engine)

509000780

$35.79

10

Tridon Clamp

293650016

$9.84

11

Hose, Front Radiator (Engine)

509000781

$24.60

12

Cooling Fan

509000838

$206.69

13

Radiator support | Includes 3340 to 3340a

509000791

$88.78

14

Bushing

605453745

$11.18

15

Hex. Screw M6 X 25

207162544

$1.01

16

Lock Washer M6, Black

234161471

$0.51

17

Grommet

709000582

$4.25

18

Flat Washer 6 mm

234062410

$0.73

19

Radiator

509000787

$208.18

20

Insulation

509000718

$57.43

21

Air Deflector

509000700

$44.00

22

Filling Hose

509000663

$58.18

23

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

24

Coolant Tank

509000421

$84.30

25

Tank Support

509000782

Unavailable

26

Radiator Pressure Cap

509000180

$13.42

27

Hose 6 Mm 15000Mm Long

219704360

$120.12

28

Male Connector, 2 Circuits

278000220

$12.66

29

Radiator Tunnel

509000645

$730.57

30

Air Deflector

509000700

$44.00

31

Y-Fitting

293710140

$7.09

32

Crimp Clamp, 15.3-706R

293650047

$3.03

33

Check Valve

509000153

$16.39

34

Oetiker Clamp

293650140

$2.46

35

Hose-formed

509001069

$13.18

36

Hose

509001070

$11.18

37

Tubing 16 Mm 1000Mm Long

219704408

$7.15

38

Was 509000407 Hose 8 mm

219704420

$46.24

39

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

40

Deflector Clip

509000703

$38.78
