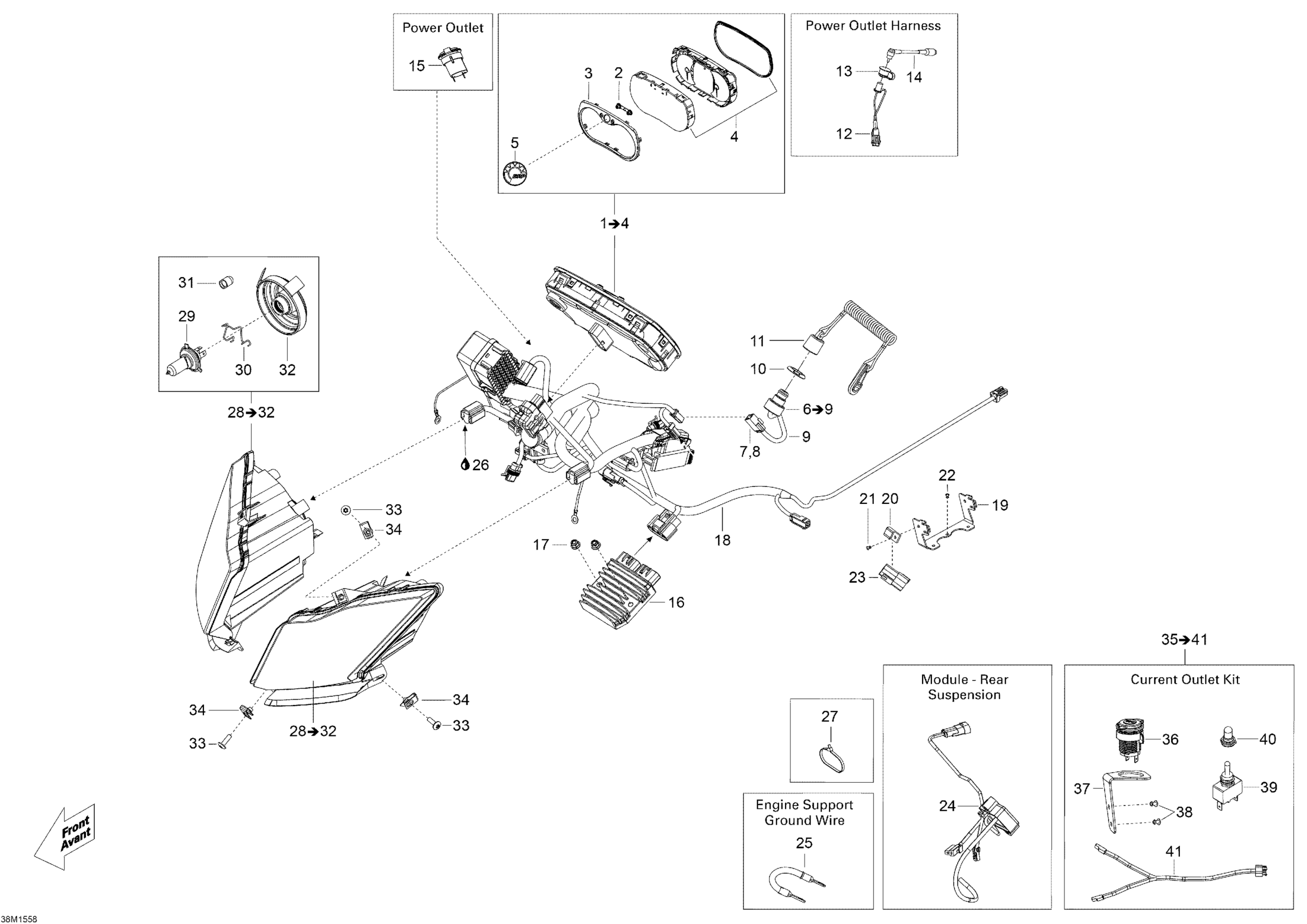

Ski-Doo Expedition SE 1200, 2015 Electrical System _38M1558 Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$615.35

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

6

DESS Switch

515177249

Unavailable

7

Male Terminal

515175232

$1.49

8

Male Housing, 3 Circuits

515175494

$15.35

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$2.72

11

DESS

515178284

Unavailable

12

Visor Harness

515177837

$32.28

13

Cap

572103300

$9.65

14

Extension

515175851

Unavailable

15

DC Outlet

710001248

$31.17

16

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To VMS

515177689

Unavailable

19

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

$35.35

20

Clip

270000141

$8.33

21

Avdel Rivet 3/16"

293150037

$0.47

22

Pop Rivet 3/16"

390402200

$0.26

23

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

24

Compressor Module | With Air Suspension

515177125

$507.66

25

Ground Wire

515176883

$27.66

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Tie-Rap 180 mm

414115200

$0.09

27

Tie Wrap 94 mm | 4X4

293750001

$0.83

27

Tie Wrap 142 mm

293750002

Unavailable

28

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

Unavailable

28

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

Unavailable

29

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cap

515176498

Unavailable

32

Rubber Cap Protector

219800280

Unavailable

33

Torx Screw M6 X 20

250000722

Unavailable

34

Panel Nut M6 X 1.0

250100198

Unavailable

35

CURRENT OUTLET KIT - Call your local BRP dealership | Includes 20 to 20,007

860200285

Unavailable

36

DC Outlet

710001248

$31.17

37

CURRENT OUTLET BRACKET - Call your local BRP dealership

515176801

Unavailable

38

Rivet

36108

$1.85

39

Heat Grip Switch

410110700

$31.51

40

Switch Cover

515175281

$15.03

41

Harness

515176802

$36.89
