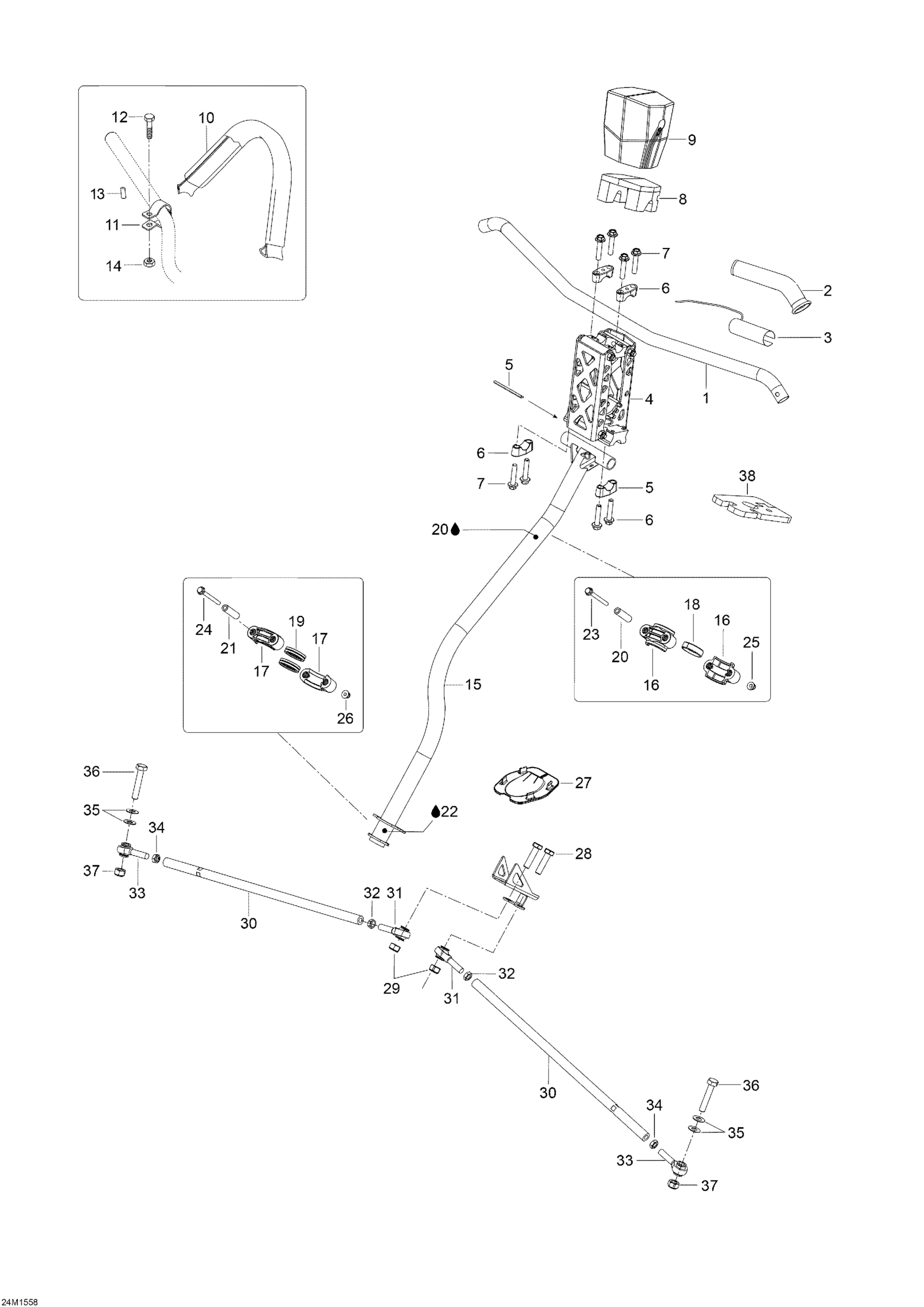

Ski-Doo Expedition SE 1200, 2015 Steering _24M1558 Diagram

#

Description
Price

1

Handle Bar

506152722

$141.01

2

Grip | WAKE This part replaces M5340464.

506152483

$11.31

3

Heated Film, 25W

506152428

$36.54

4

Tilt Steering | Package SE

506152532

$261.16

5

Limiter Plate | Package SE

506152415

$81.31

6

Steering Support | Includes 40 to 40a

506152751

$11.58

7

Hex. Flange Screw M8 x 40

250000285

$0.75

8

Foam | Package SE

506152761

$36.54

9

Steering Cover | Package SE

506152381

$154.99

10

Strap Ass'y | Package XMR

506152115

$41.76

11

Black Support Plate

506152536

$8.34

12

Hex. Flange Screw M6 X 20

207662054

$0.96

13

Bushing | Package XMR

506152156

$5.19

14

Hex. Flange Elastic Nut M6

233261494

$1.45

15

Steering Column

506152964

$183.55

16

Upper Half-Housing

506152508

$7.18

17

Lower Half-Housing

506152217

$5.40

18

Upper Anti-Vibration Gasket

506152509

$4.39

19

Lower Vibration Ring

506152518

$4.39

20

Housing Bushing

506152297

$9.93

21

Housing Bushing

506152297

$9.93

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Hex. Flange Screw M6 X 70

207667056

$4.15

24

Hex. Flange Screw M6 X 70

207667056

$4.15

25

Elastic Flange Nut M6 X 1.0

233261416

$2.00

26

Elastic Flange Nut M6 X 1.0

233261416

$2.00

27

Plate

506152163

$9.93

28

Hex. Screw M10 X 40

207004044

$4.51

29

Elastic Stop Nut M10

232500416

$1.79

30

Tie-Rod

506152498

$35.79

31

LH Thread Ball Joint

506152081

$38.78

32

LH Threaded Hex. Jam Nut M10

250100016

$0.70

33

RH Threaded Ball Joint

506152019

$38.78

34

RH Threaded Hex. Jam Nut M10

732610010

$0.70

35

Washer

506152194

$4.28

36

Hex. Screw M10 X 55

207005544

$2.12

37

Elastic Stop Nut M10

232500416

$1.79

38

Cushion

506152404

$24.60
