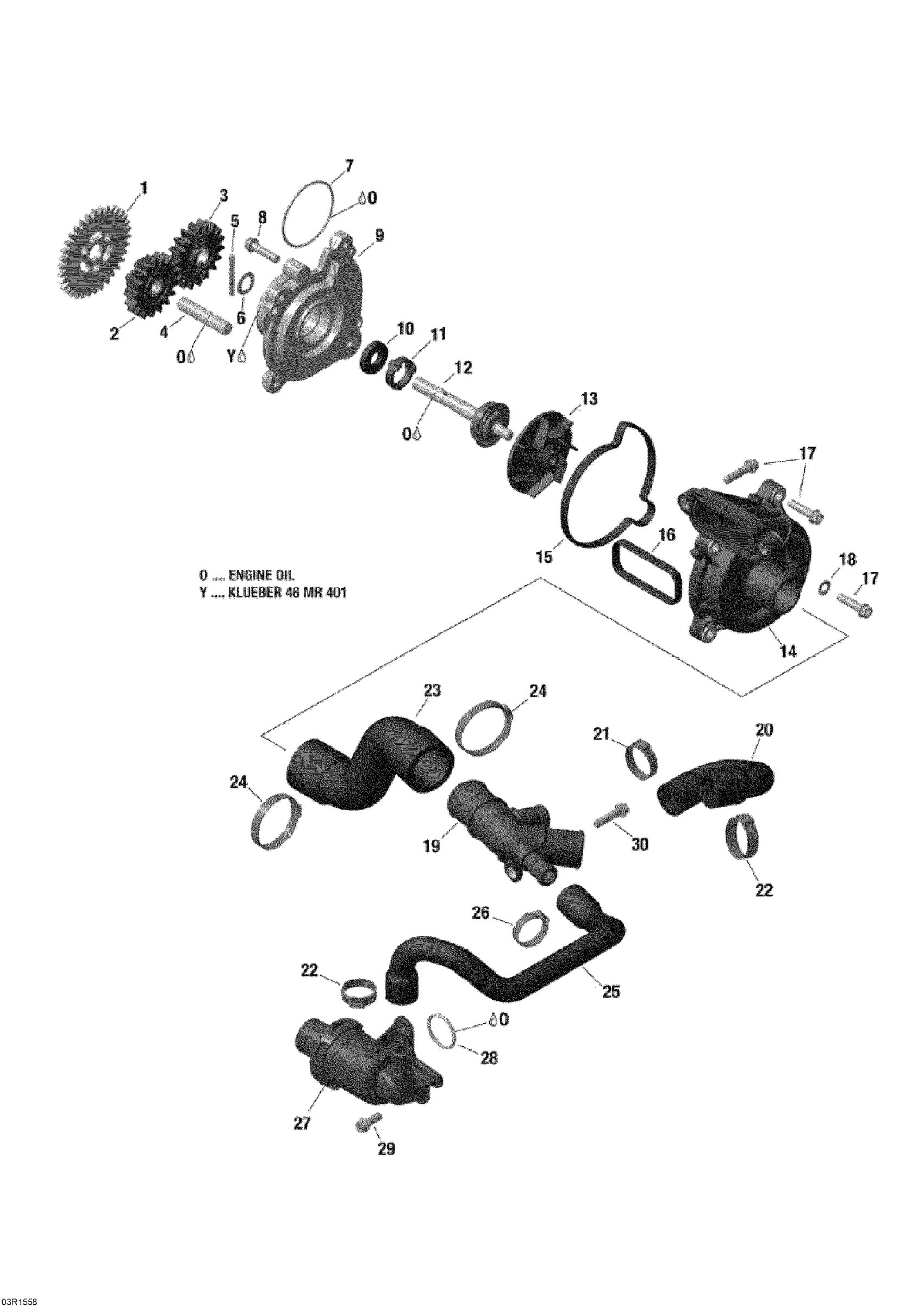

Ski-Doo Expedition SE 1200, 2015 Engine Cooling _03R1558 Diagram

#

Description
Price

1

Idle Gear, 34 Teeth

420835065

$66.89

2

Idle Gear, 17 Teeth

420835062

$19.20

3

Water Pump Gear, 18 Teeth

420835070

$19.20

4

Location Pin 10 M6x50

420229302

$3.11

5

Needle Pin

420832660

Unavailable

6

Thrust Washer

420827590

$3.86

7

O-Ring

293300117

$4.28

8

Torx Flange Screw M6 X 25

420440234

Unavailable

9

Step Collar

420910230

$66.89

10

Oil Seal

420650315

$9.62

11

Spacer Ring

420947430

$2.06

12

Water Pump Shaft

420837921

$53.99

13

Water Impeller

420922805

$36.89

14

Water Pump Housing Ass'y | Includes 14 to 16 This part replaces 420822462.

420822463

Unavailable

15

Gasket

420430780

$13.58

16

Gasket

420431290

$13.58

17

Torx Flange Screw M6 X 25

420440234

Unavailable

18

Seal Washer

420230415

$1.77

19

Water Manifold

420922141

$38.43

20

MOLDED HOSE - Call your local BRP dealership

420922091

$16.12

21

Gear Clamp

420851673

$4.71

22

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

23

Molded Hose

420460461

$19.20

24

Gear Clamp

420951293

$8.34

25

Molded Hose

420922132

$29.97

26

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

27

Thermostat Housing Ass'y | Includes 30 to 31

420822541

$69.20

28

O-Ring

420631876

$10.52

29

Torx Flange Screw M6 X 16

420440162

$3.11

30

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Not Available As Spare Part - Friction Washer

Unavailable
