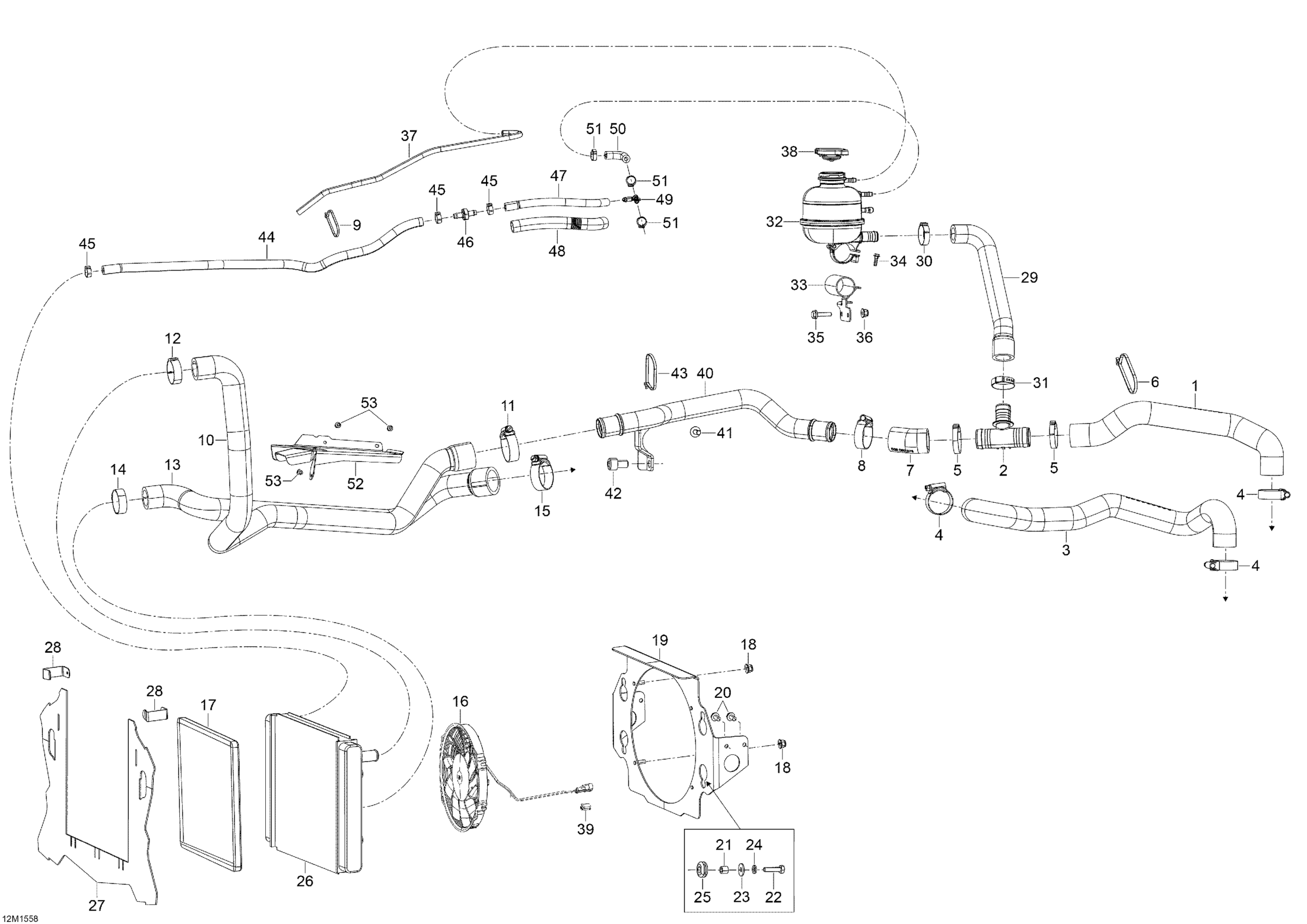

Ski-Doo Expedition SE 1200, 2015 Cooling System _12M1558 Diagram

#

Description
Price

1

Formed Hose

509000894

$13.18

2

T-Fitting

509000372

$9.03

3

Formed Hose

509000895

$38.78

4

Aba Gear Clamp, 26-38 MM

509000443

$5.64

5

Oetiker Gear Clamp

509000181

$4.15

6

Tie Wrap 368 mm

293750008

$0.97

7

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

8

Aba Gear Clamp, 26-38 MM

509000443

$5.64

9

Tie-Rap 180 mm

414115200

$0.10

10

Hose, Front Radiator ( Air Engine)

509000780

$35.79

11

Aba Gear Clamp, 26-38 MM

509000443

$5.64

12

Oetiker Gear Clamp

293650165

$4.96

13

Hose, Front Radiator (Engine)

509000781

$24.60

14

Oetiker Gear Clamp

293650165

$4.96

15

Aba Gear Clamp, 26-38 MM

509000443

$5.64

16

Cooling Fan

509000838

$206.69

17

Insulation

509000718

$57.43

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

19

Radiator support | Includes 3340 to 3340a

509000791

$88.78

20

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

21

Bushing

605453745

$11.18

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

23

Flat Washer 6 mm

234062410

$0.73

24

Lock Waasher

234161431

Unavailable

25

Grommet

709000582

$4.25

26

Radiator

509000787

$208.18

27

Air Deflector

509000700

$44.00

28

Deflector Clip

509000703

$38.78

29

Filling Hose

509000663

$58.18

30

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

31

Crimp Clamp

293650099

$4.07

32

Coolant Tank

509000421

$84.30

33

Reservoir support

509000856

$17.88

34

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

35

Hex. Flange Screw M6 X 25

207662544

$0.61

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

Hose 6 Mm 15000Mm Long

219704360

$120.12

38

Radiator Pressure Cap

509000180

$13.42

39

Clip

710000992

$3.88

40

Water Pipe Aluminum

509000724

$147.73

41

Torx Screw M6 X 16

250000223

$2.00

42

Socket Screw M10 X 16

205501644

$3.88

43

Tie-Rap 180 mm

414115200

$0.10

44

Was 509000407 Hose 8 mm

219704420

$46.24

45

Oetiker Clamp

293650140

$2.46

46

Check Valve

509000153

$16.39

47

Hose-formed

509001069

$13.18

48

Tubing 16 Mm 1000Mm Long

219704408

$7.15

49

Y-Fitting

293710140

$7.09

50

HOSE - Call your local BRP dealership

509000799

Unavailable

51

Oetiker Clamp

293650046

$2.67

52

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

53

Avex Rivet

390909200

$0.28
