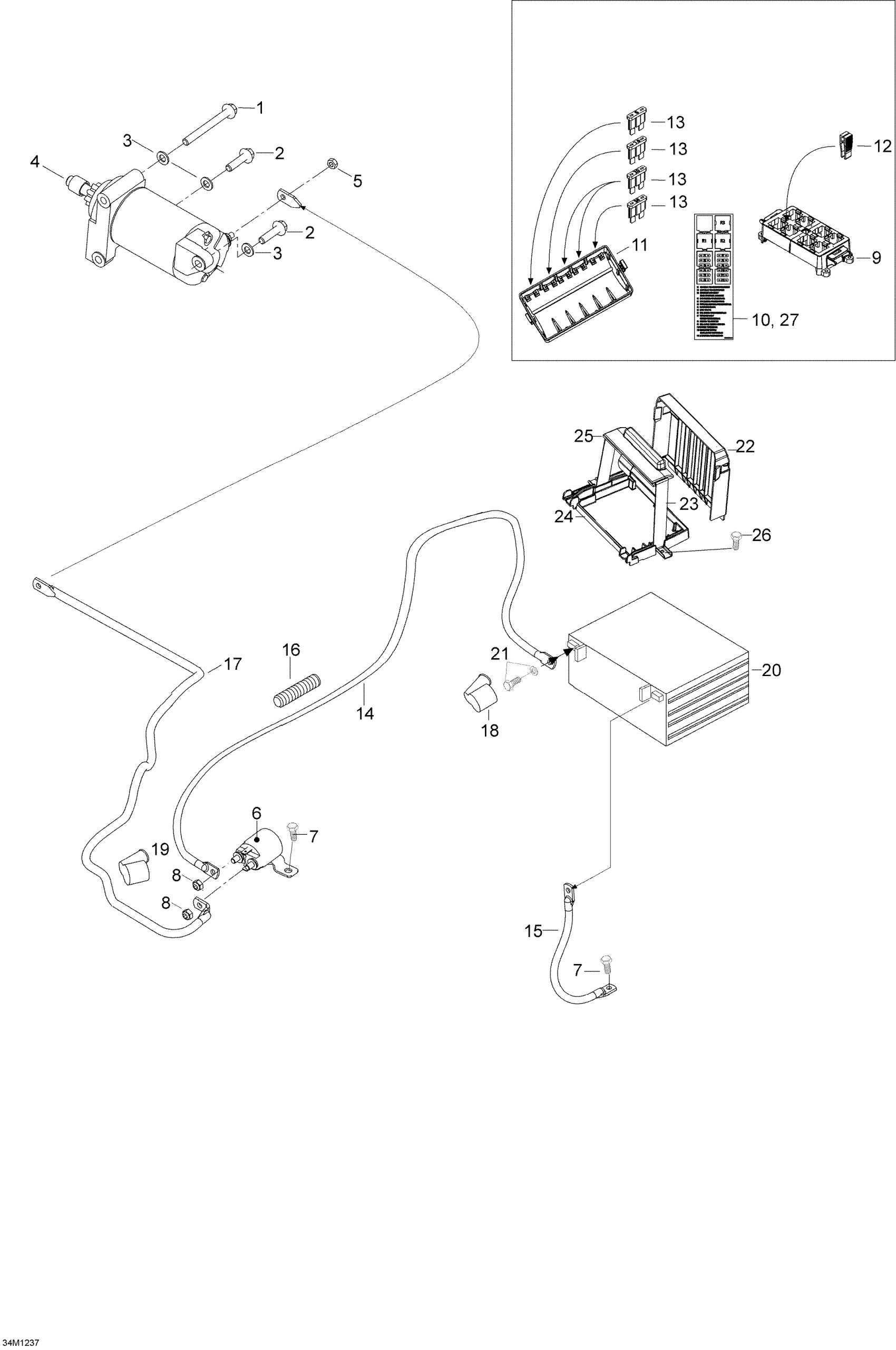

Ski-Doo Expedition LE 600HOETEC XU, 2012 Battery And Starter Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

2

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

3

Flat Washer With Teflon 8 mm

250200008

$3.58

4

Starter

515178473

$319.49

5

Elastic Stop Nut M6

232561414

$1.78

6

Starter Relay

515176011

$59.67

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Relay, 30 AMP

515176774

$18.63

11

Fuse Cover

710001026

$20.12

12

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

13

Fuse, 5 Amperes | CE

278000344

$3.12

13

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

13

Fuse, 20 Amperes

409003900

$3.12

13

Fuse, 30 Amperes

410917200

$3.12

13

Fuse 1 A

M42044

Unavailable

14

Battery Cable

515176805

Unavailable

15

Ground Wire

515176780

Unavailable

16

HOUSING - Call your local BRP dealership

M28015

Unavailable

17

Start Cable

515176806

$34.30

18

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

19

Protection Cap

570151000

$17.88

20

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

21

Battery Bolt Kit

250000282

$3.39

22

Battery Cover

510005079

$17.13

23

Battery Strap

510005143

$72.36

24

Battery Support

515176804

$72.36

25

Strap Cover

510005146

$26.09

26

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

27

Relay, 50 AMP

515176775

$13.45
