Description

Price

1

Black, Hood

517304812

Unavailable

2

Hood Grille

517304843

$82.28

3

Edge Clip

517302785

Unavailable

4

Insulator

517304330

$34.58

5

Insulator

517304214

$29.97

6

Latch Pannel

517304289

$9.91

7

Air Filter

508000609

$46.12

8

Scoop Grille

517306980

$34.58

9

Black, Console

517304820

$170.74

10

Insulator

517304318

$49.20

11

INSULATOR - Call your local BRP dealership

517304317

Unavailable

12

Black, RH Side Access Panel | Includes 13 to 15

517304829

$249.20

13

RH Access Panel Grille

517304015

$33.82

14

RH Lower Acces Grille

517304016

$29.20

15

Black, LH Side Access Panel | Includes 18 to 19

517304839

$276.89

16

LH Access Panel Grille

517303893

$33.82

17

Insulator

517304311

$63.05

18

Insulator

517304312

$29.97

19

Insulator

517304313

$63.05

20

Black, RH Side Panel

517306970

$235.35

21

Aluminium Foil

517304215

$18.43

22

Aluminium Foil

517304216

$20.74

23

RH Foam

517303890

$54.58

24

RH Rear Foam

517304310

$62.28

25

Black, LH Side Panel

517306973

$207.66

26

LH Foam

517303891

$53.05

27

LH Rear Foam

517304309

$62.28

28

Latch-Panel

517304572

$9.48

29

Pop Rivet 3/16”

293150108

$1.23

30

Handle Fastener Quarter-Turn

517304297

$14.62

31

Quarter-Turn Handle

517304296

Unavailable

32

Locking Plate

517304538

$4.29

33

Side Panel Support | Except Package SWT

517304497

$18.43

34

Rivet

36005

Unavailable

35

Black Latch Kit | Includes 390 to 400

860200239

$16.12

36

Latch-Panel

517306057

$19.47

37

Indicator Support

517304272

$169.20

38

Insulator

517304314

$63.82

39

Insulator

517304315

$29.97

40

Insulator

517304316

$29.97

41

Insulator

517304319

$29.97

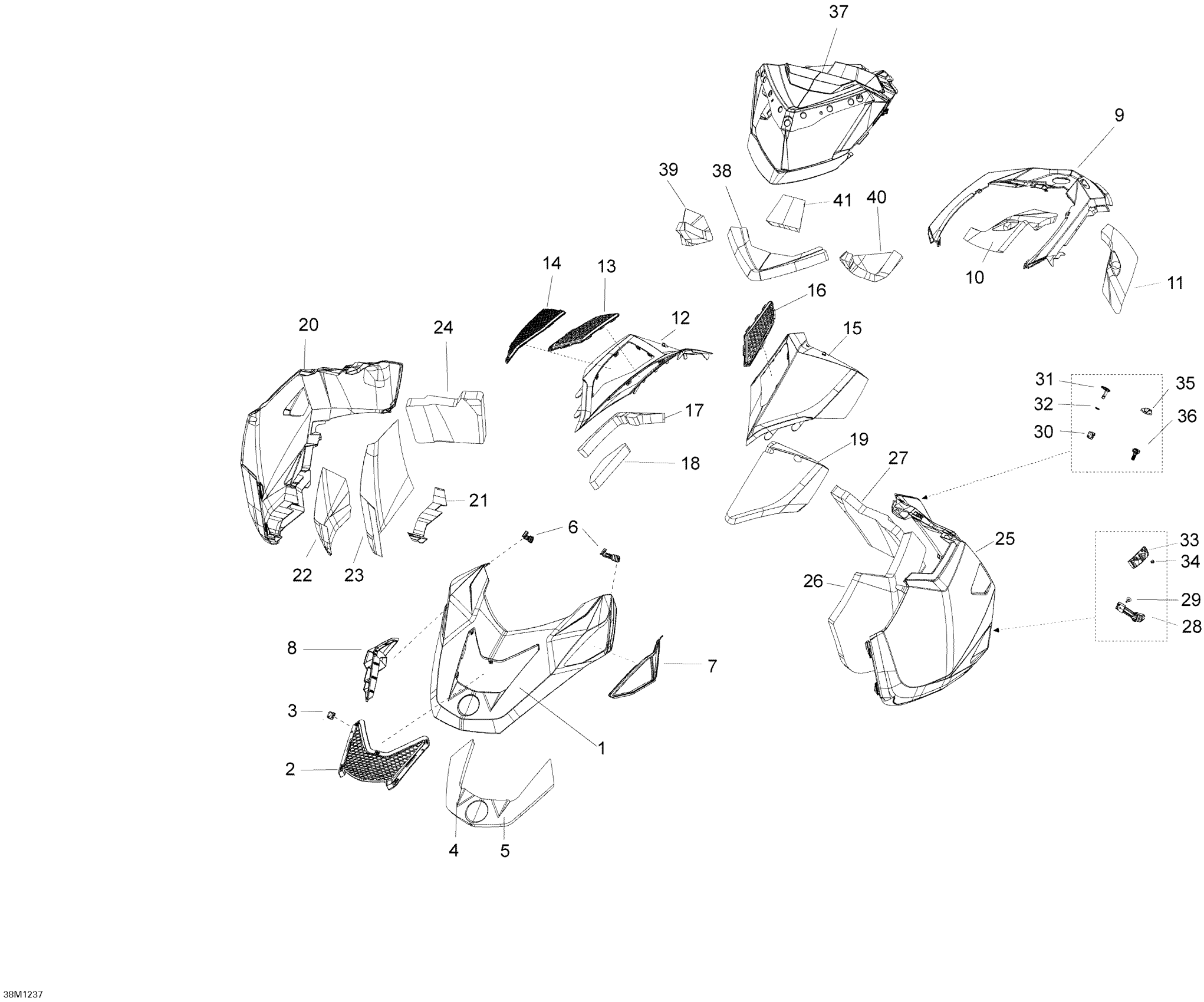

Ski-Doo Expedition LE 600HOETEC XU, 2012 Hood Diagram
