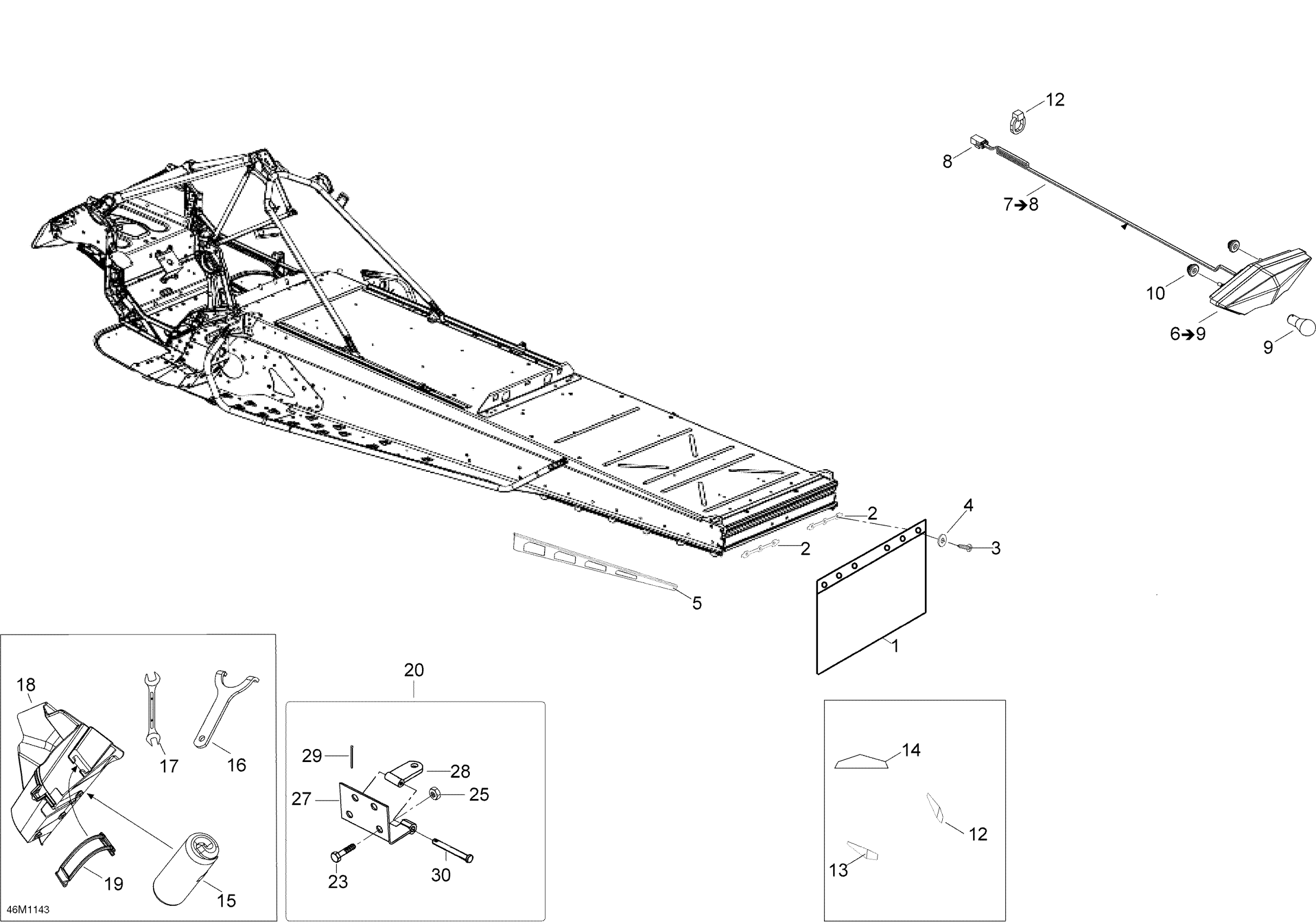

Ski-Doo Expedition LE 600HOETEC XU,2011 Utilities Diagram

#

Description
Price

1

Snow guard This part replaces M538629.

538629

$98.99

2

THREADED PLATE - Call your local BRP dealership

520000847

Unavailable

3

Torx Screw M5 X 14

250000742

$1.49

4

Washer M5

250200025

$1.49

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rear Light Ass'y

520000587

$109.99

7

Bulb

520000758

$9.29

8

Wiring Harness Ass'y | Not Shown

520000677

$39.99

9

Male Housing, 3 Circuits

515175494

$16.49

10

Stopper Rubber

705014429

$6.09

12

Yellow, RH Reflector

520001600

$34.99

13

Yellow, LH Reflector

520001601

$34.99

14

Red, Lateral Reflector

705003412

$15.99

15

Tool Kit | Includes 20 To 28

529000065

$57.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$7.89

20

Not Available As Spare Part - Friction Washer

Unavailable

23

Carriage Bolt, M8 X 25 | XXC

207782544

$1.59

25

Hex. Flange Elastic Nut M8

233281414

$1.49

27

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$84.99

28

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

29

Cotter Pin

41031

$7.79

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable
