Description

Price

1

Front Seat Foam | Model-550F

510005807

$424.58

2

Cover, front

510005722

Unavailable

3

Rear Seat Cover XU

510005320

Unavailable

4

Rear Seat Foam | Model-550F

510005811

$379.97

5

Seat Base

510004816

$90.74

6

Backrest Plate

510005330

$66.12

7

Black, Dart

414644300

$0.78

9

Latch, Black

708000144

$11.09

10

Spring

708000369

$8.60

11

Hex. Screw M6 X 80

207068044

$3.39

12

Push Nut

732610072

Unavailable

13

Flat Washer 6 mm

234061410

Unavailable

14

Cover

510004999

$16.12

15

Pop Rivet 1/8”

293150015

$0.34

16

FOAM BACKREST - Call your local BRP dealership

510005833

$109.99

17

Backrest Cover

510005259

$221.51

18

BACKREST AXLE - Call your local BRP dealership

605355357

Unavailable

19

LIMITER PLATE - Call your local BRP dealership

510005312

Unavailable

20

Rubber Shim

510004378

Unavailable

21

RH ARM - Call your local BRP dealership

510004988

Unavailable

22

LH ARM - Call your local BRP dealership

510004989

Unavailable

23

Socket Screw BN.HD.ISO.7380

205402546

Unavailable

24

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

25

Torx Truss Screw M6 X 16

250000721

Unavailable

26

Nut Welded, M6

293100003

Unavailable

27

Handle Grip

510004449

Unavailable

28

RH Deflector

510004415

$26.12

29

Screw 25MM

250000961

$2.38

30

Heater

515176393

$59.20

31

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

32

Adapter

510004939

$14.09

33

LH Handle

510005862

Unavailable

34

LH Deflector

510004416

$26.12

35

Switch Housing

510004566

$11.94

36

Torx Screw K50 X 16

250000720

$1.39

37

Rocker Switch

510004413

Unavailable

38

Switch Protector

510004414

$7.37

39

LH Handle Harness

515176241

Unavailable

40

Tie-Rap 180 mm

414115200

$0.09

41

Handle Heater Decal

516002835

$10.35

42

Passenger Handle Trim

510006602

$11.71

43

Counter Plate

510004990

$29.97

44

Lock Ass'y | Includes 54 to 57

510004992

$34.58

48

ADAPTER - Call your local BRP dealership

510005151

Unavailable

49

SLEEVE - Call your local BRP dealership

510005042

Unavailable

50

Security Lock

510005139

$55.35

51

Socket Screw HD.DIN.912

205064044

$2.06

52

Elastic Stop Nut M6

232561414

Unavailable

53

COVER PLATE - Call your local BRP dealership

510004995

Unavailable

54

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

55

Flat Washer 8 mm

234081410

Unavailable

56

Hex. Flange Elastic Nut M8

233281414

Unavailable

57

Cover | Model-T3

28056

$5.52

58

SEAT HARNESS - Call your local BRP dealership

515176747

Unavailable

58a

SEAT PLUG HARNESS - Call your local BRP dealership

515176748

Unavailable

59

Male Housing, 3 Circuits

515175494

$15.35

60

Male Terminal Housing, 8 Circuits

515175817

Unavailable

61

Tie-Rap 180 mm

414115200

$0.09

62

Storage Box

510006243

$218.43

63

Storage Box Cover

510006244

$39.99

64

Bushing

510005147

$9.91

65

Torx Screw M6 X 12

250000454

Unavailable

66

Lock tube

510005714

$402.28

68

Cable Support Plate

510005156

$17.66

69

Seat Retainer Cable

293750070

$10.23

70

Pop Rivet 3/16"

390402200

$0.26

71

Plug

605452114

$8.60

72

Latch Spring

269700017

$7.27

73

Puller

510005072

$18.43

74

Lock Pin Cover

510005698

$19.20

75

Forming Screw M5 x 16

250000676

$0.83

76

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

77

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

78

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

79

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

80

Lock Pin Guide

510005044

$14.02

81

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

82

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

83

Hex. Nut M6

250000135

$0.51

84

Washer

20117

$5.22

85

Elastic Stop Nut M6

232561414

Unavailable

86

Foam

510005043

Unavailable

87

Battery Cover

510005079

$17.66

88

Battery Support

515176804

$74.58

89

Battery Strap

510005143

$74.58

90

Strap Cover

510005146

$26.89

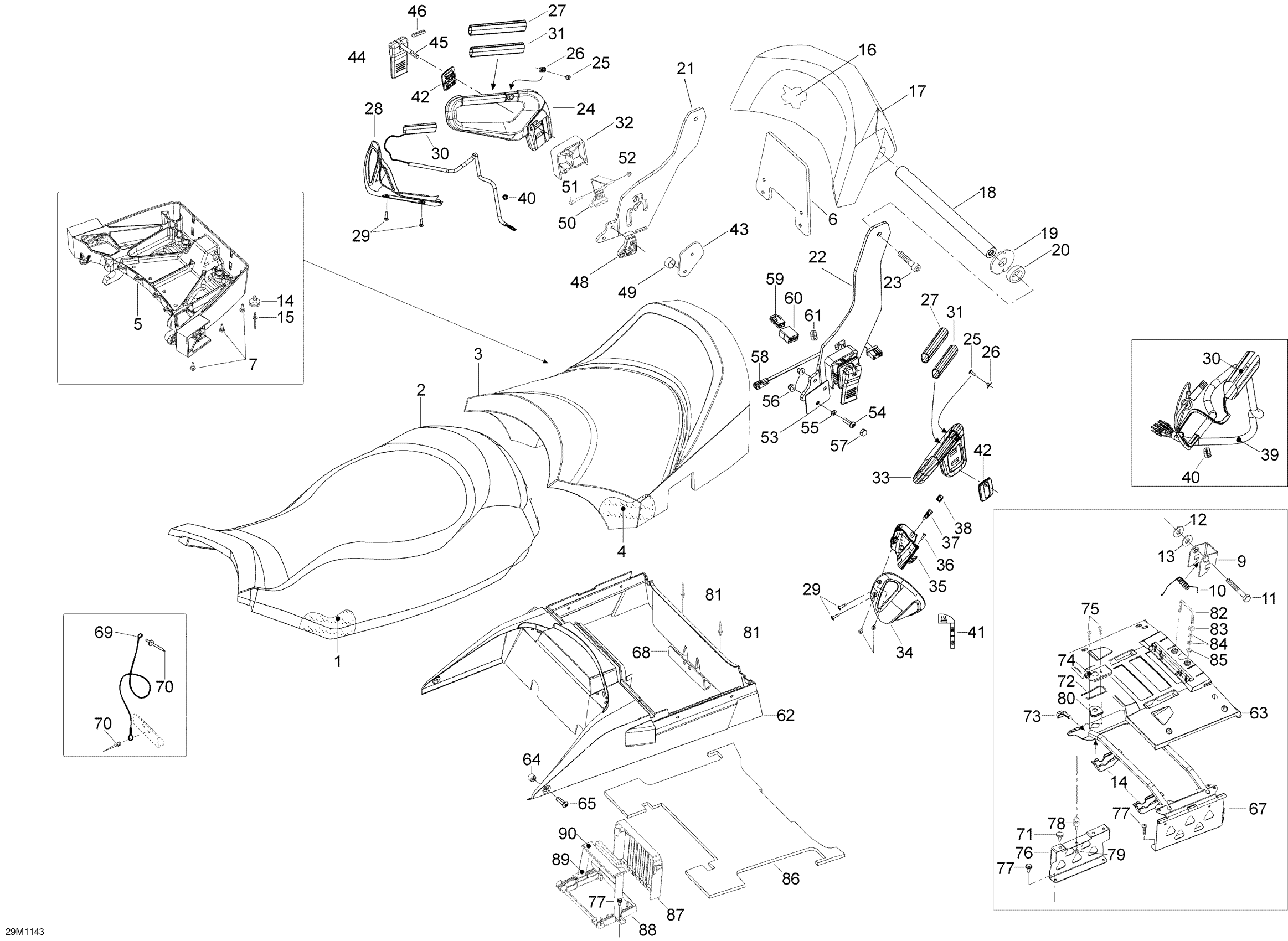

Ski-Doo Expedition LE 600HOETEC XU,2011 Seat Diagram
