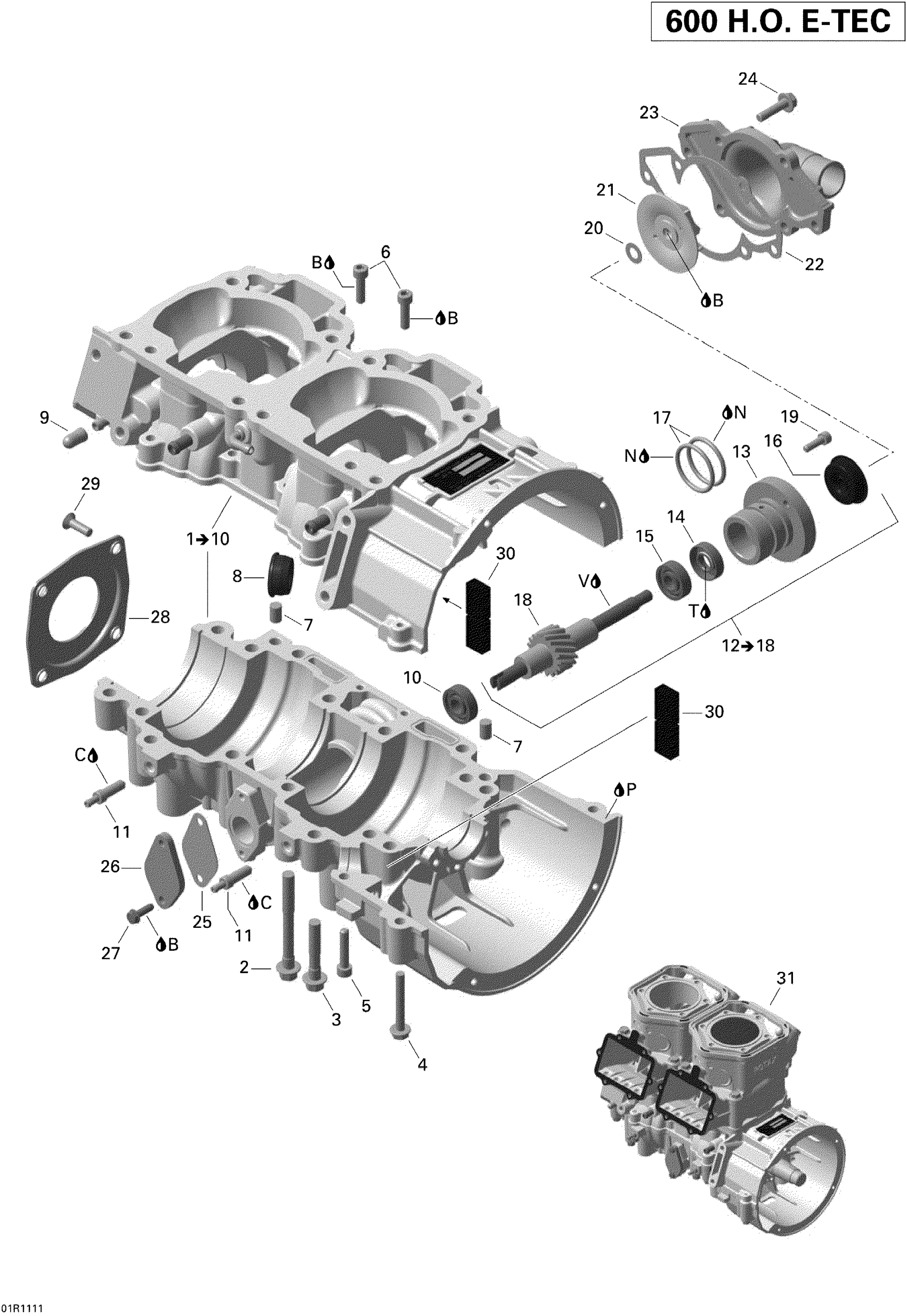

Ski-Doo Expedition LE 600HOETEC XU,2011 Crankcase And Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 10

420890229

$1,099.99

2

Hex. Collar Screw M8 X 75

420640836

$1.94

3

Hex. Collar Screw M8 x 45

420640432

Unavailable

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

Unavailable

5

Socket Head Screw M6 X 30

205063044

Unavailable

6

Allen Screw M6 x 22 This part replaces 420840401.

420840403

Unavailable

7

Center Pin 8 X 12

420632010

Unavailable

8

Cable Grommet

420860965

$13.58

9

Cap

420960770

$4.00

10

Ball Bearing

420232100

Unavailable

11

Check Valve

420956071

Unavailable

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$12.65

15

Ball Bearing

420232100

Unavailable

16

Rotary Seal

420650371

Unavailable

17

O-Ring

420950890

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

Unavailable

20

Thrust Washer

420227945

$3.86

21

Water Impeller

420222505

$14.92

22

Gasket This part replaces 420931810.

420931811

Unavailable

23

Water Pump Housing

420922630

$59.20

24

Hex. Screw M6 X 25

420240034

$1.56

25

Gasket This part replaces 420931566.

420931568

Unavailable

26

Cover Plate

420810827

Unavailable

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Seal Cover

420812422

Unavailable

29

Screw M6 X 20

420941436

Unavailable

30

Rubber Stopper

420960925

$5.22

31

Short Block 593 Ho E-Tec

420059354

$2,229.99

31

Short Block 593 Ho E-Tec

420059354

$2,229.99

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

Unavailable

N

Dow Corning 111, 150 g

413707000

$57.82

P

Loctite 5910, 300 ml

293800081

$57.99

T

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

V

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable
