Description

Price

1

Torx Flange Screw M6 X 30

420440647

$1.97

2

Starter Ass'y | Includes 25 to 26

420893531

$297.99

3

Starter Relay

515176011

$51.97

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Battery Wire

515176778

Unavailable

7

Ground Wire

515176777

Unavailable

8

HOUSING - Call your local BRP dealership

M28015

Unavailable

9

Start Cable

515176806

$35.35

10

Protector Cap

710000495

$10.14

11

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

12

Battery Bolt Kit

250000282

$2.95

13

Battery Cover

510005079

$17.66

14

Battery Strap

510005143

$74.58

15

Battery Support

515176804

$74.58

16

Strap Cover

510005146

$26.89

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Flat Washer 6 mm

234061410

$1.04

19

Elastic Stop Nut M6

232561434

$1.55

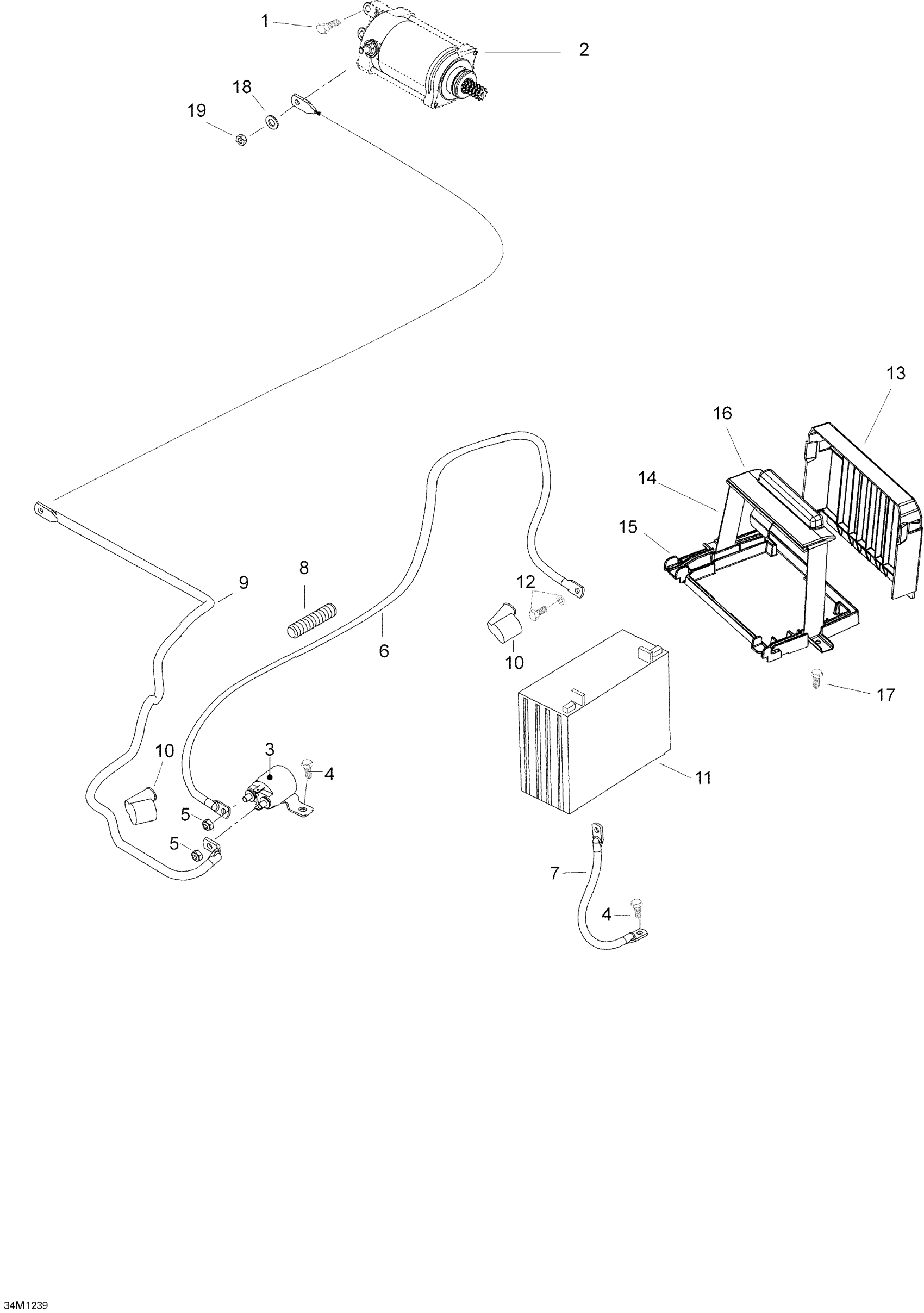

Ski-Doo Expedition LE 1200 XU, 2012 Battery And Starter Diagram

Torx Flange Screw M6 X 30

Starter Ass'y | Includes 25 to 26

Starter Relay

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0

Battery Wire

Ground Wire

HOUSING - Call your local BRP dealership

Start Cable

Protector Cap

Lead Battery 18 Amperes | Includes 4327 to 4327a

Battery Bolt Kit

Battery Cover

Battery Strap

Battery Support

Strap Cover

Hex. Flange Screw M6 X 16, Scotch Grip

Flat Washer 6 mm

Elastic Stop Nut M6
