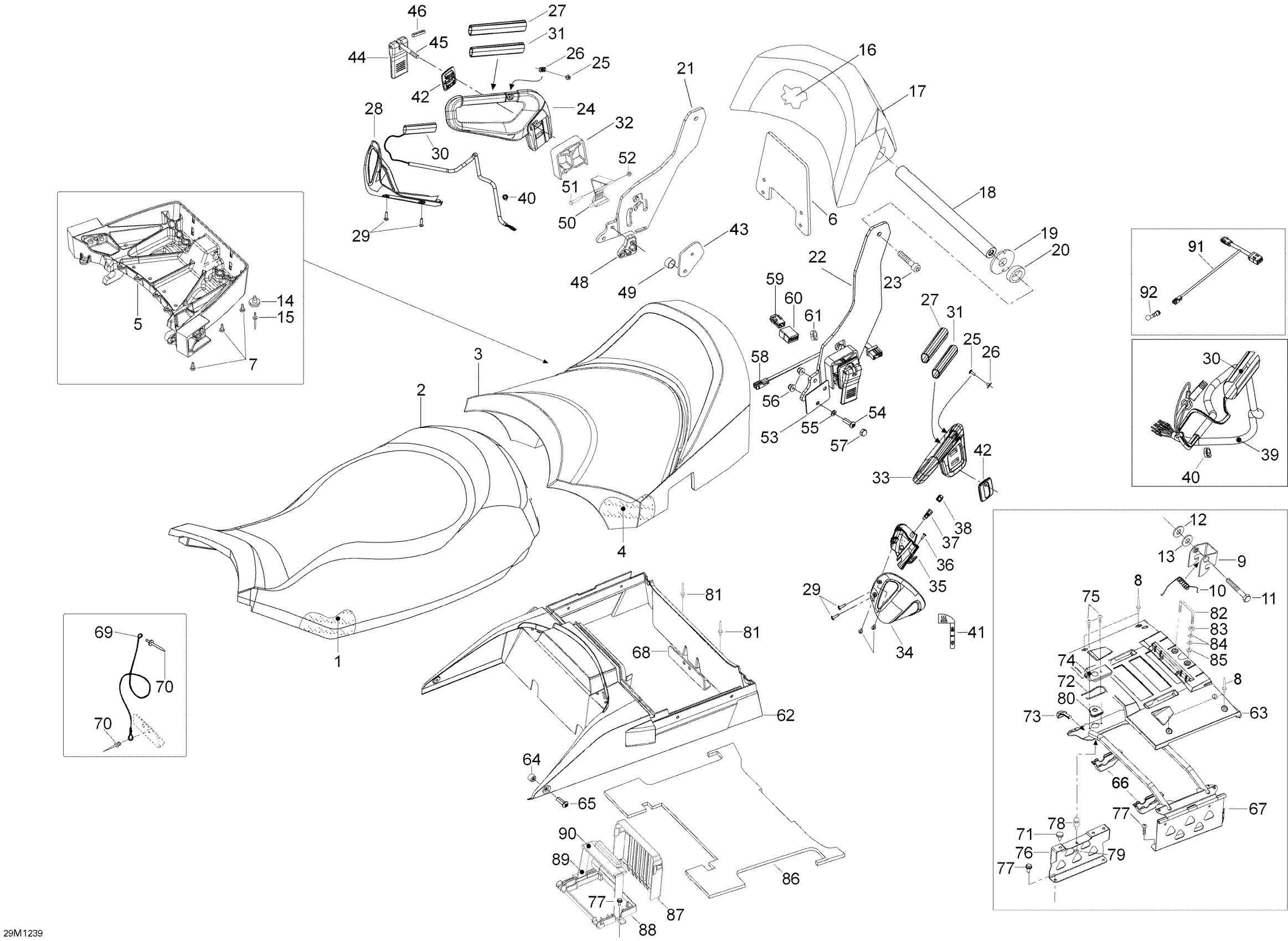

Ski-Doo Expedition LE 1200 XU, 2012 Seat Diagram

Front Seat Foam | Model-550F

510005807

$459.99

Cover, front

510005722

$214.99

Rear Seat Cover XU

510005320

Unavailable

Rear Seat Foam | Model-550F

510005811

$368.63

Seat Base

510004816

$97.99

Backrest Plate

510005330

$64.15

Black, Dart

414644300

$0.90

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Latch, Black

708000144

$10.76

Spring

708000369

$8.34

Hex. Screw M6 X 80

207068044

$3.90

Push Nut

732610072

$1.97

Flat Washer 6 mm

234061410

$1.19

Cover

510004999

$15.64

Pop Rivet 1/8”

293150015

$0.33

FOAM BACKREST - Call your local BRP dealership

510005833

Unavailable

Backrest Cover

510005259

$239.99

Not Available As Spare Part - Friction Washer

Unavailable

LIMITER PLATE - Call your local BRP dealership

510005312

Unavailable

Rubber Shim

510004378

$8.36

RH ARM - Call your local BRP dealership

510004988

Unavailable

LH ARM - Call your local BRP dealership

510004989

Unavailable

Socket Screw BN.HD.ISO.7380

205402546

$4.15

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

Torx Truss Screw M6 X 16

250000721

$1.60

Nut Welded, M6

293100003

$7.25

Handle Grip

510004449

$10.33

RH Deflector

510004415

$25.34

Screw 25MM

250000961

$2.31

Heater

515176393

$57.43

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

Unavailable

Adapter

510004939

$13.67

LH Handle

510005862

$117.13

LH Deflector

510004416

$25.34

Switch Housing

510004566

$11.58

Torx Screw K50 X 16

250000720

$1.60

Rocker Switch

510004413

$8.31

Switch Protector

510004414

$7.15

LH Handle Harness

515176241

Unavailable

Tie-Rap 180 mm

414115200

$0.10

Handle Heater Decal

516002835

$10.04

Passenger Handle Trim

510006602

$11.36

Counter Plate

510004990

$29.07

Lock Ass'y | Includes 54 to 57

510004992

$33.55

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

ADAPTER - Call your local BRP dealership

510005151

Unavailable

SLEEVE - Call your local BRP dealership

510005042

Unavailable

Security Lock

510005139

$53.70

Socket Screw HD.DIN.912

205064044

$2.00

Elastic Stop Nut M6

232561434

$1.78

COVER PLATE - Call your local BRP dealership

510004995

$10.33

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Flat Washer 8 mm

234081410

$0.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Cover | Model-T3

28056

$5.36

Seat Wiring Harness This part replaces 515177209.

515179606

Unavailable

Male Housing, 3 Circuits

515175494

$14.90

Male Terminal Housing, 8 Circuits

515175817

$8.31

Tie-Rap 180 mm

414115200

$0.10

Storage Box

510006243

$211.91

Storage Box Cover

510006244

$39.99

Bushing

510005147

$9.61

Torx Screw M6 X 12

250000454

$4.15

Cover

510004999

$15.64

Lock tube

510005714

$390.27

Cable Support Plate

510005156

$17.13

Seat Retainer Cable

293750070

$9.93

Pop Rivet 3/16"

390402200

$0.30

Plug

605452114

$8.34

Latch Spring

269700017

$8.34

Puller

510005072

$17.88

Lock Pin Cover

510005698

$18.63

Forming Screw M5 x 16

250000676

$0.96

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Lock Pin Guide

510005044

$13.60

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

Hex. Nut M6

250000135

$0.49

Washer

20117

$5.06

Elastic Stop Nut M6

232561434

$1.78

Foam

510005043

$64.15

Battery Cover

510005079

$17.13

Battery Support

515176804

$72.36

Battery Strap

510005143

$72.36

Strap Cover

510005146

$26.09

Seat Wiring Harness This part replaces 515177210.

515179607

$98.48

Cap

572103300

$9.36
