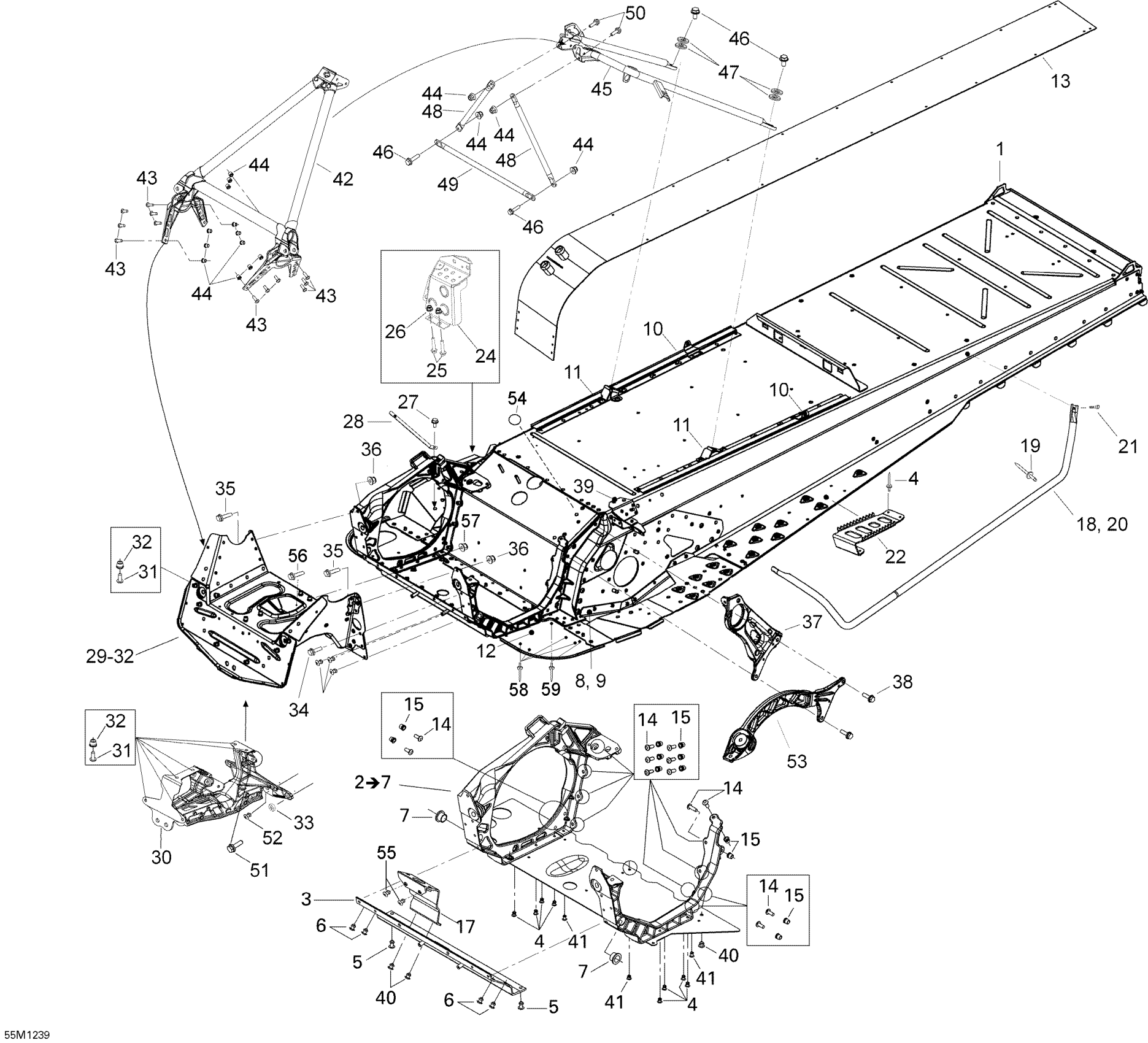

Ski-Doo Expedition LE 1200 XU, 2012 Frame and Components Diagram

#

Description
Price

1

Frame XU 4TEC SC-5

518326985

Unavailable

2

Module E | Engine 1200 4-TEC

518328187

$907.66

3

Front Member

518326198

$59.97

4

Stavex Rivet

293150144

Unavailable

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Hemlock Rivet, 6.5 mm

293150119

$4.00

7

Leg Bushing

505072690

Unavailable

8

Drive Axle Cover LH

518326439

Unavailable

9

Drive Axle Cover RH

518326440

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

11

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

12

LH Frame Corner

518325524

$52.28

12

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

13

Radiator Tunnel

509000645

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

MAG Engine Support

518325371

$75.35

18

LH Footboard Support Tube

518326963

$126.89

19

Rivet Hucklok

293150163

$2.82

20

RH Footboard Support Tube

518326964

$126.89

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$18.43

24

LH Toe Hook

518326464

Unavailable

24

TOE HOOK RH - Call your local BRP dealership

518326465

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

Torx Screw M6 X 20

250000722

Unavailable

28

SPRING BRACKET - Call your local BRP dealership

514054616

$8.78

29

Cross Member | Package LE

518328392

$604.58

30

Front Suspension Support

518327487

Unavailable

31

Hex. Flange Screw M6 X 20

207662044

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Hex. Flange Elastic Nut M8

233281414

Unavailable

34

Hexagonal Head Screw

210262050

$1.74

35

Hex Flange Screw M6 x 25

250000522

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

39

Fastening Bracket

605355235

Unavailable

40

Hemlock Rivet, 6.4 mm

293150174

$6.43

41

Stavex Rivet

293150144

Unavailable

42

Front Member

518326970

$276.12

43

Hex. Flange Screw M6 X 20

207662044

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

Unavailable

49

Center Column Support

518325115

Unavailable

50

Hex Flange Screw M6 x 25

250000522

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

52

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

53

Brace Ass'y | Includes 200 to 200a

518327392

$185.35

54

Adhesive Patch

518325560

Unavailable

55

Hex. Flange Screw M6 X 16

207661644

Unavailable

56

Hex Flange Screw M6 x 25

250000522

Unavailable

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

59

Avex Rivet

390909200

Unavailable
