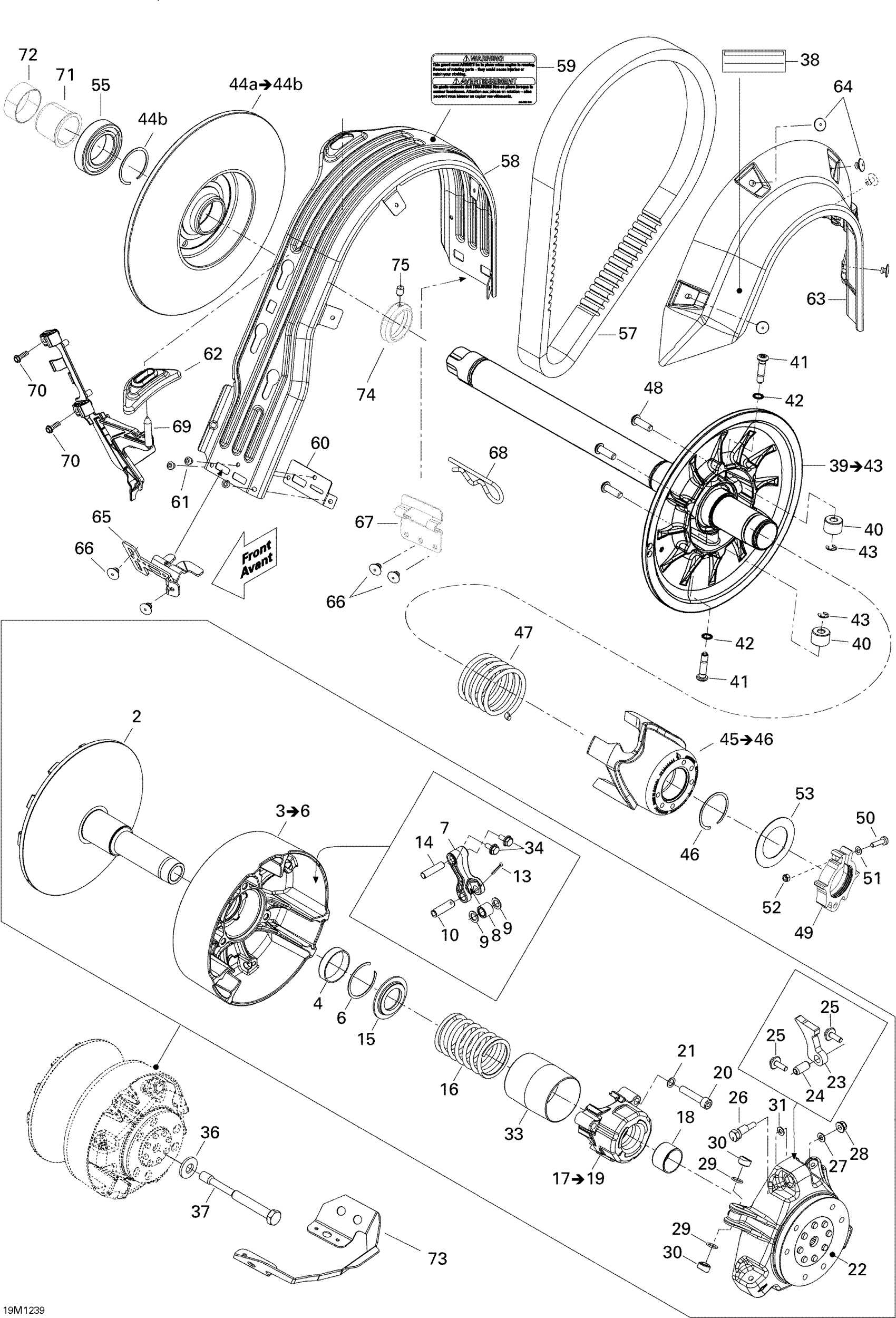

Ski-Doo Expedition LE 1200 XU, 2012 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE - Call your local BRP dealership

417222980

Unavailable

3

Sliding Flange Ass'y

417223093

Unavailable

4

Bushing

417223086

$33.82

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring (Red/Orange)

415015200

Unavailable

17

Spring Cover Ass'y | Includes 14 to 15

417222759

$50.74

18

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

Unavailable

22

Governor Cup Ass'y This part replaces 417222923.

417223473

Unavailable

23

Ramp 617

417223088

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417223197

Unavailable

27

Flat Washer 6 mm

234061410

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Washer

417005600

$3.86

33

Guard

417009205

$16.89

34

Serrated Hex. Flange Bolt M6

250000416

$4.12

36

Spring Washer 14 mm

250200006

Unavailable

37

Drive Pulley Bolt

417300285

Unavailable

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Flasque Fixe As*Flange-Fix.Ass This part replaces 417127330.

417127408

Unavailable

40

Roller

417127189

$44.58

41

Pivot Stud

417127259

Unavailable

42

Lock Washer 8 mm

250200009

Unavailable

43

Circlip

414753500

$0.59

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

Unavailable

44b

Circlip

293370049

Unavailable

45

Cam Ass'y

417127412

$164.99

46

Circlip

293370049

Unavailable

47

Beige, Spring

417127242

$20.74

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

49

Calibration Ass'y

415129604

Unavailable

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

Unavailable

52

Elastic Stop Nut M5

232551414

Unavailable

53

Washer

417127155

Unavailable

55

Ball Bearing

504152574

Unavailable

57

Drive Belt

417300531

$237.59

58

Belt Guard

417300382

$85.35

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

Unavailable

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

Unavailable

65

Belt Guard Bracket

417300373

$33.05

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

67

Belt Guard Bracket | Except Package SWT

417300363

$12.20

68

Hair Pin

114045200

Unavailable

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

71

Protective Rubber

504153054

$16.12

72

PROTECTIVE RING - Call your local BRP dealership

504153034

Unavailable

73

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

74

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

75

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable
