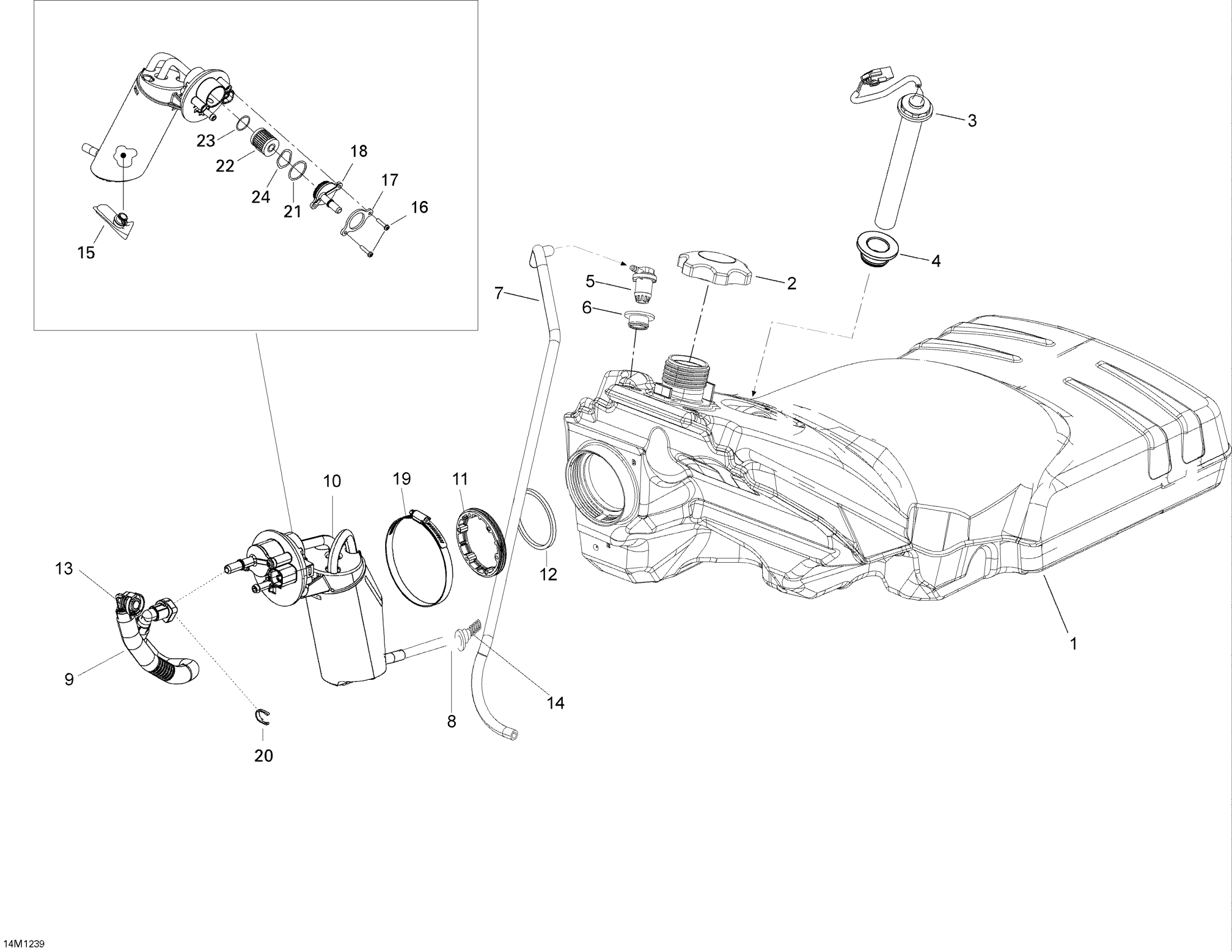

Ski-Doo Expedition LE 1200 XU, 2012 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

Fuel Sensor

513033538

Unavailable

4

Grommet

293720058

$11.00

5

Check Valve

513033842

$33.82

6

Grommet

513033596

$18.43

7

Polyurethane Hose 10000Mm Long

219704410

Unavailable

8

Grommet

280000674

Unavailable

9

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

10

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$257.66

11

Ring

513033180

$17.66

12

Gasket

513033334

$23.05

13

Hose Ass'y | Includes 27 to 28

513033583

$77.66

14

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

15

Fuel Filter

415129451

$23.05

16

Screw

415129513

$9.00

17

Cover

415129685

Unavailable

18

Fuel Pump Ring

415129569

Unavailable

19

Clamp

513033628

$20.74

20

Hose Ass'y | Includes 500 to 500a

513033582

$73.05

21

O-Ring

415129509

$18.43

22

Fuel Filter

415129510

$23.05

23

O-Ring

415129511

$16.89

24

Wave Washer

415129512

$18.43
