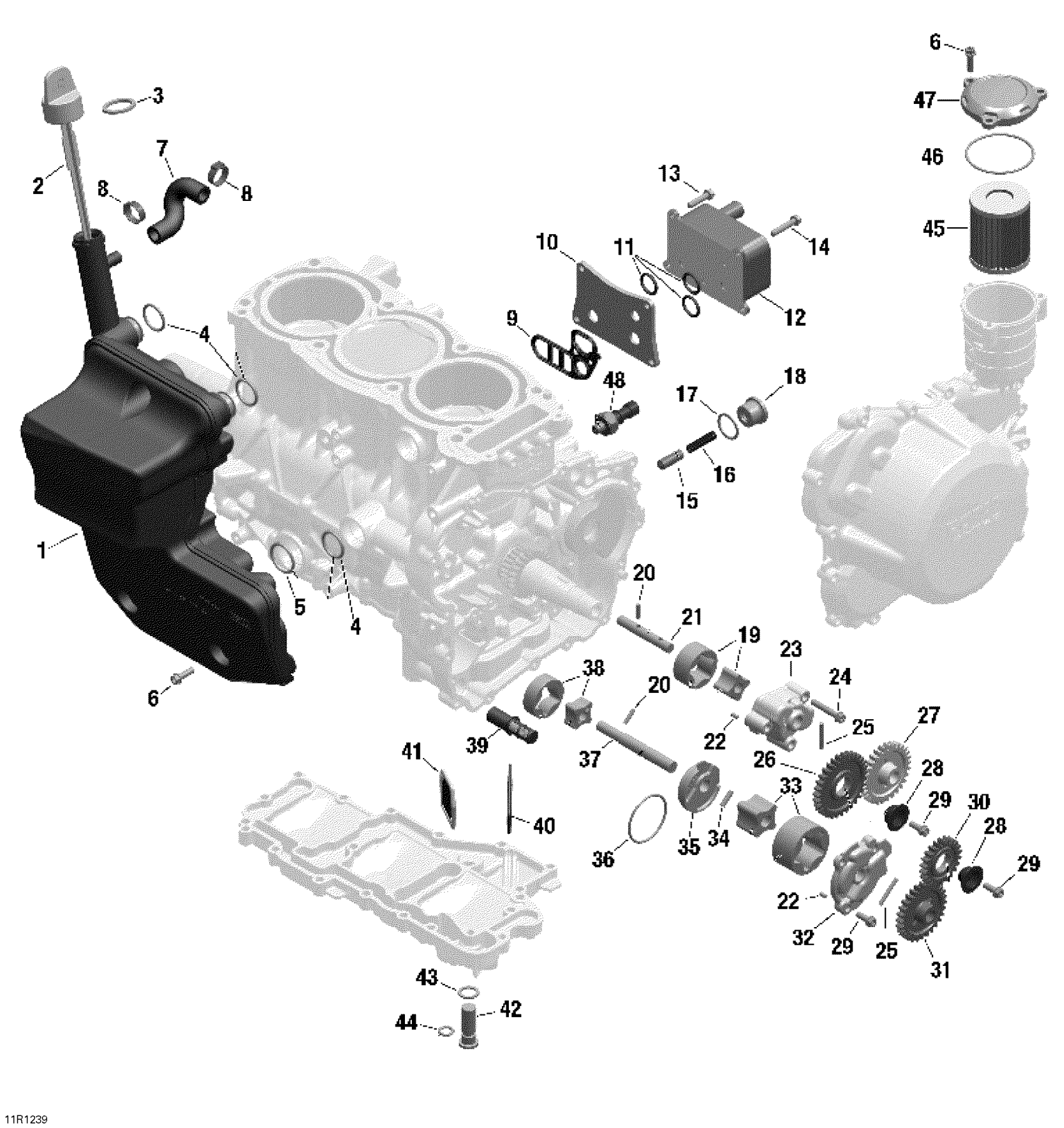

Ski-Doo Expedition LE 1200 XU, 2012 Engine Lubrication Diagram

#

Description
Price

1

Oil Tank Ass'y | Includes 1 to 5

420656386

$128.43

2

Oil Lever Tube Ass'y | Includes 2 to 3

420856661

$23.82

3

Gasket Ring

420431790

$7.05

4

O-Ring

420931634

$16.89

5

O-Ring

420430068

$16.89

6

Torx Flange Screw M6 X 20

420440207

$2.54

7

Air Vent Line

420460021

$16.89

8

Clamp

420951273

$5.22

9

Gasket

420431283

$23.05

10

PLATE - Call your local BRP dealership

420951460

$31.51

11

O-RING - Call your local BRP dealership

420630400

$0.88

12

Oil Radiator

420891914

$119.20

13

Torx Flange Screw M6 X 25

420440234

$3.00

14

Torx Flange Screw M6 X 30

420440647

$1.97

15

Pressure Regulating Piston

420256513

Unavailable

16

Spring

420239445

$10.58

17

Gasket Ring

420650465

$11.52

18

SCREW PLUG M22 X 1.5 - Call your local BRP dealership

420640278

Unavailable

19

Oil Pump Rotor, Suction

420256681

$34.58

20

Needle Pin

420232731

$1.56

21

OIL PUMP SHAFT - Call your local BRP dealership

420837911

$17.66

22

Needle Pin

420929075

$1.74

23

Oil Pump Housing

420611861

$40.74

24

Torx Flange Screw M6 X 35

420641258

$2.78

25

Needle Pin

420232431

$3.67

26

Idle Gear, 31 Teeth

420835055

$23.82

27

Oil Pump Gear, 29 Teeth

420834882

$8.89

28

Graduated Spacer This part replaces 420947390.

420947396

$26.89

29

Torx Flange Screw M6 X 16

420440162

$3.11

30

Idle Gear, 22 Teeth

420835051

$23.05

31

Oil Pump Gear, 28 Teeth

420834887

$8.89

32

Oil Pump Cover

420611980

$27.92

33

Oil Pump Rotor

420256831

$71.51

34

Needle Pin

420632221

$3.61

35

Oil Pump Cover

420611950

$46.12

36

O-Ring

420631830

$1.74

37

OIL PUMP SHAFT - Call your local BRP dealership

420837915

Unavailable

38

Oil Pump Rotor, Pressure

420256671

$32.28

39

OIL SIEVE - Call your local BRP dealership

420856658

Unavailable

40

Oil Sieve

420856650

$13.52

41

Oil Sieve

420856655

$13.52

42

Screw Plug M14 X 1.5

420941841

$23.82

43

Gasket Ring

420230500

$1.85

44

O-Ring

420430115

$1.91

45

Oil Filter

420956124

$16.87

46

O-Ring

420230923

$2.59

47

Oil Filter cover

420612135

$11.11

48

Oil Pressure Switch

420256915

$38.43
