Description

Price

1

Crankcase Ass'y | Includes 1 to 6

420891883

Unavailable

2

Center Pin 8 X 12

420632010

Unavailable

3

Plug Screw M18 X 1.5

420840410

Unavailable

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.23

5

OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774.

420956826

$15.29

6

Plain Bearing

420933852

$18.43

7

Plain Bearing

420933862

$19.20

8

Ring Half

420933140

$8.89

9

SCREW PLUG M16 X 1.5 - Call your local BRP dealership

420240178

$12.11

10

Torx Flange Screw M9 X 113

420940945

$10.41

11

Torx Flange Screw M8 X 70

420840211

$8.34

12

Torx Flange Screw M6 X 35

420641258

$2.78

13

Gasket

420430770

$23.05

14

OIL SUMP COVER - Call your local BRP dealership

420611822

$96.89

15

Torx Flange Screw M6 X 30

420440647

Unavailable

16

Oil Seal

420230150

$2.94

17

Plug Screw M10 X 1

420641733

$10.58

18

Hex Flat Head Screw M6 X 13 T30

420241537

Unavailable

19

Ball Bearing

420432125

$113.05

20

Oil Seal

420431402

Unavailable

21

Gasket

420430760

$17.66

22

PTO Cover

420611845

$193.82

23

Torx Flange Screw M6 X 30

420440647

Unavailable

24

Torx Flange Screw M8 X 55

420641213

$6.11

25

Oil Seal Cover

420910240

$15.35

26

Countersunk Screw M6 X 16

420440906

$3.11

27

Engine Gasket Kit

420893054

$618.43

28

ENGINE 1203 LONG BLOCK - Call your local BRP dealership

300120303

Unavailable

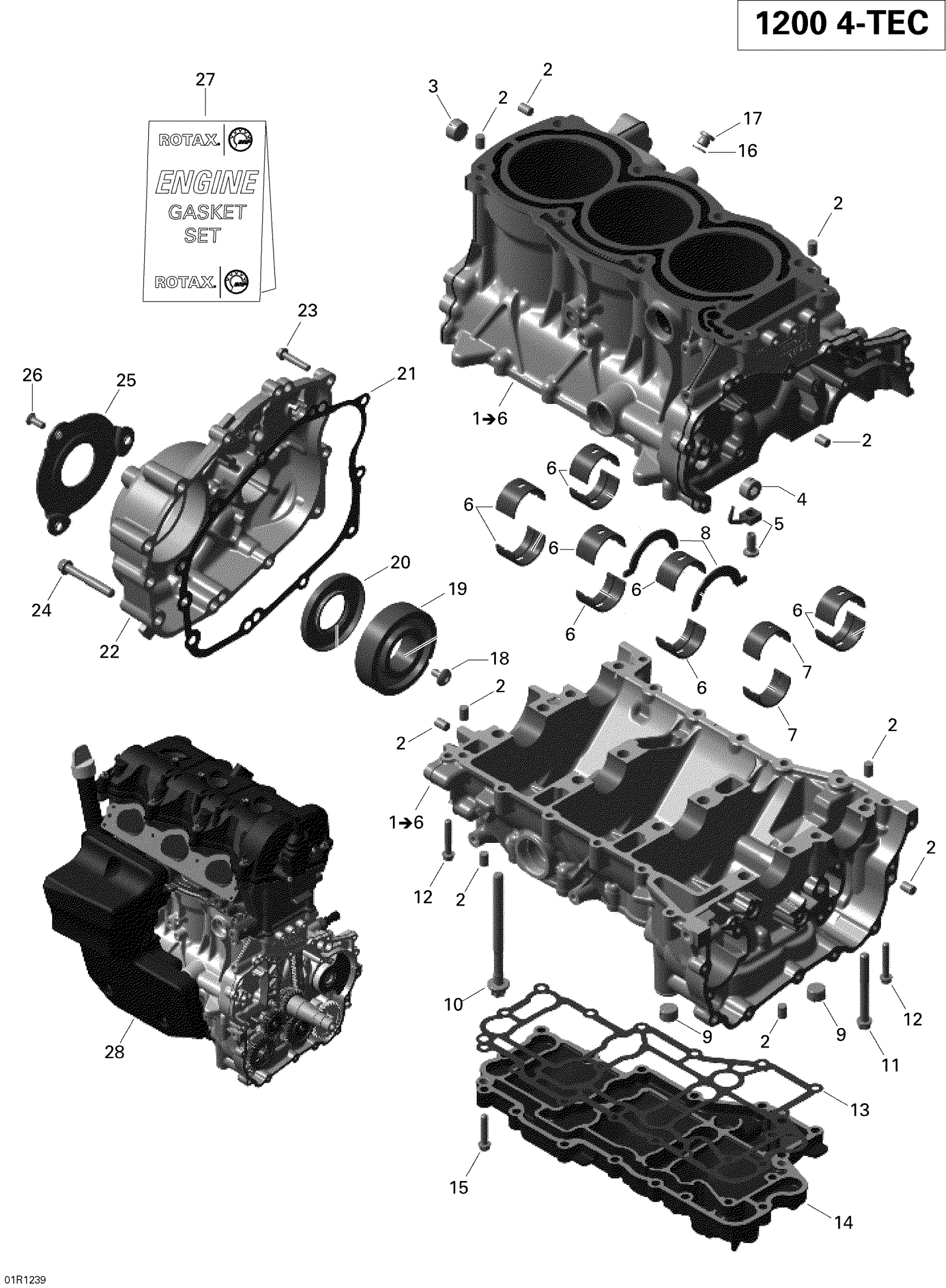

Ski-Doo Expedition LE 1200 XU, 2012 Engine Block Diagram

Crankcase Ass'y | Includes 1 to 6

Center Pin 8 X 12

Plug Screw M18 X 1.5

Torx Flange Screw M6 X 30

Hex Flat Head Screw M6 X 13 T30

Oil Seal

Torx Flange Screw M6 X 30

ENGINE 1203 LONG BLOCK - Call your local BRP dealership
