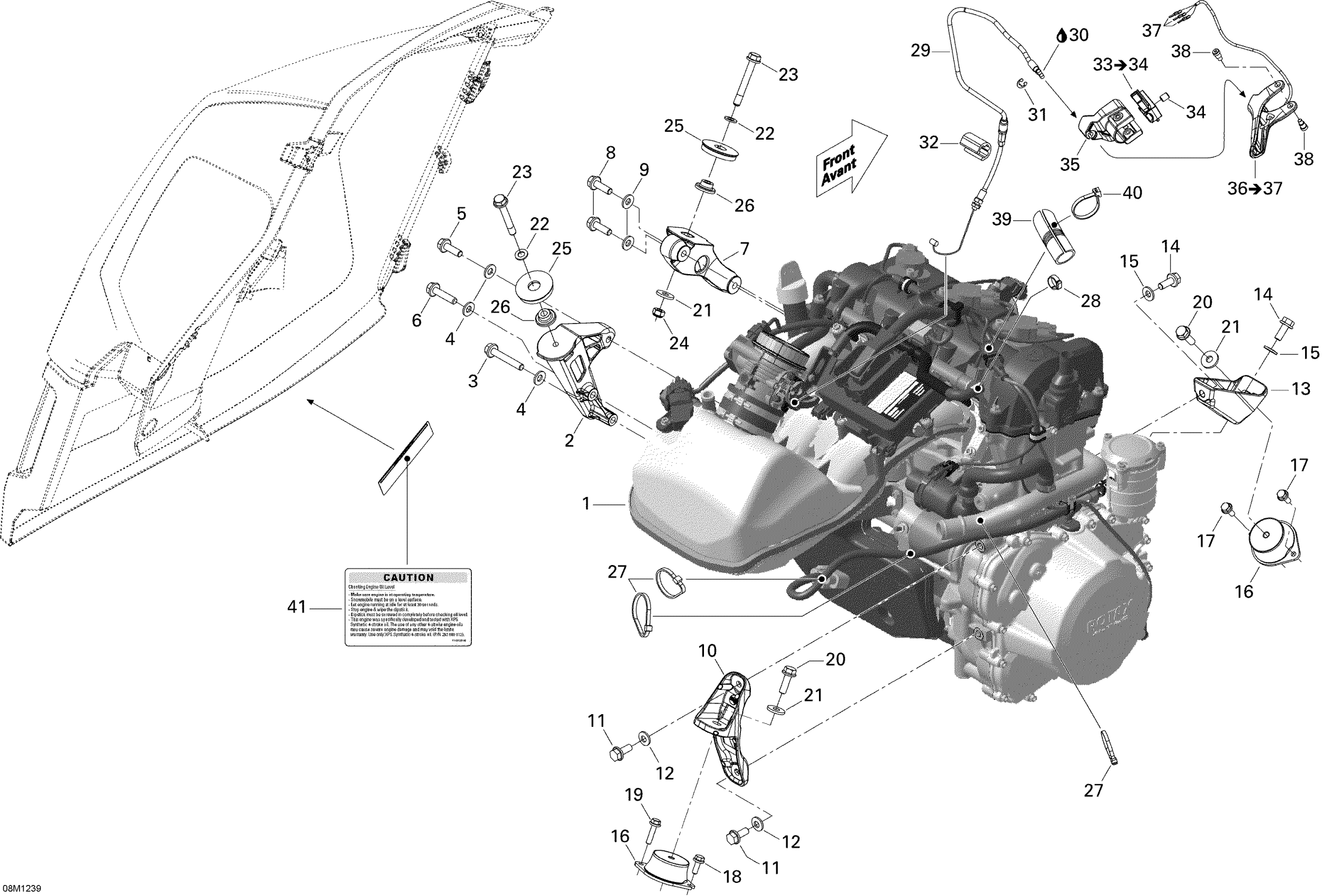

Ski-Doo Expedition LE 1200 XU, 2012 Engine And Engine Support Diagram

#

Description
Price

1

ENGINE 1203 LONG BLOCK - Call your local BRP dealership

300120303

Unavailable

2

Rear Support, PTO

512060591

$45.35

3

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.28

4

Conical Spring Washer M8

234281474

$1.25

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Front Support, PTO

512060593

$28.43

8

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

9

Conical Spring Washer M8

234281474

$1.25

10

Rear Support, MAG

512060594

$29.97

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

12

Conical Spring Washer M8

234281474

$1.25

13

Front Support, MAG

512060596

$29.97

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

15

Conical Spring Washer M8

234281474

$1.25

16

Rubber Mount

512060729

$69.97

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

21

Yellow, Washer

503183200

Unavailable

22

Flat Washer With Teflon 8 mm

250200008

Unavailable

23

Cone Screw, M8 X 30

250000257

$1.72

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Stopper This part replaces 512060244.

512061202

$18.43

26

Spacer

512060285

$17.66

27

Tie-Rap 180 mm

414115200

$0.09

28

Oetiker Gear Clamp

293650025

$2.46

29

THROTTLE CABLE - Call your local BRP dealership

512060702

Unavailable

31

Circlip

414274500

Unavailable

32

Protector

512060313

$9.31

33

Upper Housing Ass'y

512060198

Unavailable

34

Socket Set Screw M8 X 10

414440800

$4.00

35

Lower Housing

512060860

Unavailable

36

Handle Ass'y

512061250

$117.66

37

Male Terminal

515175232

$1.49

38

Flange Screw

732601143

$4.02

39

Was 409901600 Tubing 19mm

219704398

Unavailable

40

Tie-Rap 180 mm

414115200

$0.09

41

Caution Decal, Oil Level

516005521

Unavailable
