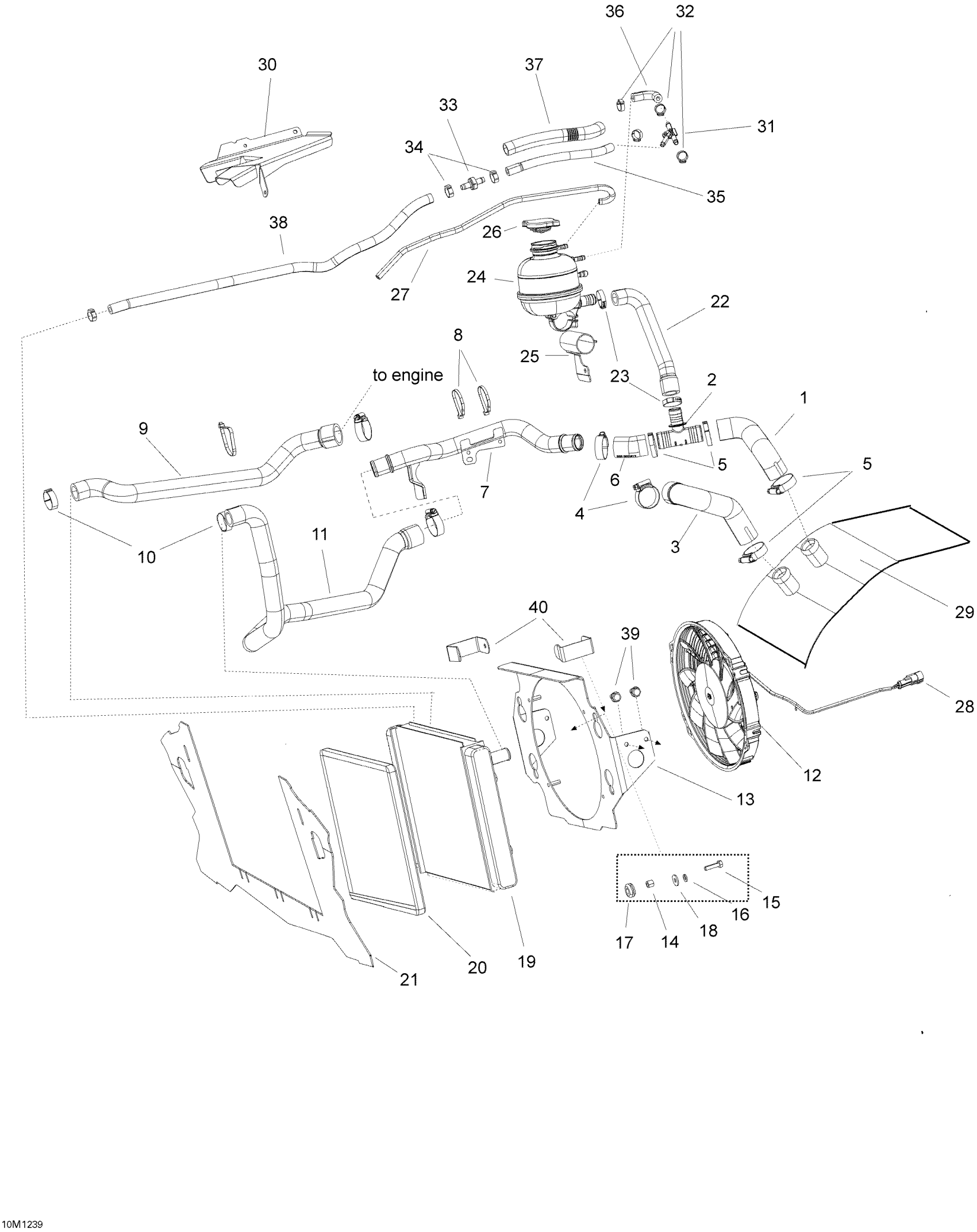

Ski-Doo Expedition LE 1200 XU, 2012 Cooling System Diagram

HOSE, T-FITTING->FRONT RADIATOR - Call your local BRP dealership

509000779

Unavailable

T-Fitting

509000372

$7.87

HOSE, THERMOSTAT (RADIATOR) - Call your local BRP dealership

509000592

Unavailable

Aba Gear Clamp, 26-38 MM

509000443

$5.68

Oetiker Gear Clamp

509000181

$3.61

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

Water Pipe Aluminum

509000724

$152.28

Tie-Rap 180 mm

414115200

$0.09

Hose, Front Radiator ( Air Engine)

509000780

$36.89

Tridon Clamp

293650016

$8.57

Hose, Front Radiator (Engine)

509000781

$25.35

Cooling Fan

509000838

$213.05

Radiator support | Includes 3340 to 3340a

509000791

$91.51

Bushing

605453745

$11.52

Hex. Screw M6 X 25

207162544

$1.05

Lock Washer M6, Black

234161471

$0.52

Grommet

709000582

$4.38

Flat Washer 6 mm

234062410

$0.64

Radiator

509000787

$214.58

Insulation

509000718

$59.20

Air Deflector

509000700

$45.35

Filling Hose

509000663

$59.97

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

Coolant Tank

509000421

$86.89

RESERVOIR SUPPORT - Call your local BRP dealership

509000809

Unavailable

Radiator Pressure Cap

509000180

$11.69

Hose 6 Mm 15000Mm Long

219704360

$104.62

Male Connector, 2 Circuits

278000220

$11.02

Radiator Tunnel

509000645

$766.12

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

Y-Fitting

293710140

$7.31

Crimp Clamp, 15.3-706R

293650047

$2.64

Check Valve

509000153

$16.89

Oetiker Clamp

293650140

$2.15

Hose-formed

509001069

$13.58

Hose

509001070

$11.52

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Was 509000407 Hose 8 mm

219704420

$40.27

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

Deflector Clip

509000703

$39.97
