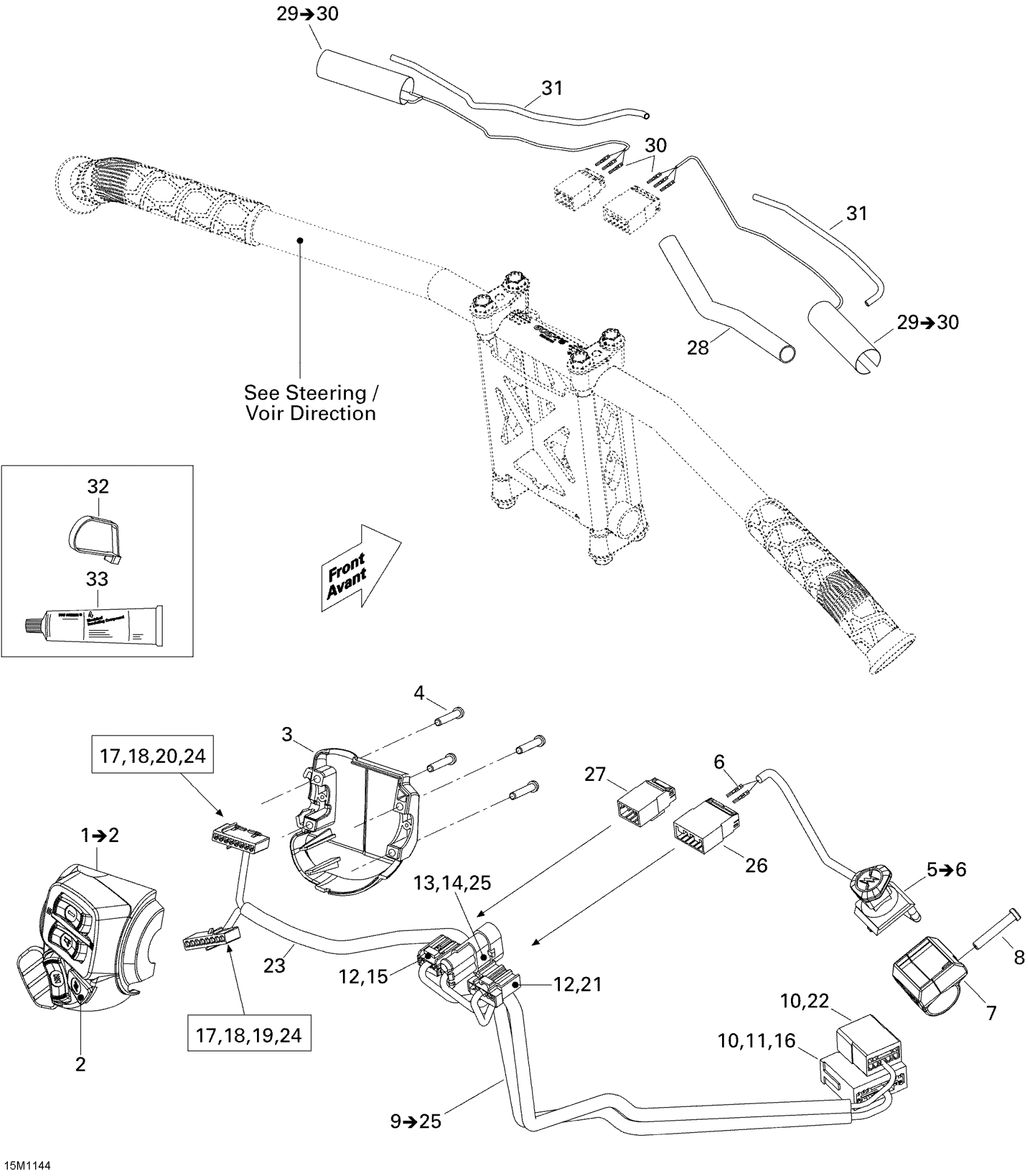

Ski-Doo Expedition LE 1200 XU, 2011 Steering Wiring Harness Diagram

#

Description
Price

1

LH Switch Housing | Includes 1 to 2

515177509

Unavailable

2

Start/RER Button

515176088

$18.43

3

Switch Housing Plate

515175926

Unavailable

4

Torx Screw #8-18

250000263

$1.02

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

6

Male Terminal

515175232

$1.49

7

Kill Switch Support

515176825

$8.60

8

Torx Screw #8-18

250000263

$1.02

9

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership

515176868

Unavailable

10

Male Terminal

515175232

$1.49

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

Unavailable

13

Housing

710000568

Unavailable

14

Wire Seal

278001013

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

17

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

18

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

19

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

20

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

21

Female Terminal Housing, 6 Circuits

515175543

$8.57

22

Male Terminal Housing, 8 Circuits

515175817

Unavailable

23

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

24

Female Terminal

515175941

$2.48

25

Male Terminal

515176164

Unavailable

26

Male Terminal Housing, 4 Circuits

515175846

$8.57

27

Male Terminal Housing, 6 Circuits

515175662

Unavailable

28

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

29

Heated Film, 25W

506152428

$37.66

30

Male Terminal

515175232

$1.49

31

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

32

Tie Wrap 94 mm | 4X4

293750001

$0.83

32

Tie Wrap 368 mm

293750008

$0.85

33

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
